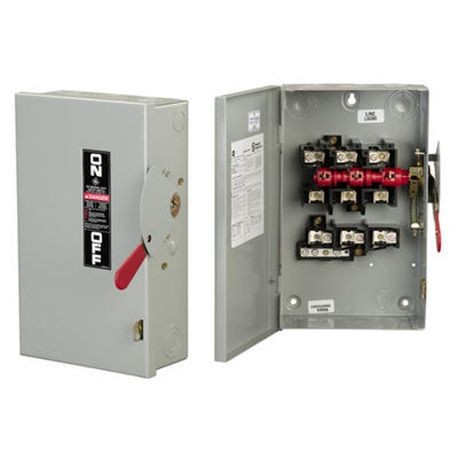

GE TG4323R SWITCH SAF 240VAC 100A 3 1 50/60HZ 4 HDL

Product Description

The GE TG4323R is a Fusible General Duty Safety Switch designed for electrical applications up to 240 volts with a maximum current rating of 100 amps. It features a quick-make, quick-break mechanism, ensuring reliable operation in residential and light commercial environments.

• Fusible switch rated for 100 amps at 240 volts AC.
• Features NEMA 3R enclosure for outdoor use.
• Meets UL standards for safety and compliance.

Product Highlights

This safety switch is suitable for service entrance equipment and is designed with a surface mount configuration.

Product Information

Standard Information

• Manufacturer: GE
• MPN: TG4323R

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 100 A
• Horsepower: 7.5 hp Standard Fuse / 15 hp Time Delay
• Number of Poles: 3
• Number of Wires: 4
• Material: Steel
• Enclosure Type: NEMA 3R
• Dimensions: 21.05 in H x 9.3 in W x 5 in D
• Frequency Rating: 50/60 Hz
• Short Circuit Current Rating: 100 kA
• Temperature Rating: 60/75 deg C
