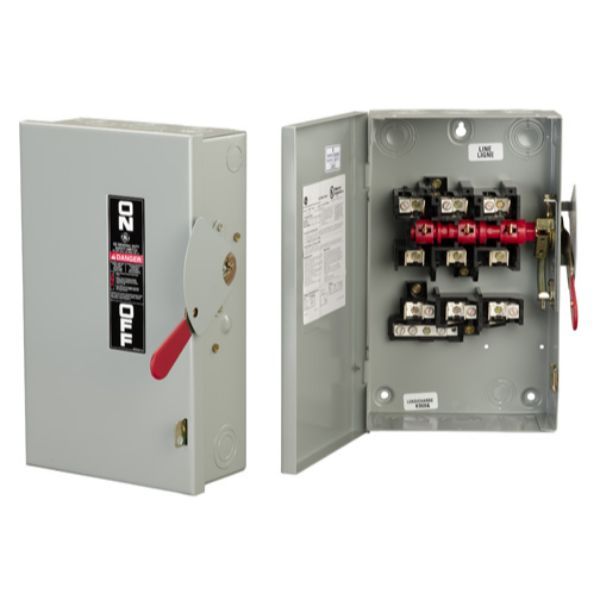

GE TG4323 SWITCH SAF 240VAC 100A 3 POLES

Product Description

GE Spec-Setter TG4323 is a fusible general duty safety switch rated for two hundred forty volts alternating current and one hundred amperes. This switch features three poles and is designed for residential and light commercial applications. It ensures safe disconnect in electrical distribution systems.

• Fusible design for reliable circuit interruption.
• Handles up to 7-1/2 horsepower with standard fuses.
• UL listed for service entrance equipment when installed as per code.

Product Highlights

Direct drive, quick-make, quick-break mechanism with visible confirmation of on/off status.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part No: TG4323

Technical Specifications

• Type: Fusible General Duty
• Amperage Rating: 100 A
• Voltage Rating: 240 VAC
• Number of Poles: 3
• Number of Wires: 4
• Frequency Rating: 50/60 Hz
• Horsepower: 7-1/2 hp Standard Fuse/15 hp Time Delay
• Material: Steel
• Enclosure Type: NEMA 1
• Temperature Rating: 60/75 deg C
• Dimensions: 21.33 in H x 9.4 in W x 4.9 in D
• Short Circuit Current Rating: 100 kA
