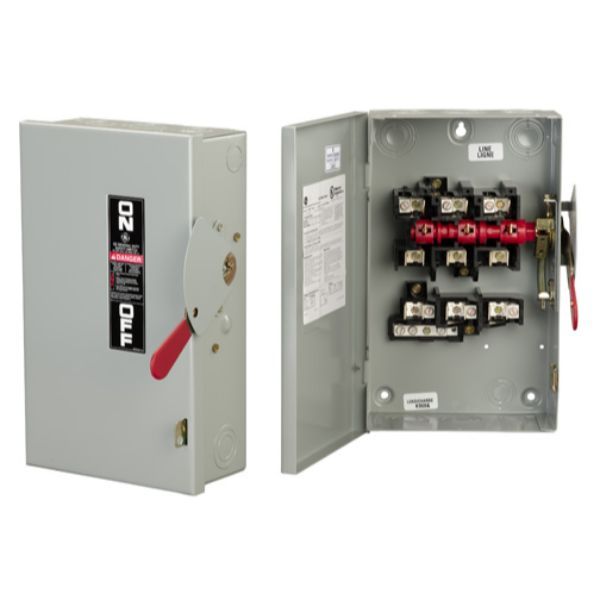

GE TG4322 SWITCH SAF 240VAC 60A 3 1 50/60HZ 4 HDL

Product Description

The GE TG4322 is a fusible general duty safety switch. It operates at 240 volts AC with a current rating of sixty amps. This switch is designed for residential and light commercial applications where the duty is not severe.

• Direct drive, quick-make, quick-break mechanism for positive on/off indication.
• Self-leveling, three-point mounting system.
• NEMA 1 enclosure suitable for indoor use.

Product Highlights

The GE TG4322 features a quick-make, quick-break mechanism which enhances safety and operation reliability. It is UL listed as service entrance equipment when installed according to code.

Product Information

Standard Information

• Manufacturer: GE
• Part Number: TG4322

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 60 A
• Horsepower: 3 HP Standard Fuse/10 HP Time Delay
• Number of Poles: 3
• Number of Wires: 4
• Enclosure Type: NEMA 1
• Frequency Rating: 50/60 Hz
• Short Circuit Current Rating: 100 kA
• Material: Steel
• Dimensions: 13.84 in H x 8.4 in W x 4 in D
