GE TG3224R SWITCH SAF 240VAC 200A 2 1 50/60HZ 3 HDL

Product Description

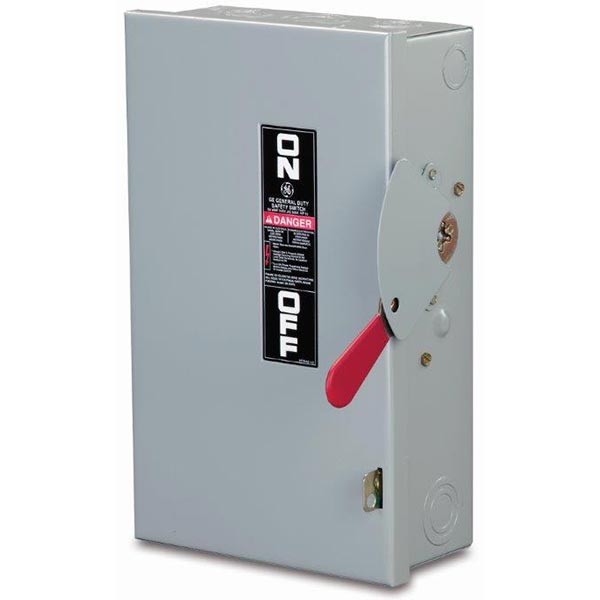

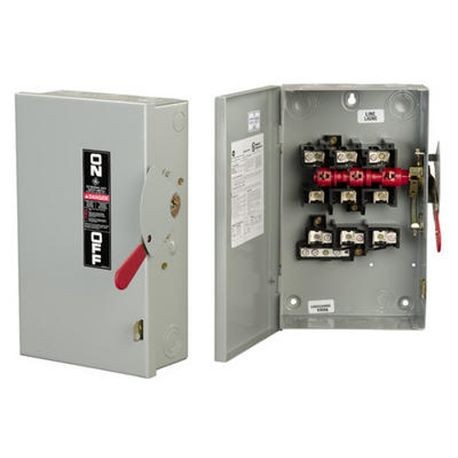

GE Spec-Setter TG3224R is a fusible general duty safety switch. It operates at two hundred amperes and is rated for two hundred forty volts AC. This switch is suitable for residential and light commercial applications. The switch features a quick-make, quick-break mechanism for reliable operation.

• Direct drive for reliable on/off indication
• Self-leveling three-point mounting
• Visible contact position confirmation

Product Highlights

This safety switch is designed to withstand the demands of typical electrical distributions while ensuring safety and compliance with established standards.

Product Information

Standard Information

• Brand: GE
• Manufacturer: ABB Electrification

Technical Specifications

• Type: Fusible General Duty
• Phase: 1
• Amperage Rating: 200 A
• Voltage Rating: 240 VAC
• Frequency Rating: 50/60 Hz
• Dimensions: 28.78 in H x 13.4 in W x 5.3 in D
• Enclosure Type: NEMA 3R
• Horsepower: 15 hp Standard Fuse/15 hp Time Delay
• Short Circuit Current Rating: 100 kA
• Temperature Rating: 60/75 deg C
