GE TG3223R SWITCH SAF 240VAC 100A 2 1 50/60HZ 3 HDL

Product Description

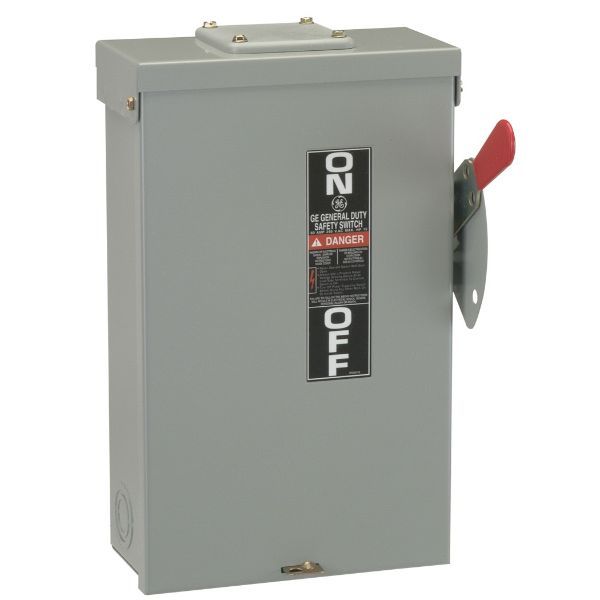

The GE Spec-Setter TG3223R is a fusible general duty safety switch rated for two hundred forty volts AC and one hundred amperes. This model serves residential and light commercial applications effectively. The switch has a NEMA three R enclosure suitable for surface mounting.

• Direct drive and quick-make, quick-break mechanism for positive ON/OFF indication.
• Self-leveling, three-point mounting system.

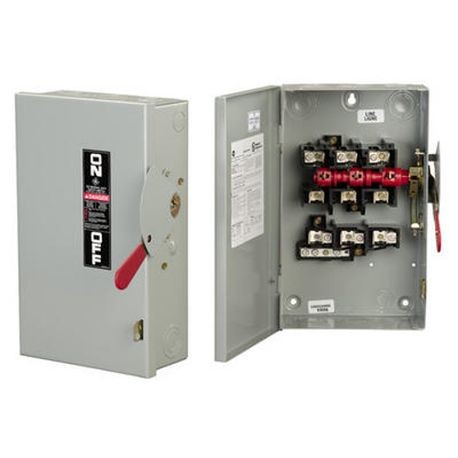

• Visible confirmation of plated blade contact positions.

Product Highlights

This safety switch meets NEMA standards and UL certifications for enclosed switches. Designed to operate efficiently under standard fuse conditions.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part No: TG3223R

Technical Specifications

• Type: Fusible General Duty
• Phase: 1
• Material: Steel
• Dimensions: 21.05 in H x 9.3 in W x 5 in D
• Horsepower: 7-1/2 hp Standard Fuse / 15 hp Time Delay
• Voltage Rating: 240 VAC
• Amperage Rating: 100 A
• Number of Poles: 2
• Number of Wires: 3
• Frequency Rating: 50/60 Hz
• Enclosure Type: NEMA 3R
• Short Circuit Current Rating: 100 kA
• Temperature Rating: 60/75 deg C
• Mounting Type: Surface
• Actuator Type: Handle
