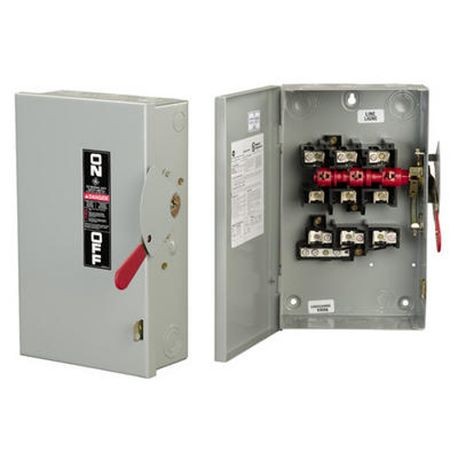

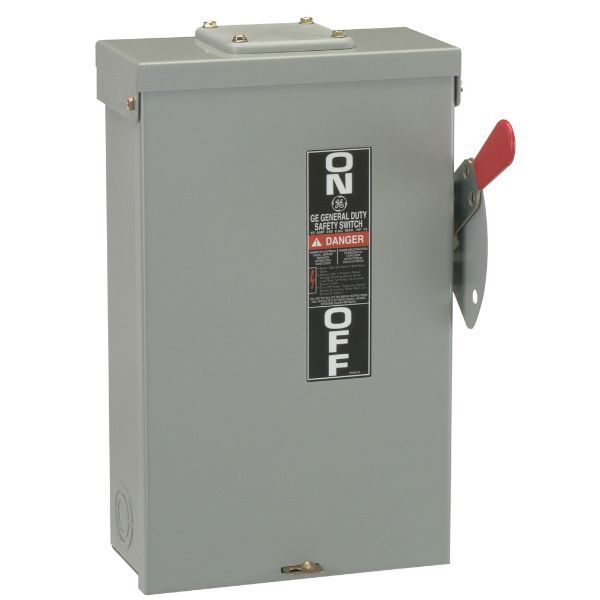

GE TG3222R SWITCH SAF 240VAC 60A 2 POLES

Product Description

GE Spec-Setter TG3222R is a fusible general duty safety switch designed for residential and light commercial applications. It operates at two poles and handles up to sixty amps at two hundred forty volts alternating current. The switch features a quick-make, quick-break mechanism providing an effective on/off indication.

• Direct drive for reliable operation.
• NEMA 3R enclosure for outdoor use.
• Suitable for various fuse types including class H, K, J, or R.

Product Highlights

This switch is ideal for electrical distribution and control applications, offering reliable safety features and easy installation.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part No: TG3222R

Technical Specifications

• Type: Fusible General Duty
• Voltage Rating: 240 VAC
• Amperage Rating: 60 A
• Number of Poles: 2
• Frequency Rating: 50/60 Hz
• Horsepower: 3 hp Standard Fuse/10 hp Time Delay
• Dimensions: 13.68 in H x 8.4 in W x 3.9 in D
• Material: Steel
• Short Circuit Current Rating: 100 kA
• Enclosure Type: NEMA 3R
• Temperature Rating: 60/75 deg C
