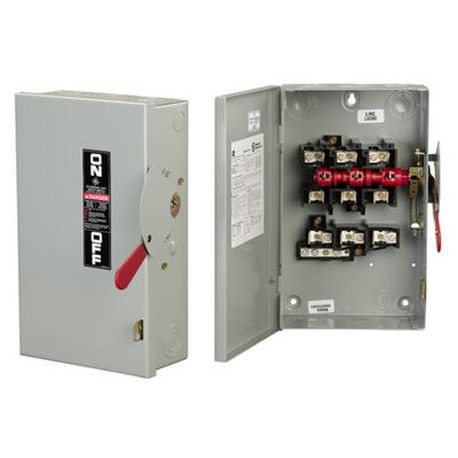

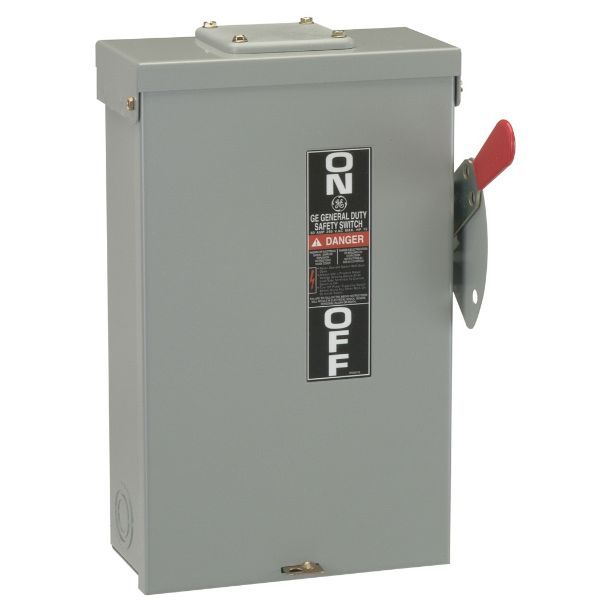

GE TG3221R SWITCH SAF 240VAC 30A 2 POLES

Product Description

The GE Spec-Setter TG3221R is a fusible general duty safety switch designed for residential and light commercial applications. This device operates at 240 VAC with a rating of 30 A and features a two-pole configuration. It includes a quick-make, quick-break mechanism for reliable operation.

• Handles short-circuit protection with a rating of 100 kA.
• Constructed with an NEMA 3R enclosure for outdoor use.
• Self-leveling, three-point mounting for easy installation.

Product Highlights

The GE TG3221R offers a combination of secure operation and versatile application. It meets various UL and CSA standards, ensuring safety and compliance.

Product Information

Standard Information

• Brand: GE
• Manufacturer: ABB Electrification

Technical Specifications

• Type: Fusible General Duty
• Voltage Rating: 240 VAC
• Amperage Rating: 30 A
• Frequency Rating: 50/60 Hz
• Horsepower: 1.5 hp Standard Fuse / 3 hp Time Delay
• Number of Poles: 2
• Dimensions: 9.78 in H x 6.4 in W x 3.3 in D
• Material: Steel
• Enclosure Type: NEMA 3R
