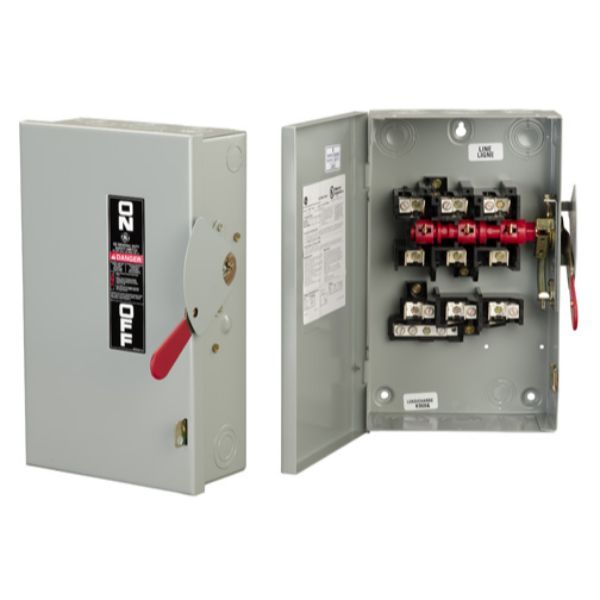

GE TG3221 SWITCH SAF 240VAC 30A 2 1 50/60HZ

Product Description

GE Spec-Setter TG3221 is a general duty fusible safety switch with a voltage rating of 240 VAC and an amperage rating of thirty A. This switch is designed for residential and light commercial applications where the duty is not severe. The unit features a handle actuator type and is compliant with NEMA 1 enclosure standards.

• Direct-drive, quick-make, quick-break mechanism for positive on/off indication
• Self-leveling, three-point mounting system
• Integral cover interlock for safety

Product Highlights

This safety switch includes features for enhanced reliability and safety in electrical control applications. Built with a spring reinforced fuse clip, it provides reliable contact for cool operation.

Product Information

Standard Information

• Brand: GE
• Manufacturer: ABB Electrification

Technical Specifications

• Type: Fusible General Duty
• Phase: 1
• Voltage Rating: 240 VAC
• Amperage Rating: 30 A
• Horsepower: 1.5 hp Standard Fuse / 3 hp Time Delay
• Number of Poles: 2
• Number of Wires: 3
• Enclosure Type: NEMA 1
• Frequency Rating: 50/60 Hz
• Short Circuit Current Rating: 100 kA
• Temperature Rating: 60/75 deg C
• Dimensions: 10.28 in H x 6.4 in W x 3.3 in D
• Weight: 4.918 lb
