Product Description

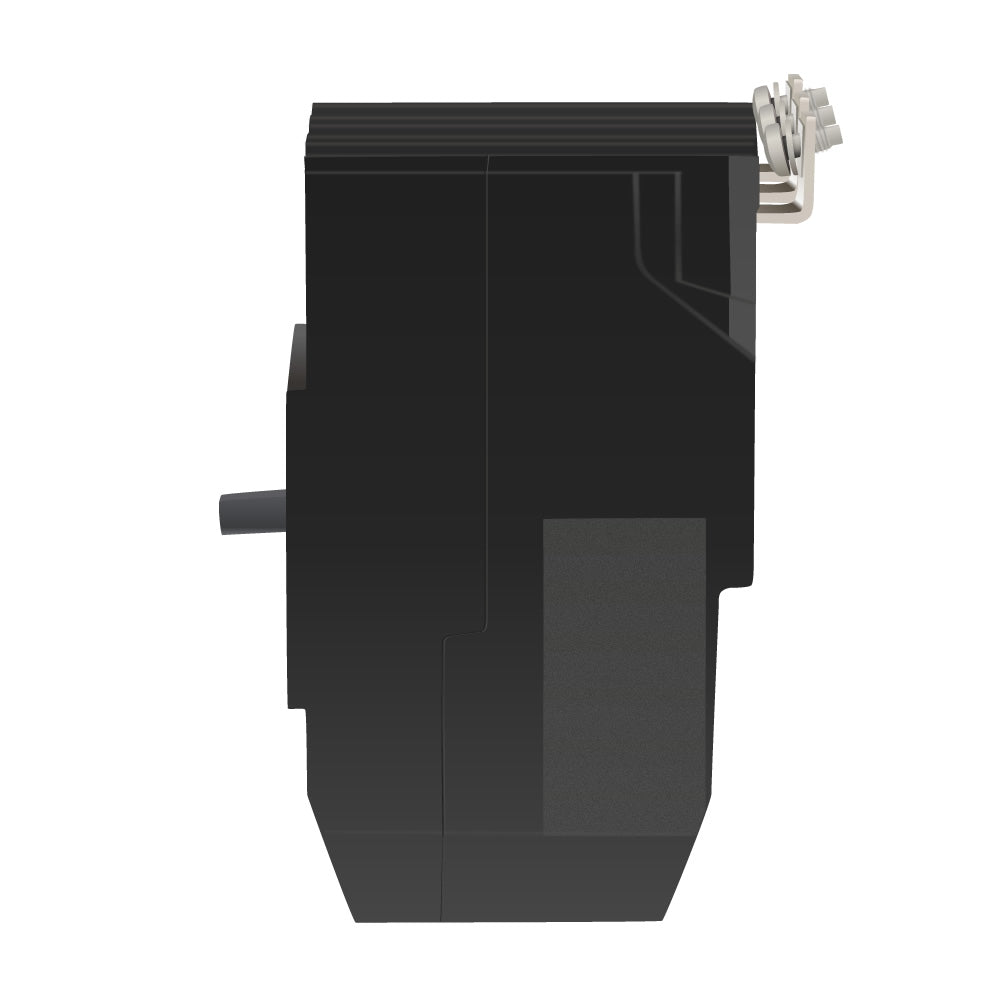

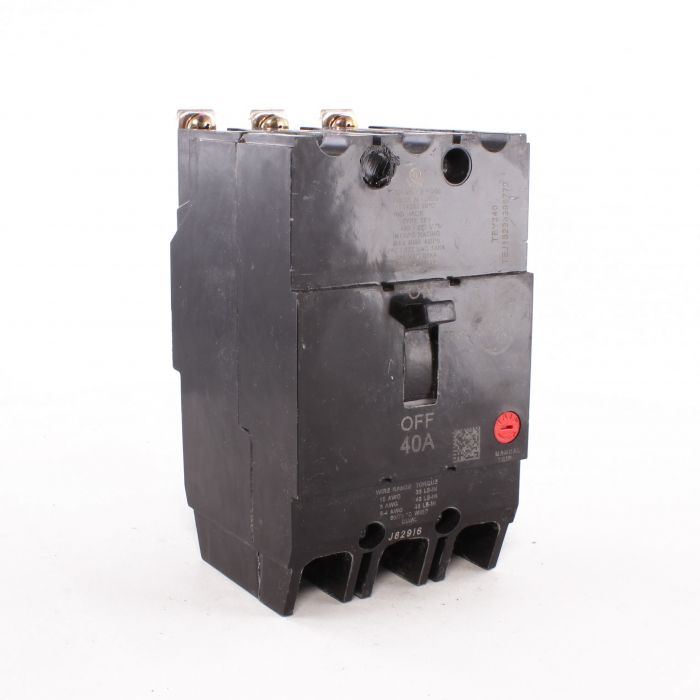

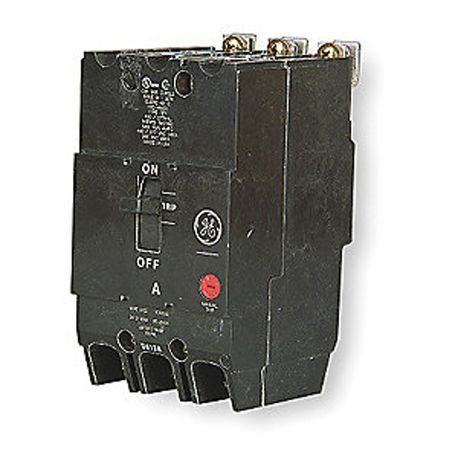

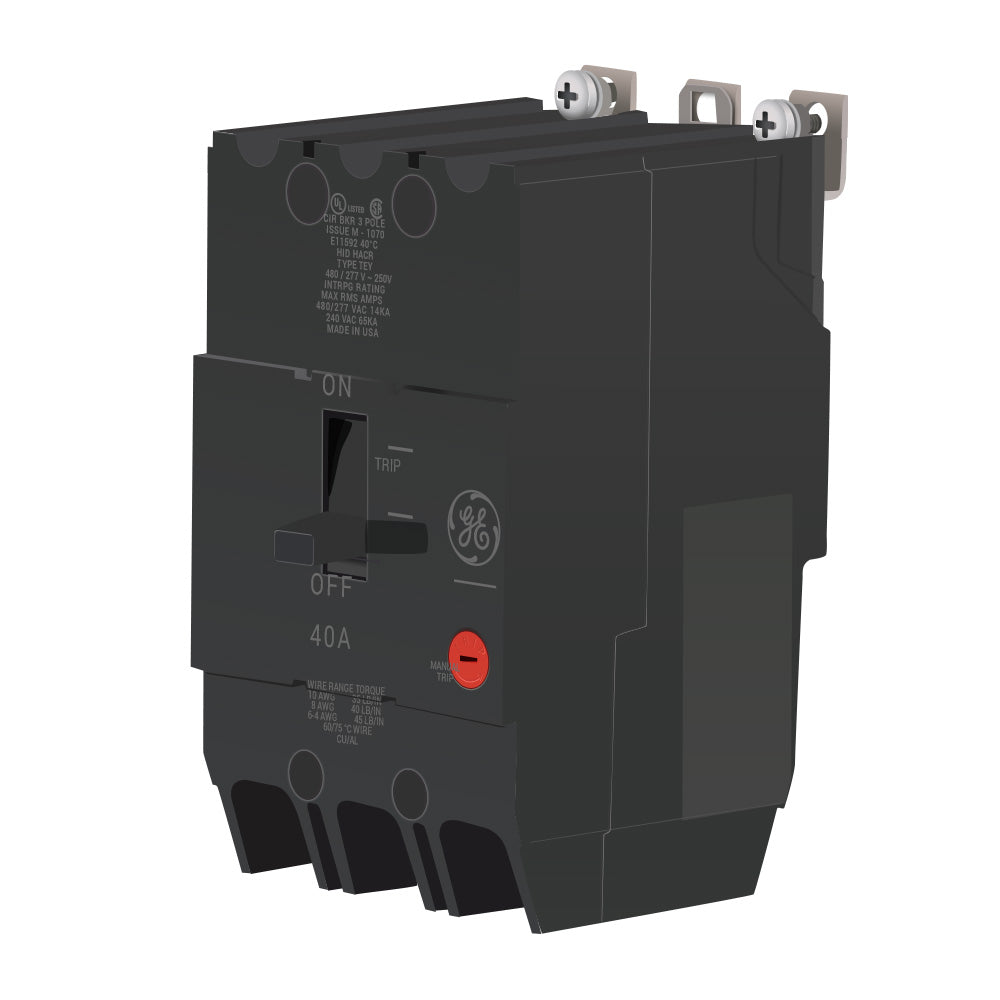

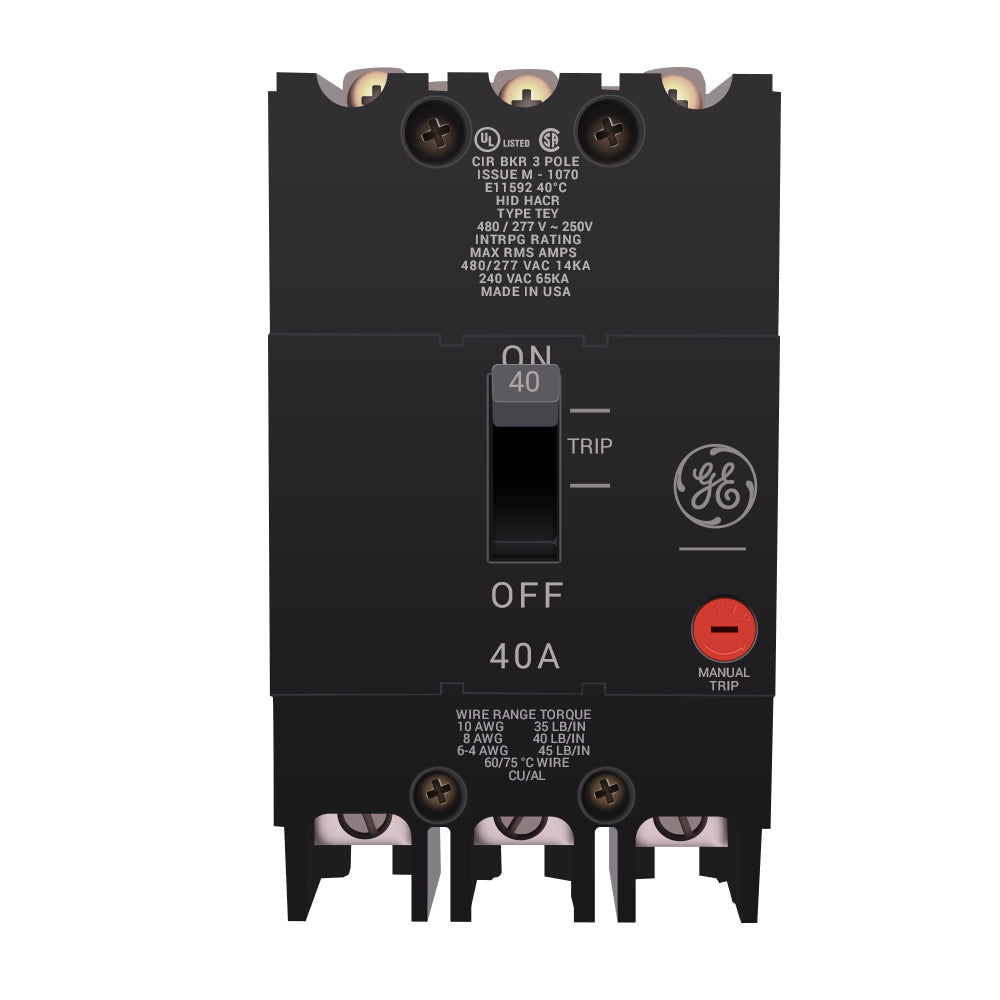

The GE TEY340 Lighting Panel Circuit Breaker, from the Q-Line® series, operates at 277/480 VAC with a 40 A current and a 14 kA interrupt rating. Featuring a TEY Frame, LI/Non-Interchangeable Trip, and 3 poles, it's designed for grounded 480Y/277 VAC systems. Includes an integral copper/aluminum load lug.
- Standard continuous current rated
- EY GO schedule
- UL listed for HID (high intensity discharge), all 50 A or less
Product Highlights
This bolt-on circuit breaker ensures safety and reliability with quick-make/quick-break mechanisms and easy trip indication. Suitable for varied applications as a lug-lug breaker.
Product Information
Standard Information
-
Brand: GE
-
Manufacturer Part Number: TEY340
Technical Specifications
-
Frame: TEY
-
Phase: 3
-
Series: Q-Line®
-
Trip Type: LI/Non-Interchangeable
-
Wire Size: 10 to 4 AWG Cu/Al
-
Manufacturer: ABB Electrification
-
Mounting Type: Bolted-On
-
Voltage Rating: 277/480 VAC
-
Amperage Rating: 40 A
-
Connection Type: Load Lug
-
Number of Poles: 3
-
Interrupt Rating: 14 kA
-
Temperature Rating: 40 deg C
-
Brand: GE
-
Model: tey model
-
MPN: TEY340
-
Amperage: 40 ampere
-
Voltage: 277/480Vac
-
Poles: 3 pole
-
Terminal: aluminum/copper load lug
-
Approval: ul
-
Type: MOLDED CASE, THERMAL MAGNETIC
-
Current Rating: 40 AMPERE
-
Terminal Type: ALUMINUM/COPPER WIRE
-
AIC Ratings: 14kA@480V
-
Family: Q-Line
-
Volt: 480
-
Category: Molded Case
-
Functions: LI - Long-Time and Instantaneous
-
Protection: Thermal Magnetic
-
Circuit breaker type: Standard
-
Breaking Capacity: 14kA
-
No of Pole: 3P
-
Rating: 40A
-
Standard & Approvals: CSA File No LR57114, GSA Compliant, UL File No E11592
-
Includes: Integral Cu/Al Load Lugs
-
Product Category: MCCB
