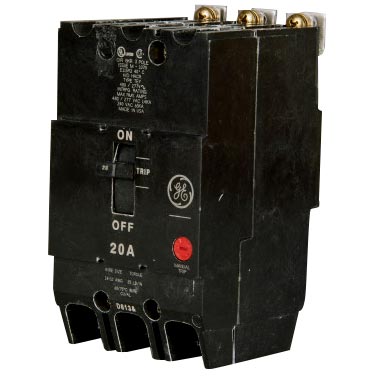

GE TEY320 Q-Line Lighting Panel Circuit Breaker 277/480 VAC 20A 14 kA TEY320

Product Description

The GE TEY320 is a Q-Line lighting panel circuit breaker designed for 277/480 VAC applications. It operates at a continuous current rating of twenty amps and has an interrupt rating of fourteen kiloamperes. This breaker is useful in electrical distribution and control applications.

• Three pole configuration
• Compact design with bolt-on mounting
• UL listed for high intensity discharge applications

Product Highlights

This circuit breaker ensures safety and reliability with features like quick-make quick-break mechanisms and a common trip bar.

Product Information

Standard Information

• Brand: GE
• Manufacturer: ABB Electrification

Technical Specifications

• Frame: TEY
• Phase: 3
• Series: Q-Line
• Trip Type: LI/Non-Interchangeable
• Amperage Rating: 20 A
• Voltage Rating: 277/480 VAC
• Interrupt Rating: 14 kA
• Dimensions: 5-1/4 inches H x 3 inches W x 3-1/16 inches D
• Wire Size: 14 to 8 kcmil, 12 to 8 kcmil
• Mounting Type: Bolt-On
• Temperature Rating: 40 deg C
