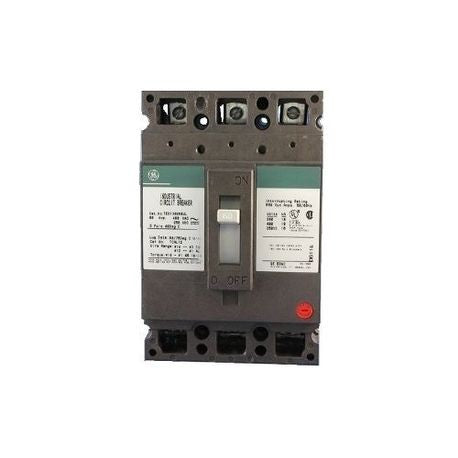

GE TED134060WL BREAKER CKT CASE MLD 480 VAC/500 VDC 60A

Product Description

The GE TED134060WL is a molded case circuit breaker designed for use in commercial electrical systems. It operates at a voltage rating of 480 VAC and 500 VDC with a current rating of sixty amps. This circuit breaker provides protection with an interrupt rating of eighteen kiloamperes for AC and ten kiloamperes for DC circuits.

• Rated for 60 Amps with multiple voltage functionality
• Thermal magnetic trip for reliable circuit protection
• Includes copper and aluminum line/load lugs

Product Highlights

This circuit breaker is suitable for various critical applications, ensuring safety in power distribution systems.

Product Information

Standard Information

• Brand: GE
• Manufacturer: ABB Electrification

Technical Specifications

• MPN: TED134060WL
• Frame: E150
• Number of Poles: 3
• Voltage Rating: 480 VAC / 500 VDC
• Amperage Rating: 60 A
• Temperature Rating: 40 deg C
• Dimensions: 6-5/16 inches H x 4-1/8 inches W x 3-3/8 inches D
• Trip Type: LI / Non-Interchangeable Thermal Magnetic
• Mounting Type: Panel
• Interrupt Rating: 18 kA AC, 10 kA DC
• Connection Type: Line/Load Lug
