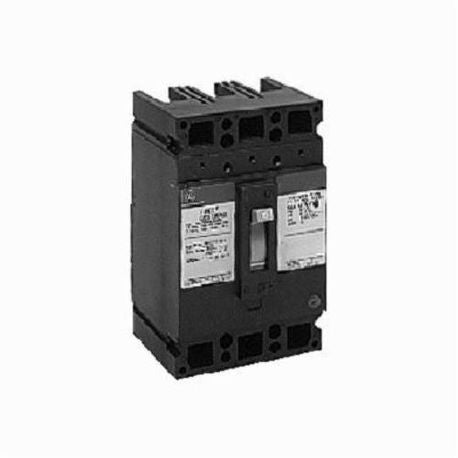

GE TED134050WL BREAKER CKT CASE MLD 480VAC 50A 18KA

Product Description

GE TED134050WL is a molded case circuit breaker suitable for use at 480 volts AC and rated for fifty amperes. The product features a thermal magnetic trip and provides an interrupt rating of eighteen kiloamperes. The structure is designed for durability and reliability in various applications.

• Molded case made from engineered plastic
• Three-pole configuration for versatile applications
• Suitable for line and load lug connections

Product Highlights

This circuit breaker is essential for protecting electrical circuits from overloads and short circuits, ensuring both safety and efficiency in electrical distribution.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part No: TED134050WL

Technical Specifications

• Type: TED Thermal Magnetic
• Voltage Rating: 480 VAC / 250 VDC
• Amperage Rating: 50 A
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 18 kA
• Number of Poles: 3
• Dimensions: 6-5/16 inches H x 4-1/8 inches W x 3-3/8 inches D
• Wire Size: 8 to 6 AWG
• Temperature Rating: 10 to 50 degrees C
• Mounting Type: Bolted-On
• Trip Type: Non-Interchangeable Thermal Magnetic
