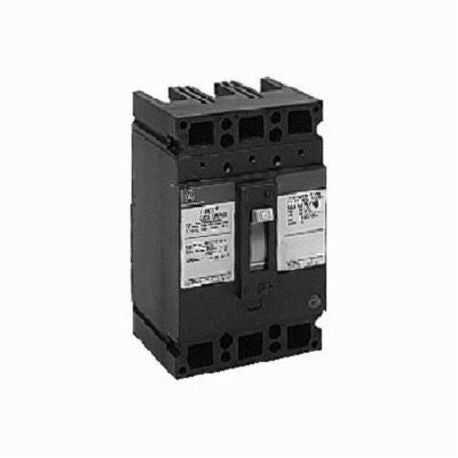

GE TED134015WL Type TED Thermal Magnetic Molded Case Circuit Breaker, 480 VAC/250 VDC, 15 A, 18/10 kA Interrupt, 3 Poles

Product Description

The GE TED134015WL Type TED Thermal Magnetic Molded Case Circuit Breaker is designed for applications requiring reliable electrical protection. This circuit breaker operates at a voltage rating of four hundred eighty VAC and two hundred fifty VDC. It is rated at fifteen amperes and has an interrupt rating of eighteen hundred ten kA, making it suitable for a variety of commercial and industrial settings.

• Built-in thermal magnetic protection
• Three-pole configuration
• Compatible with Cu/Al line and load lugs

Product Highlights

This thermal magnetic molded case circuit breaker is a critical component for managing power distribution safely and effectively.

Product Information

Standard Information

• Brand: GE
• MPN: TED134015WL

Technical Specifications

• Voltage Rating: 480 VAC / 250 VDC
• Amperage Rating: 15 A
• Connection Type: Line and Load Lug
• Number Of Poles: 3
• Interrupt Rating: 18/10 kA
• Trip Type: Long Time and Instantaneous
• Temperature Rating: 40 Deg C
• Dimensions: 6-5/16 in H x 4-1/8 in W x 3-3/8 in D
• Wire Size: 14 to 3 AWG
• Mounting Type: Bolt-On
• Standard & Approvals: UL E11592, CSA LR57114, HACR Rating
