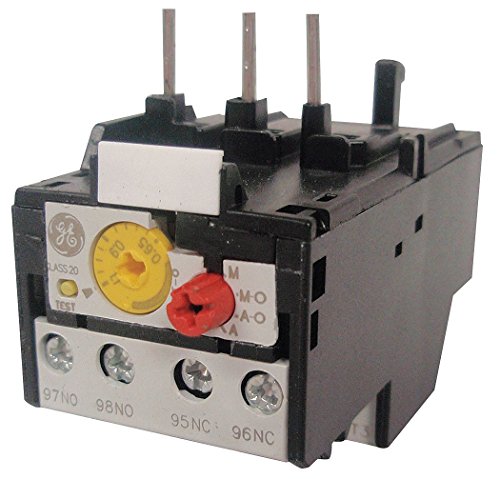

GE RT12N Overload Relay 8-12A Trip Class 20 Mfr. Series CL00, CL01, CL02 Replacement

Product Description

The GE RT12N overload relay safeguards electrical circuits from damage caused by overcurrent conditions. This relay features an 8-12A current range and is designed for industrial settings.

• 8-12A current range
• Trip class 20
• Compatible with GE Mfr. Series CL00, CL01, CL02, CL25, CL04, CL45 Contactors

Product Highlights

GE RT12N overload relay with a current range of 8-12A. Features include manual and auto reset, phase loss sensitivity, and trip indication. Suitable for use with specific GE contactors.

Product Information

Standard Information

• Brand: GE
• Model: RT12N
• Color: N/A
• Size: N/A

Technical Specifications

• Current Range: 8.0 to 12.0A
• Trip Class: 20
• Number of Poles: 3
• Body Height: 3.83 inches
• Body Width: 1.77 inches
• Body Depth: 2.08 inches
• Frame/Series/Class/Code: Series RT, Class 20
• Reset Type: Auto, Manual
• Sensing Method: Bimetallic
• Standards: UL, CSA, IEC
