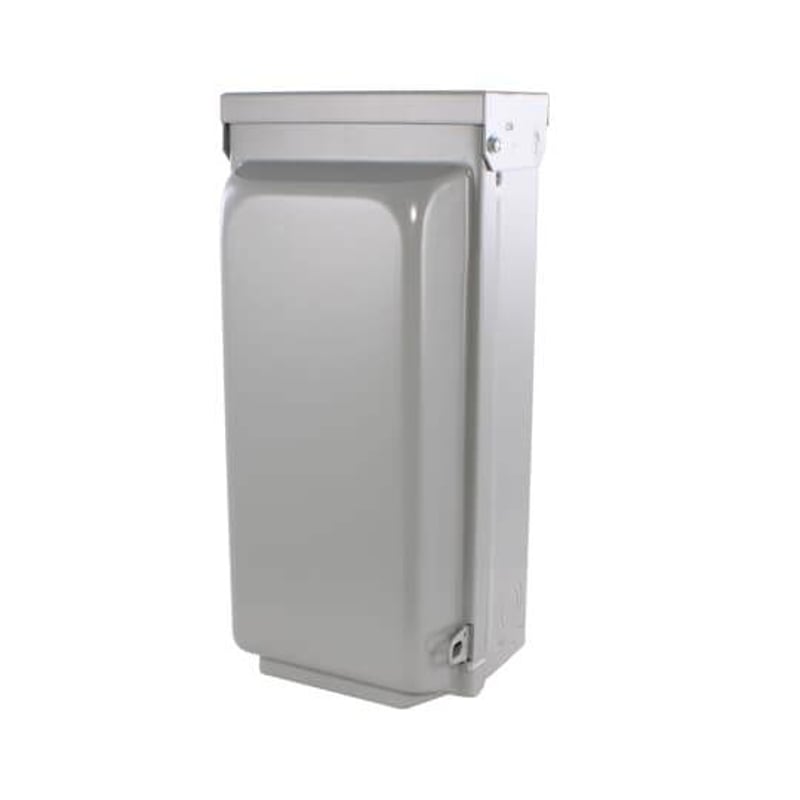

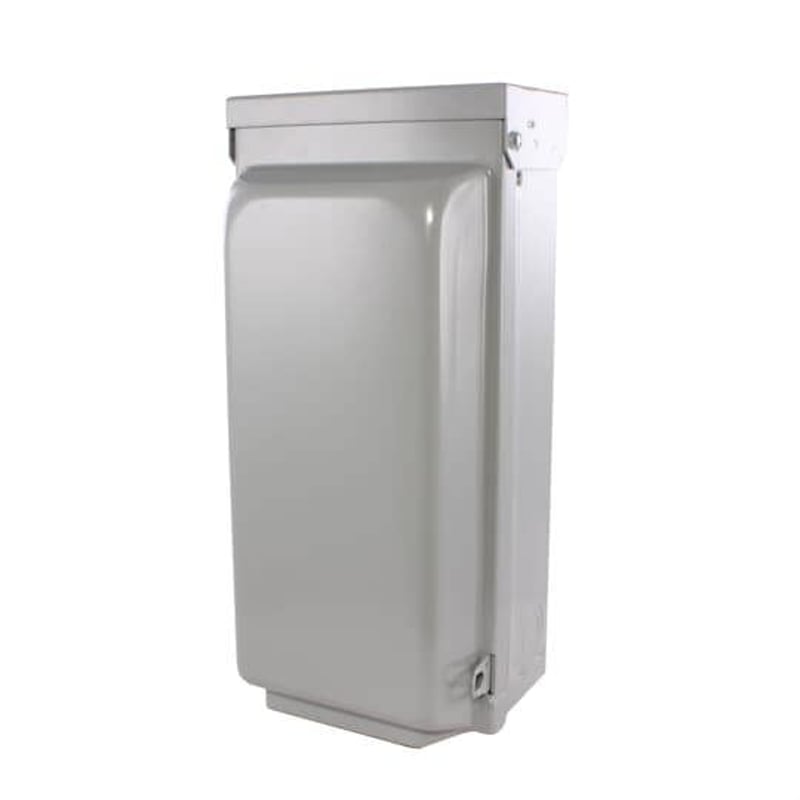

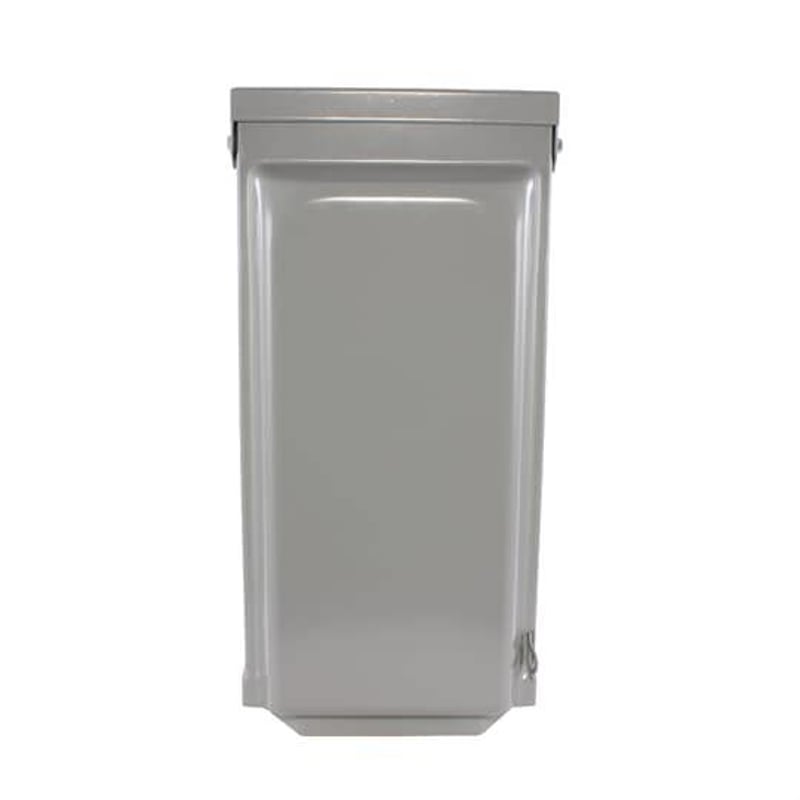

GE PLM2412R 125 Amp, 24 Circuit, Plug-On Neutral Main Lug Load Center, 120/240 Volt, Single-Phase

Product Description

The GE PLM2412R is a 125 amp, 24 circuit plug-on neutral main lug load center designed for residential and commercial use. This load center comes with the option to add a main circuit breaker in the field, providing flexibility and convenience for electrical installations.

• Supports up to 125 amperes of electricity
• Holds space for 24 single pole circuit breakers
• Durably constructed with a gray NEMA 3R enclosure for outdoor use

Product Highlights

The PLM2412R load center features copper bus bars and complies with electrical code standards, making it suitable for service entrance applications.

Product Information

Standard Information

• Brand: GE
• Model Number: PLM2412R

Technical Specifications

• Amperage: 125 amperes
• Circuit Capacity: 24 circuits
• Voltage Rating: 120/240 volts
• Enclosure Type: NEMA 3R
• Bus Rating: 125 amperes
• Temperature Rating: 60/75 degrees Celsius
• Phase: 1 Phase
• Wiring Configuration: 3 Wire
