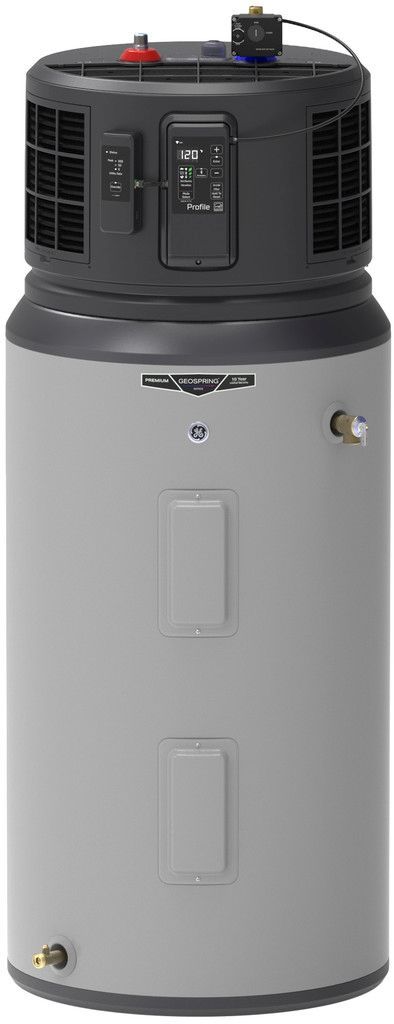

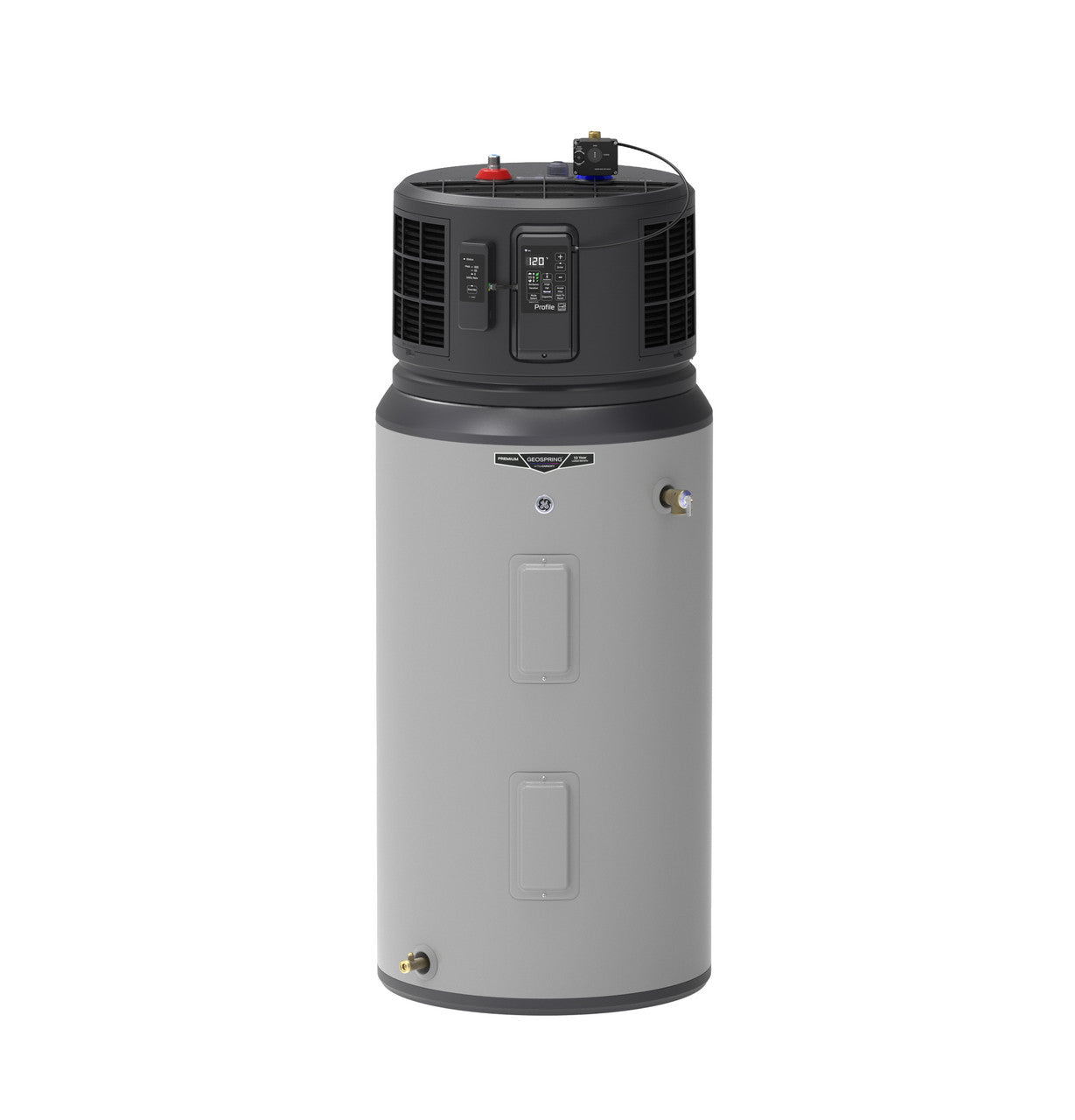

GE PH65S10BPY GEOSPRING Smart Hybrid Heat Pump Water Heater 65-gallon 240V FlexCapacity

Product Description

The GENERAL ELECTRIC PH65S10BPY GEOSPRING heat pump water heater converts ambient air into water-heating energy, delivering up to 4.7x more efficiency than standard models. FlexCAPACITY's electronic mixing valve delivers precise temperature control. Built-in WiFi and the SmartHQ app let you monitor, control, and adjust your smart heat pump water heater. The wireless water sensor detects leaks and sends instant alerts via the SmartHQ app.

• Up to 4.7x More Energy Efficiency
• FlexCAPACITY delivers precise temperature control
• Built-in WiFi and SmartHQ app for monitoring and control

Product Highlights

The GEOSPRING heat pump water heater provides efficient water heating with smart features, leak detection, and flexible operation modes for optimal home energy usage.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: PH65S10BPY

Technical Specifications

• Color Appearance: Gray
• Installation: Free-Standing
• Unit Capacity: 65 Gallons
• Operating Sound Level: 41 dBA
• Anode Rod: Sensing
• Magnesium: Yes
• Connected Capabilities: Amazon Alexa, Google Home
• Control Type: Electronic, LED
• Service Diagnostics Integrated: Yes
• Demand Response Capable: Yes
• Diagnostic Feedback: Filter, Lock, Standard Electric
• Drain Valve: Left Side
• Drain Valve Type: Brass
• Electronic, Integrated Mixing Valve: Yes
• Fuel Type: Electric
• Operating Modes: Hybrid (Default Mode), Heat Pump, High Demand/Boost, Standard Electric
• Product Type: Electric Heat Pump
• Renewable Air Filter: Top of Unit
• Sensor: Leak Sensor Included (SPLK10N01A)
• Temp & Pressure Relief Valve: Right Side
• Temperature Setting: 100-140° F Range
• Temperature Setting Factory Default: 120° F
• Water Connection Location: Top
• WiFi Connect: Built-In
• Electrical Circuit Required: 240/208VAC 30A, 60Hz
• Electrical Consumption - Lower Element: 3600W
• Electrical Consumption - Upper Element: 5500W
• Energy Consumption (kWh/year): 1154
• First Hour Rate (FHR): 87 Gallons
• Hertz: 60
• Operating Water Pressure: 20-125 PSI (30-80 PSI recommended)
• Voltage (MAX): 240 V
• Volts/Hertz: 240V; 60Hz
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Overall Depth: 27 in
• Overall Height: 67.125 in
• Overall Width: 27 in
• Product Diameter: 27 in
• Product Height (to top of unit): 65.25 in
• Product Height (to top of water inlet/outlet connections): 67.125 in
• Rated Nominal Volume (Gallons): 65
• DOE Rated Storage Volume (Gallons): 65
• Energy Star: Yes
• Connectivity: Built-In WiFi
• Height (Floor To Top of Heater - in.): 65.25
• Jacket Diameter (in.): 27
• Element Watts: 5500W (Upper); 3600W (Lower)
• First Hour Delivery Rating (Gal.): 87
• Voltage: 208/240
• Circuit Breaker Size (Amps): 30
• Width (in.): 27
• Depth (in.): 27
• Height (in.): 67.13
• Tank Capacity: 65
• Capacity (gal.): 65
• Frequency: 60
• Outdoor Approved: No
• ADA Compliant: No
• Smart Compatible: Yes
• Wifi Capable: Yes
• Amp: 30
• Collection: GeoSpring™
• Water Heater Type: Heat Pump
• Water Heater Profile: Tall
• Water Heater Features: Leak Detection, Digital Display, Energy Use Tracking, Vacation Mode, Temp Pressure Relief Valve
• Product Weight (lbs.): 269
• Net Weight: 269 lb
