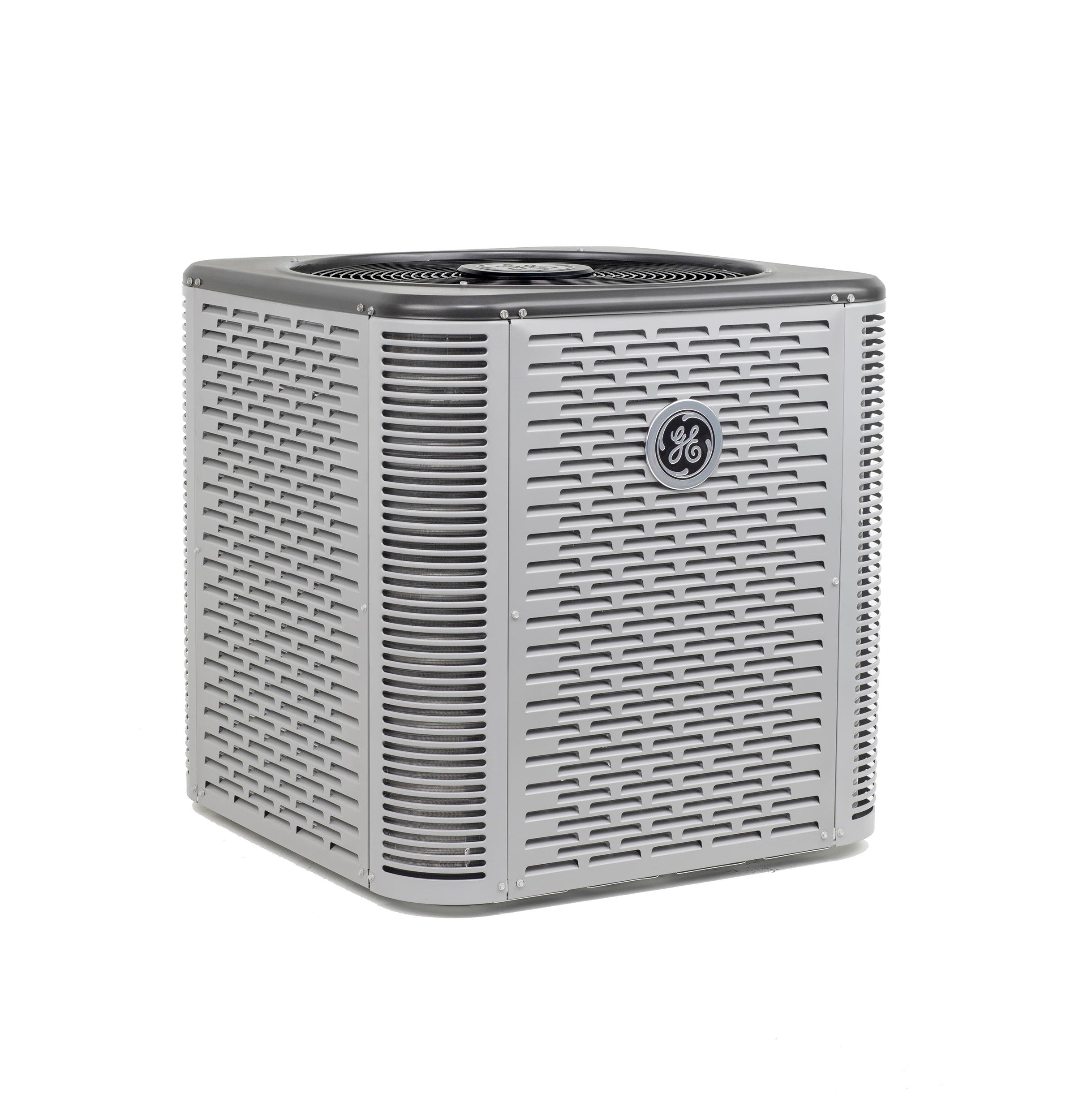

Ge NS15A36SA5 3 Ton 15 SEER2 Single Stage Ac R454B

Product Description

The GENERAL ELECTRIC NS15A36SA5 is a 3-ton, single-stage residential split-system air conditioner rated at 15 SEER2. It operates on R454B refrigerant, reflecting current EPA low-GWP requirements for new HVAC equipment. Designed for North-only installation, this unit is not approved for sale or installation in southern states governed by the DOE regional efficiency standards requiring higher minimum SEER2 ratings. Licensed HVAC technicians handle the refrigerant handling, line-set connection, and commissioning required for proper startup.

This condensing unit fits standard split-system configurations in residential and light-commercial applications across northern climate zones. Single-stage operation delivers consistent cooling capacity at full load, making it a straightforward replacement or new-installation option where variable-stage equipment is not required. The R454B refrigerant charge is factory-installed. Coordinate with a matched indoor coil and air handler rated for R454B to complete the system.

Key Features

• 3-ton nominal cooling capacity for residential and light-commercial use
• 15 SEER2 efficiency rating meets current DOE North region minimum standards
• Single-stage operation for straightforward system design and service
• Factory-charged with R454B low-GWP refrigerant
• North-only distribution — not approved for sale in southern DOE efficiency regions

Compatibility

Designed for use as an outdoor condensing unit in a split-system configuration with a matched R454B-compatible indoor coil and air handler. North-only installation applies per DOE regional efficiency regulations.

Installation Notes

Installation must be performed by a licensed HVAC technician with EPA Section 608 certification for handling A2L refrigerants including R454B. Follow all local mechanical codes and the manufacturer installation instructions for line-set sizing, electrical disconnect requirements, and clearance dimensions. De-energize the unit at the disconnect and confirm zero voltage before any service work. Do not mix refrigerant types or attempt to retrofit this unit with a refrigerant other than R454B.

Technical Specifications

• Tonnage: 3 ton
• SEER2 Rating: 15 SEER2
• Stage: Single stage
• Refrigerant: R454B
• Installation Region: North only
• UPC: 66255160573

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: NS15A36SA5
