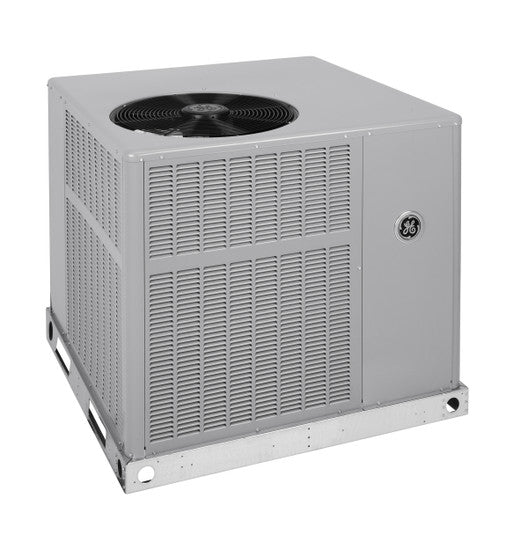

Ge NP16G48V108 Gas Packaged Unit 4 Ton 108000 Btu/h 16 Seer

Product Description

The GENERAL ELECTRIC NP16G48V108 is a 4-ton gas packaged unit rated at 108,000 BTU/h with a 16 SEER efficiency rating. Packaged units combine the heating and cooling components into a single outdoor cabinet, simplifying rooftop or ground-level installations where indoor air handling space is limited. This unit is suited for light commercial and larger residential applications where a high-capacity, self-contained HVAC solution is required. The unit ships at 526 pounds and measures approximately 47.66 inches wide, 47.66 inches in length, and 44.9 inches in height, making dimensional verification and equipment rigging planning essential before installation begins.

The NP16G48V108 is designed for applications requiring a single-package gas-electric system. This includes rooftop installations on small commercial buildings, retail spaces, and large residential structures where ductwork connects directly to the unit curb. The 108,000 BTU/h heating capacity and 4-ton cooling capacity make it appropriate for zones with significant heating and cooling loads. A licensed HVAC contractor should evaluate the structure, duct system, and utility connections before specifying this unit for an application.

Key Features

• 4-ton cooling capacity for high-demand residential and light commercial zones
• 108,000 BTU/h gas heating output in a self-contained cabinet
• 16 SEER efficiency rating reduces operating energy consumption
• Single-package design eliminates the need for a separate indoor air handler or furnace
• Compact footprint at 47.66 inches wide and 47.66 inches in length supports standard equipment curb mounting

Compatibility

Designed as an OEM gas-electric packaged unit replacement or new installation for rooftop and ground-level ducted HVAC applications requiring 4-ton cooling and 108,000 BTU/h gas heating capacity.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer guidelines. Disconnect all electrical power and shut off the gas supply before beginning any service or connection work. Rigging and placement of the unit requires planning for the 526-pound shipping weight, appropriate lifting equipment, and a properly rated equipment curb or pad. Gas piping connections must comply with the International Fuel Gas Code (IFGC) and all applicable local amendments.

Technical Specifications

• Cooling Capacity: 4 tons
• Heating Capacity: 108,000 BTU/h
• SEER: 16
• Unit Type: Gas-Electric Packaged Unit
• Width: 47.66 inches
• Length: 47.66 inches
• Height: 44.9 inches
• Weight: 526 pounds

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: NP16G48V108
