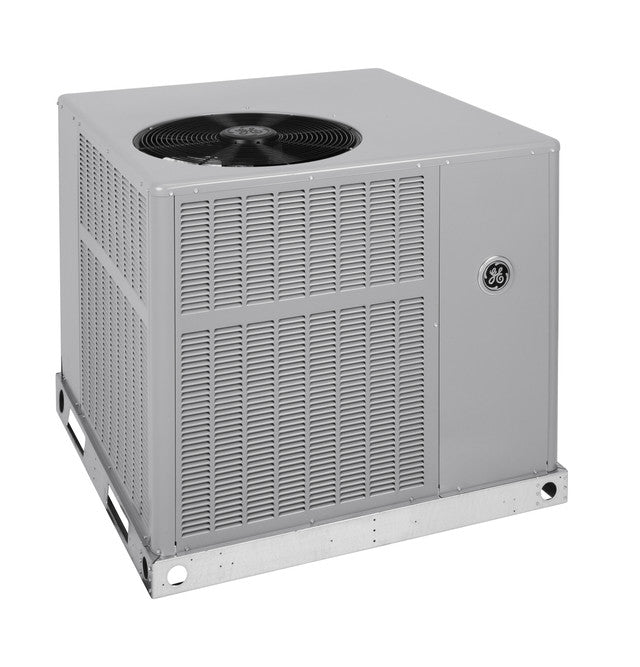

Ge np14g36s090 Gas Packaged Unit 3 Ton 90K Btu 14 Seer

Product Description

The GENERAL ELECTRIC np14g36s090 is a 3-ton, 14 SEER gas packaged unit rated at 90,000 BTU/h heating output with an 81% AFUE single-stage gas furnace section. This self-contained unit combines cooling and gas heating in one cabinet, eliminating the need for a separate indoor air handler or furnace. It delivers horizontal airflow, making it well suited for rooftop curb mounts or ground-level side-discharge installations. The unit is designed for straightforward field servicing with Insta-Position Technology and supports zero-clearance placement. Licensed HVAC technicians handle installation and commissioning of this equipment.

The np14g36s090 targets residential and light-commercial applications where a single rooftop or ground-set packaged unit replaces separate split-system components. Horizontal airflow discharge suits structures with ductwork running through a crawlspace or soffit, as well as standard rooftop curb configurations. The gray cabinet finish is typical for exterior-exposed installations. Single-stage heating keeps controls and service diagnostics straightforward for technicians familiar with packaged gas-electric equipment.

Key Features

• 14 SEER cooling efficiency with 3-ton capacity for residential and light-commercial use
• 90,000 BTU/h single-stage gas heat section at 81% AFUE
• Horizontal airflow configuration for rooftop curb or side-discharge ground-set installs
• Insta-Position Technology supports zero-clearance cabinet placement
• Gray exterior cabinet finish rated for outdoor exposure
• Limited 10-year entire appliance warranty available with registration; limited 5-year without

Compatibility

Designed as an OEM-style gas packaged unit replacement or new installation for residential and light-commercial structures requiring combined gas heating and electric cooling in a single horizontal-airflow cabinet.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer written installation instructions. Disconnect and lock out all electrical power and shut off the gas supply before connecting or servicing any components. Rooftop applications require a properly sized curb adapter; verify duct dimensions and structural load ratings before setting the unit. Gas line connections must conform to IFGC requirements and be leak-tested before system startup.

Technical Specifications

• Product Type: Gas Packaged Unit
• Cooling Capacity: 3 Ton
• SEER: 14
• Heating Capacity: 90,000 BTU/h
• AFUE: 0.81 (81%)
• Heating Stages: Single-Stage
• Airflow Direction: Horizontal
• Color: Gray
• Overall Width: 47.66 inches
• Overall Depth: 47.66 inches
• Overall Height: 40.9 inches
• Net Weight: 378 pounds
• Approximate Shipping Weight: 388 pounds
• Parts Warranty: Limited 5-year entire appliance; limited 10-year entire appliance with registration
• Labor Warranty: No Warranty

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: np14g36s090
