Ge np14g30s072 Gas Packaged Unit 2.5 Ton 14 Seer 72K Btu

Product Description

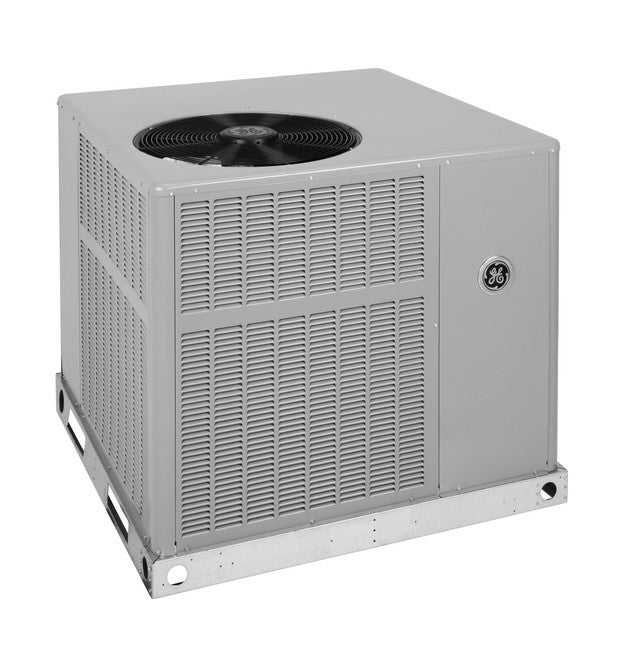

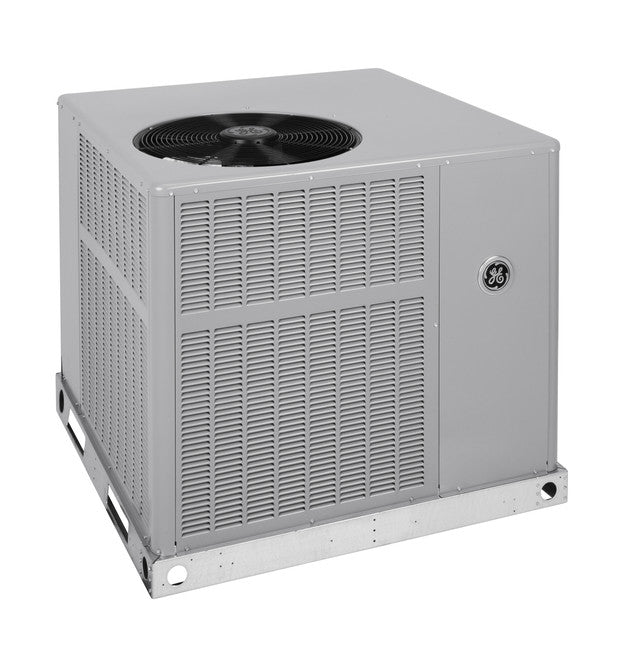

The GENERAL ELECTRIC np14g30s072 is a 2.5-ton, 14 SEER gas packaged unit designed for residential and light-commercial rooftop or ground-level installation. This self-contained system delivers 72,000 BTU/h of heating capacity at 0.81 AFUE and handles both cooling and gas heating in a single cabinet. Airflow is configured horizontally, making it suited for slab or rooftop curb applications where duct connections exit from the side. Licensed HVAC technicians install and commission this unit. The gray cabinet, Insta-Position design, and zero-clearance capability simplify rough-in and service access in tight mechanical spaces.

This packaged unit is used in residential and small-commercial applications where a split system is impractical or space is limited. Horizontal airflow suits installations with side-exit ductwork, common in rooftop curb-mount configurations. Single-stage gas heating keeps the control sequence straightforward and compatible with standard thermostat wiring. The unit is engineered for easy field servicing, with component layout intended to reduce diagnostic and replacement time on service calls.

Key Features

• 14 SEER cooling efficiency for baseline energy compliance in most U.S. climate zones
• 72,000 BTU/h heating output with 0.81 AFUE single-stage gas valve
• Horizontal airflow configuration for rooftop curb or slab side-duct installations
• Zero-clearance cabinet design allows installation in confined equipment spaces
• Insta-Position technology supports flexible field orientation during install
• Limited 10-year parts warranty on the entire appliance with product registration

Compatibility

Designed as an OEM gas packaged unit replacement or new installation for residential and light-commercial horizontal-airflow applications requiring a 2.5-ton, 14 SEER, single-stage system with a matching rooftop curb or slab pad footprint.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer written installation instructions. Shut off all electrical power and close the gas supply valve before making any connections or performing service. The refrigerant circuit is factory-charged; do not attempt to add or recover refrigerant without proper EPA Section 608 certification and recovery equipment. Verify duct static pressure and gas supply pressure are within the equipment design range before commissioning.

Technical Specifications

• Tonnage: 2.5 tons
• Cooling Capacity: 72,000 BTU/h
• SEER: 14
• AFUE: 0.81
• Heating Stages: Single-Stage
• Airflow Direction: Horizontal
• Color: Gray
• Overall Width: 47.66 inches
• Overall Depth: 47.66 inches
• Overall Height: 40.9 inches
• Net Weight: 354 pounds
• Approximate Shipping Weight: 364 pounds
• Parts Warranty: Limited 5-year entire appliance; limited 10-year entire appliance with registration
• Labor Warranty: No Warranty

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: np14g30s072
