GE Industrial Solutions CR463L40AJA10A0 Lighting Contact 30A

Product Description

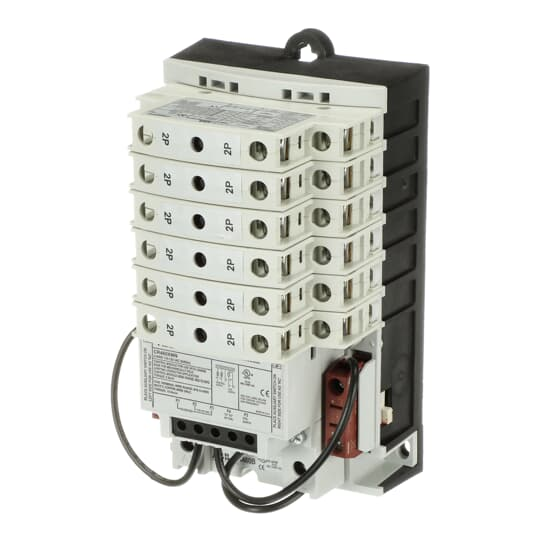

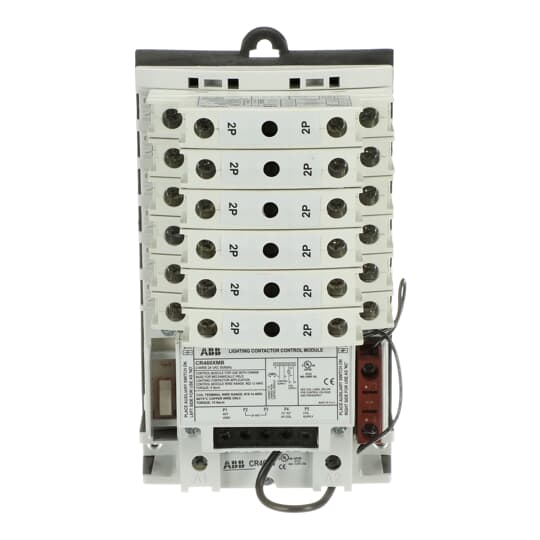

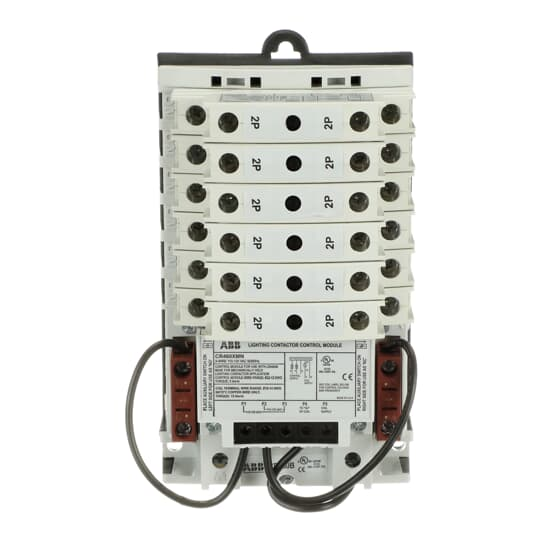

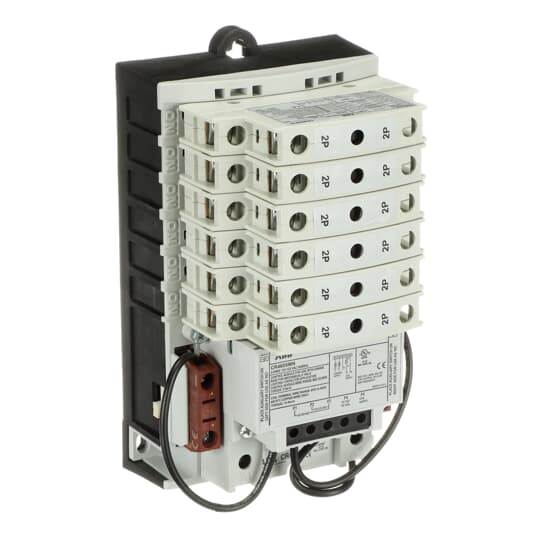

The GE Industrial Solutions CR463L40AJA10A0 is an electrically held lighting contact with a 30A rating. This versatile contactor supports configurations from two to twelve poles, allowing various circuit combinations. Contact position indication is provided, signaling when the button protrudes that the contact is closed.

• 30A rating with options for single or double poles.
• Convenient side access for power wiring.
• Quick change from normally open to normally closed contacts.

Product Highlights

This contactor is ideal for electrical distribution and control applications. It features robust terminals, easy access for wiring, and reliable operation.

Product Information

Standard Information

• Brand: GE Industrial Solutions
• Manufacturer: GE Industrial Systems

Technical Specifications

• GTiN: 00783166620816
• Type: NEMA Contactors
• Coil Voltage: 110 V
• Applications: Electrical distribution and control
• Auxiliary Contact Rating: A600, suitable down to 12V, 5mA
• Power Poles Rated: 30A rated contacts
• Mounting Type: Three-point mounting
• Power Terminal Safety: Finger and back-of-hand safe
