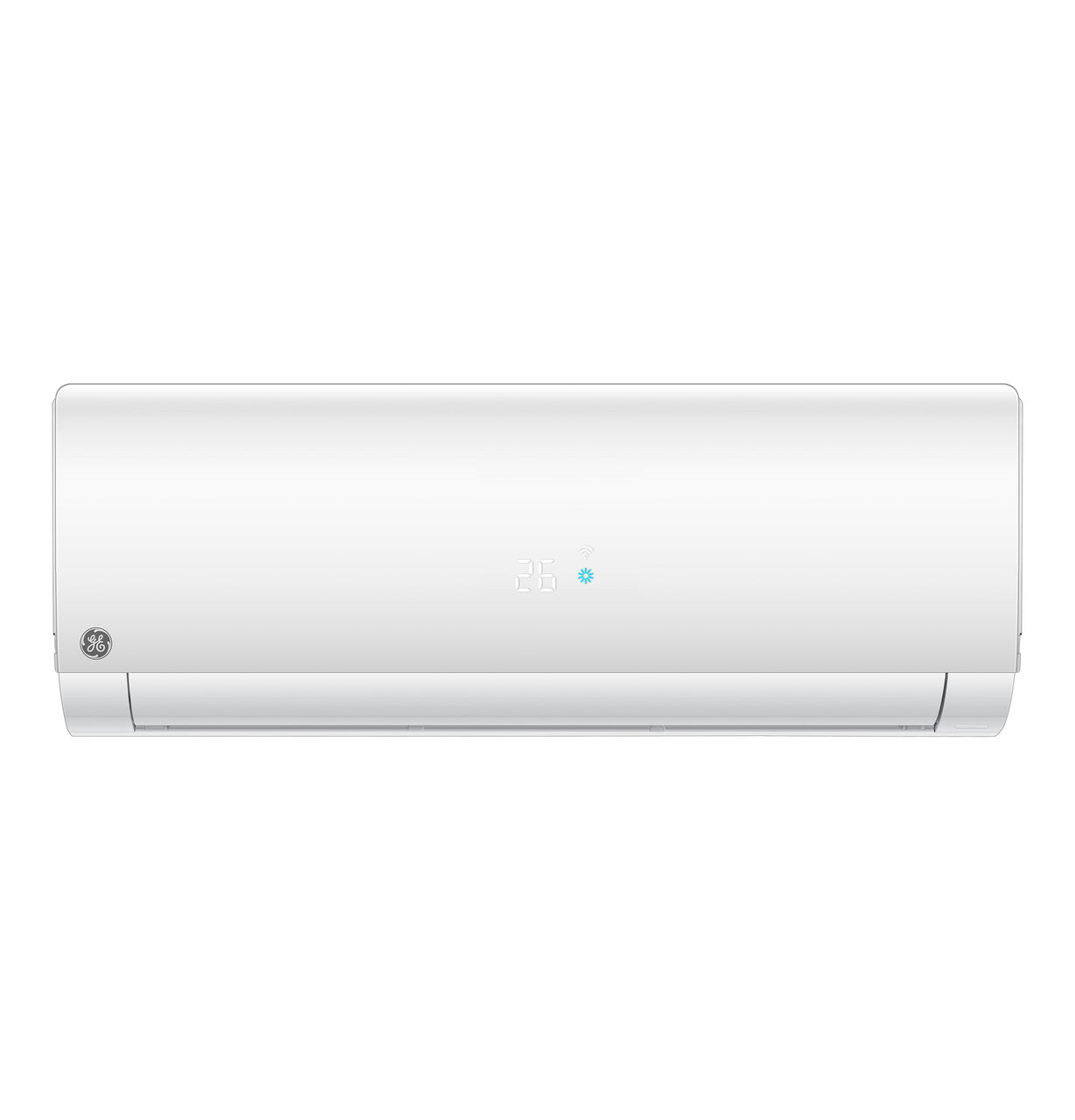

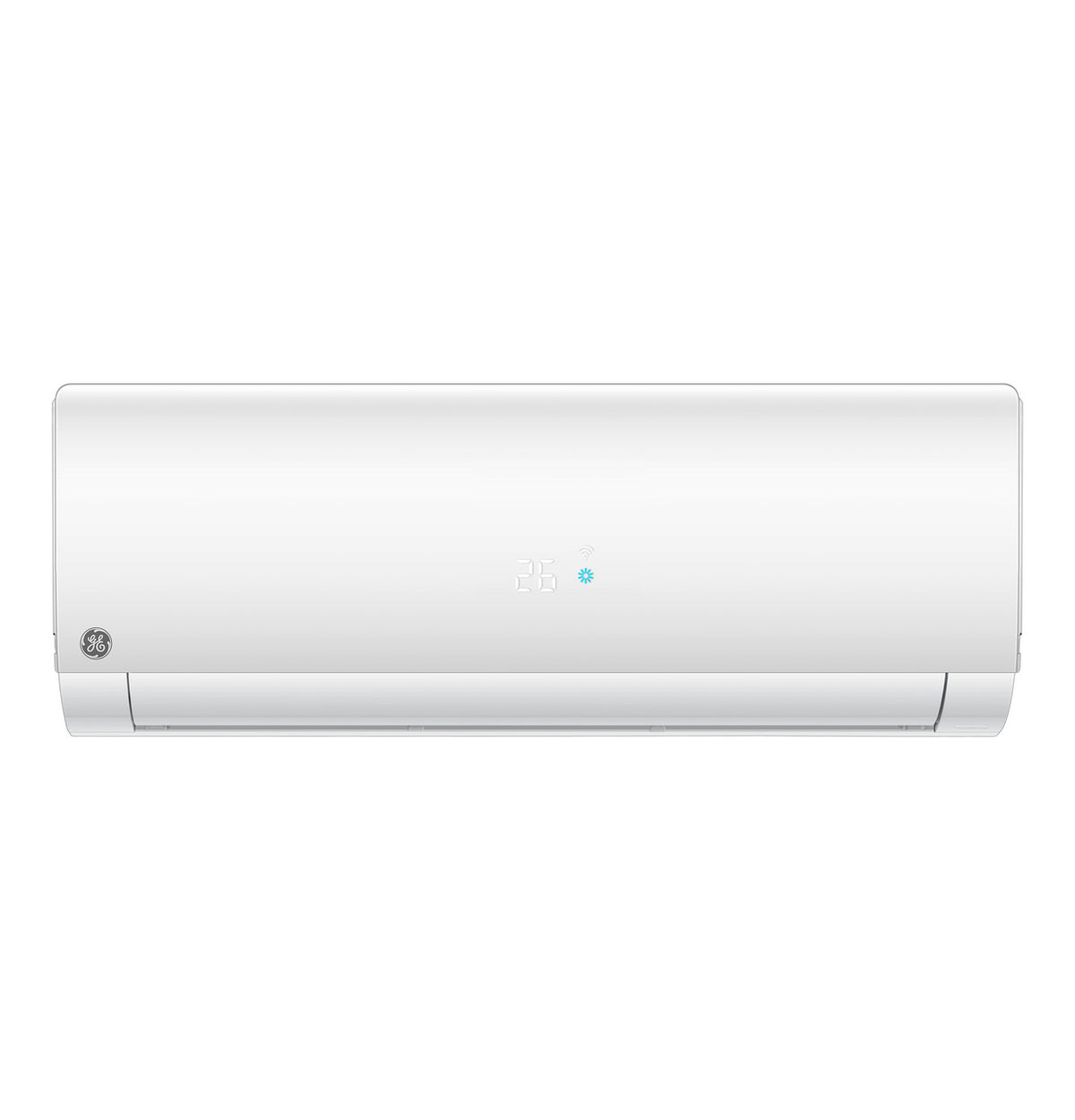

Ge GS09WB2BEA(I) 208-230V 9,000 BTU Standard Highwall Indoor Unit

Product Description

The GE GS09WB2BEA(I) is a 208-230V 9,000 BTU standard highwall indoor unit. Built-in WiFi allows users to monitor status, adjust temperature, and set cooling and heating schedules. A mounting template and plate enable accurate, single-person installation. The auto louver adjusts airflow upward when cooling and downward when heating.

• Features R454B refrigerant, a lower Global Warming Potential (GWP), eco-friendly option.
• Includes an easy installation clip with a built-in bracket for easier service.
• Offers a 2-way piping drain with flexible right or left side condensation drain options.

Product Highlights

This GE highwall indoor unit provides efficient cooling and heating with smart features and easy installation.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part Number: GS09WB2BEA(I)

Technical Specifications

• APPEARANCE: White
• Color Appearance: White
• Connected Capabilities: Amazon Alexa, Google Home
• Drainpipe Size (in): 5/8
• Fan Speed Stages: 5 + Auto
• Fan Speeds CFM: 360/290/260/230/210
• Indoor Sound Level: 44/38/35/32/27
• Product Type: Single Zone, Multi Zone
• Refrigerant Type: R454B
• Style: Highwall
• Unit Type: Indoor
• WiFi Connect: Built-In
• SmartHQ Home Built-In: Built-In
• Cooling Rated Capacity BTU/Hr: 9,000
• Voltage/Hertz/Phase: 208-230/60/1
• Liquid O.D. Refrigerant Line: 1/4"
• Overall Depth: 7.75 in
• Overall Height: 11.875 in
• Overall Width: 34.25 in
• Suction O.D. Refrigerant Line: 3/8"
• Part Number: GS09WB2BEA
• Certificate: cETLus Listed, AHRI Certified
• Cooling Capacity: 9000 BTU/H
• Fan Speeds: 5-Speed
• Heating Capacity: 10000 BTU/H
• Maximum Voltage: 208V-230V
• Mounting Template/Plate: Yes
• Easy Installation Clip: Yes
• 2-Way Piping Drain: Yes
• Warm Start: Yes
• Auto Louver: Yes
• Indoor Air Filter: Yes
• Indoor/Outdoor: Indoor
• Voltage Rating: 208-240 VAC
• HSPF Rating: 9.5
• SEER Rating: 23
• EER Rating: 12
• Flow Rate: 360/290/260/230/210 cfm
• Power Source: 208/230 V AC, 1 ph, 60 Hz
• Sound Level: 44/38/35/32/27 dBA
• Suction Line Size: 3/8 in
• Type: Standard
• Brand: GE Appliances
• Manufacturer: GE Appliances
