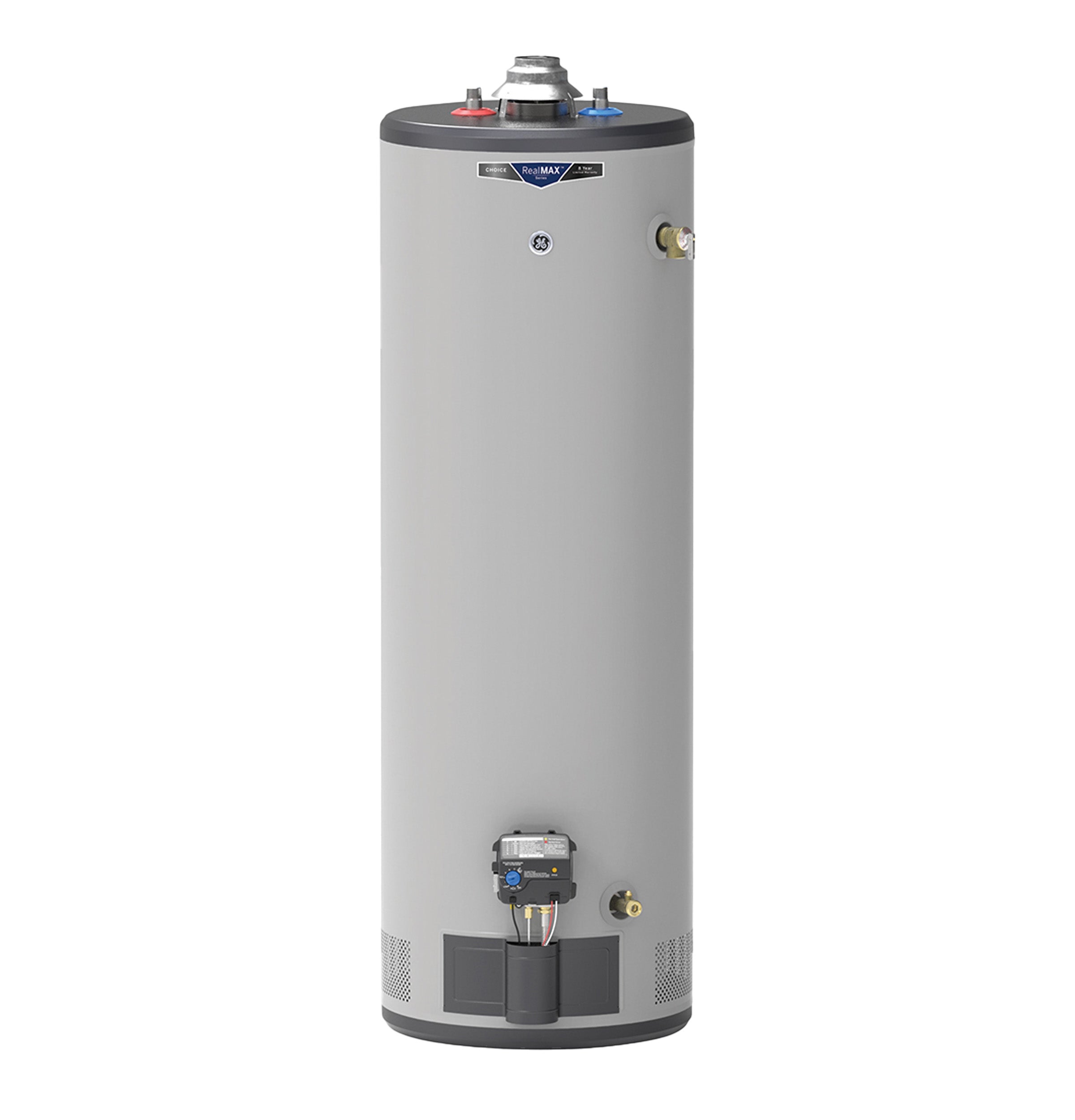

GE GP40T08BXR RealMAX Choice 40-Gallon Tall Liquid Propane Atmospheric Water Heater

Product Description

The GE GP40T08BXR RealMAX Choice 40-Gallon Tall Liquid Propane Atmospheric Water Heater provides hot water for households of 2 to 4 persons. It quickly replenishes hot water with a max-performance 40K burner. Its durable design offers long-lasting protection against corrosion, extending the life of the water heater tank. It also monitors the surrounding air and automatically shuts off if abnormal temperatures are detected.

• Provides hot water for the whole family of 2 to 4 persons
• Quickly replenish hot water with a max-performance 40K burner
• Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank

Product Highlights

This GE RealMAX Choice water heater is easy to install

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GP40T08BXR

Technical Specifications

• Color Appearance: Gray
• Unit Capacity: 40 Gallons
• Altitude Rating: 10,100 ft
• Anode Rod: Magnesium
• Configuration: Tall
• Controls: LED Indicator
• Drain Valve Type: Brass
• Family Size: 2-5 People
• Fuel Type: Gas
• FVIR Safety System: Yes
• Gas Valve: Self Powered
• Height Description: Tall
• Overheat Protection: Yes
• Pilot Light Window / Button: Yes
• Product Type: Atmospheric Gas
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 45-160° F Range
• UEF: .64
• Vent: Atmospheric
• Water Connection Location: Top
• Burner BTU Size (k): 36
• First Hour Delivery GPH: 83 gal/h
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Height to Gas Control: 11.25 in
• Overall Depth: 20 in
• Overall Height: 61.875 in
• Overall Width: 20 in
• Product Diameter: 20 in
• Product Height (to top of unit): 58.5 in
• Product Height (to top of water inlet/outlet connections): 60 in
• Vent Size: 2" or 3" Type B Vent
• Product Height: 61.88 Inches
• Product Width: 20 Inches
• Product Depth: 20 Inches
• Tank Diameter (in.): 20 Inches
• Height Top of Connectors (in.): 60 Inches
• Height Top of Tank (in.): 58.5 Inches
• Height to top of vent cap (in.): 61.88 Inches
• Type: Tank
• Gas Type: LP Gas
• Gallon Size (Nominal): 40 Gallons
• Gallon Size (Rated): 40
• Number of People per Household: 3-5 People
• Temperature Pressure Relief Valve: Yes
• Drain Valve: Polymer
• Control Type: Thermostat
• LED Status Indicator: Yes
• Heating Capacity: 36000 BTU/h
• Product Dimensions: 61.88-in X 20-in X 20-in
• Altitude: 10,100 '
• BTU Rating: 36,000 BTU/hr
• Capacity: 40 gallons
• Color: Gray
• Connection Type: 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection)
• Dimensions: 61-7/8" H x 20" W x 20" D
• Domestic/Import: Domestic
• Efficiency: 64% (UEF), 78% (Recovery Efficiency)
• Energy Factor: 0.64 UEF
• Energy Star Compliant: No
• First Hour Delivery: 83 GPH
• Ignition System: Standing Pilot
• Ignition Type: Standing Pilot
• Lead-Free/Contains Lead: Lead-Free
• Material: Steel (Tank), Magnesium (Anode Rod)
• Model: GP40T08BXR
• Mounting Type: Floor Mount
• Recovery Efficiency: 78 %
• Recovery Rate: 37 GPH (At 90°F Rise)
• Series: RealMAX Choice
• Temperature Rating: 45-160 °F (Adjustable Setting)
• Vent Diameter: 3 "
