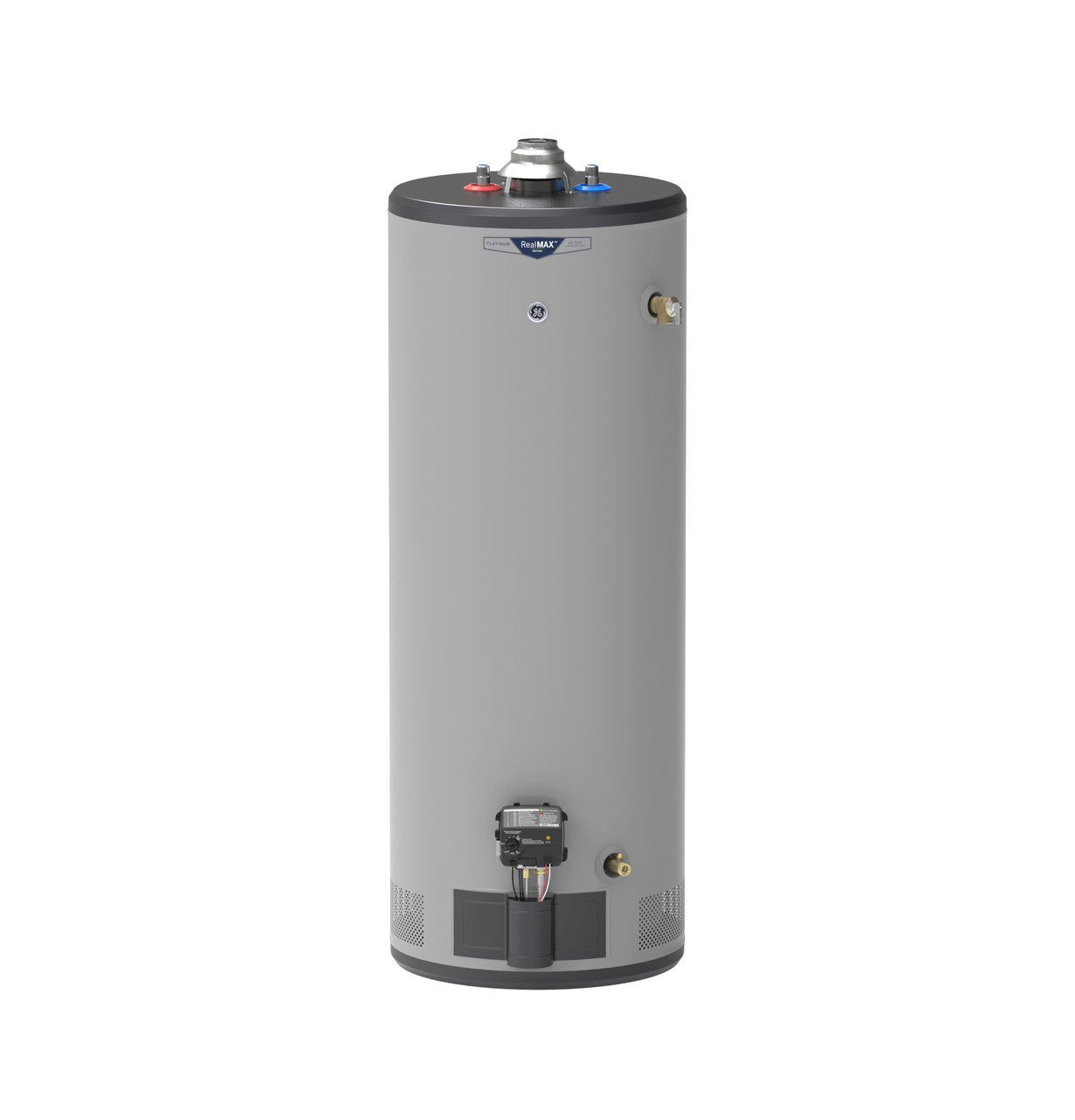

GE GG50T12BXR RealMAX Platinum 50-Gallon Tall Natural Gas Atmospheric Water Heater

Product Description

The GE GG50T12BXR RealMAX Platinum water heater provides hot water for households of 3 to 5+ people. The 40K BTU burner quickly replenishes hot water. Its durable design offers corrosion protection to extend the tank's life. The SmartShield Safety System monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected.

• Provides hot water for 3-5+ person households.
• Features a max-performance 40K BTU burner for quick hot water replenishment.
• Offers long-lasting corrosion protection with a durable anode rod.

Product Highlights

This RealMAX Platinum water heater features SmartShield Safety System, self-diagnostic LED indicator, and a rust-proof brass drain valve. It has standard water and gas connections for easy installation.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GG50T12BXR
• Country of Origin: Domestic

Technical Specifications

• Color Appearance: Gray
• Unit Capacity: 50 Gallons
• Altitude Rating: 10,100 ft
• Anode Rod: Magnesium
• Configuration: Tall
• Controls: LED Indicator
• Drain Valve Type: Brass
• Family Size: 3-5 or more People
• Fuel Type: Natural Gas
• FVIR Safety System: Yes
• Gas Valve: Self Powered
• Height Description: Tall
• Overheat Protection: Yes
• Pilot Light Window / Button: Yes
• Product Type: Atmospheric Gas
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 45-160 °F Range
• UEF: .64
• Vent: Atmospheric
• Water Connection Location: Top
• Burner BTU Size (k): 40
• First Hour Delivery GPH: 82 gal/h
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Height to Gas Control: 11.25 in
• Net Weight: 161 lb
• Overall Depth: 22 in
• Overall Height: 61.375 in
• Overall Width: 22 in
• Product Diameter: 22 in
• Product Height (to top of unit): 58 in
• Product Height (to top of water inlet/outlet connections): 59.5 in
• Vent Size: 2" or 3" Type B Vent
• BTU Rating: 40,000 BTU/hr
• Connection Type: 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection)
• Domestic/Import: Domestic
• Efficiency: 64% (UEF), 78% (Recovery Efficiency)
• Energy Factor: 0.64 UEF
• Energy Star Compliant: No
• Ignition System: Standing Pilot
• Ignition Type: Standing Pilot
• Lead-Free/Contains Lead: Lead-Free
• Material: Steel (Tank), Magnesium (Anode Rod)
• Model: GG50T12BXR
• Mounting Type: Floor Mount
• Recovery Efficiency: 78 %
• Recovery Rate: 41.6 GPH (At 90°F Rise)
• Series: RealMAX Platinum
• Vent Diameter: 3 "
• Vent Type: Atmospheric
