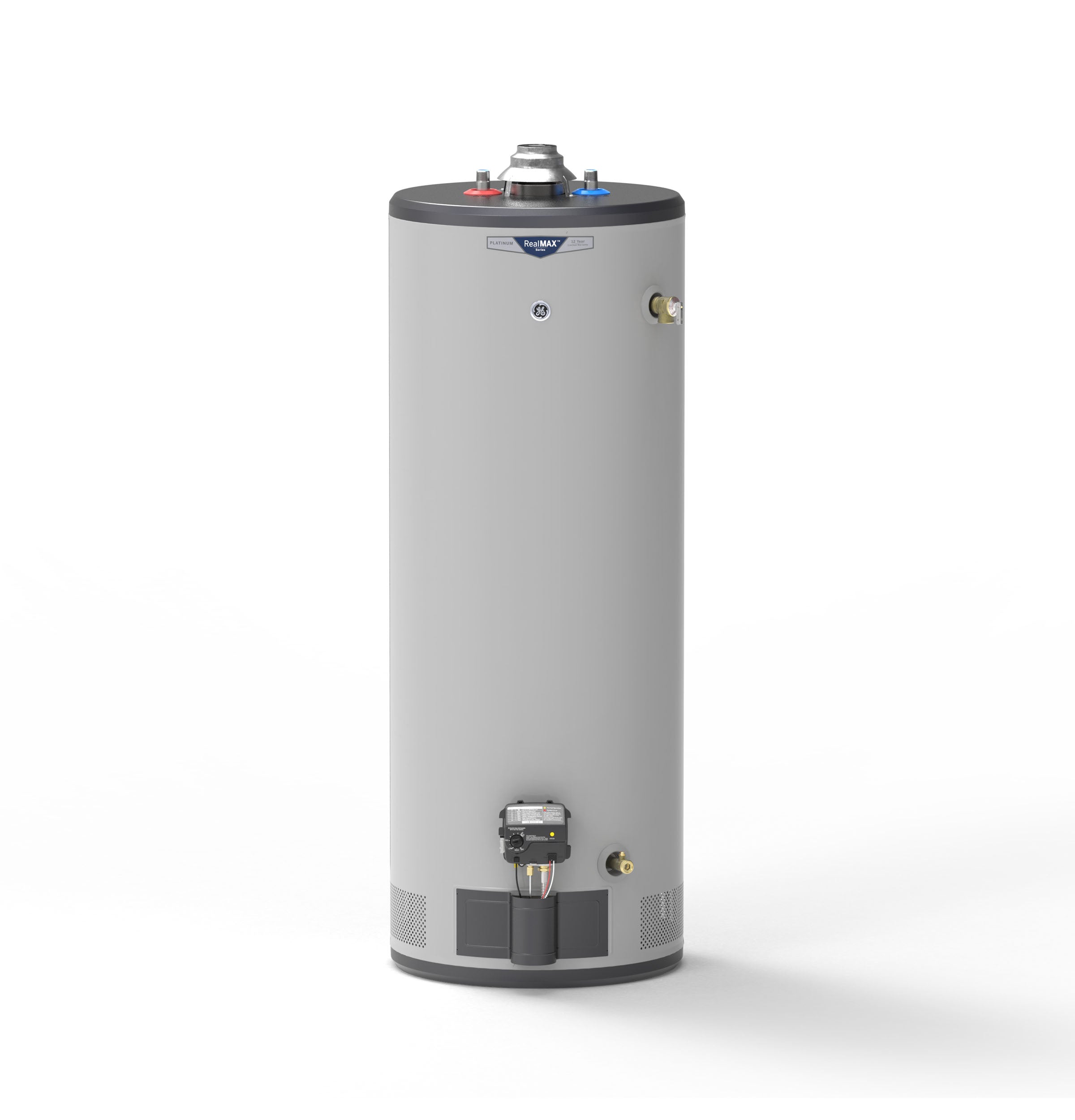

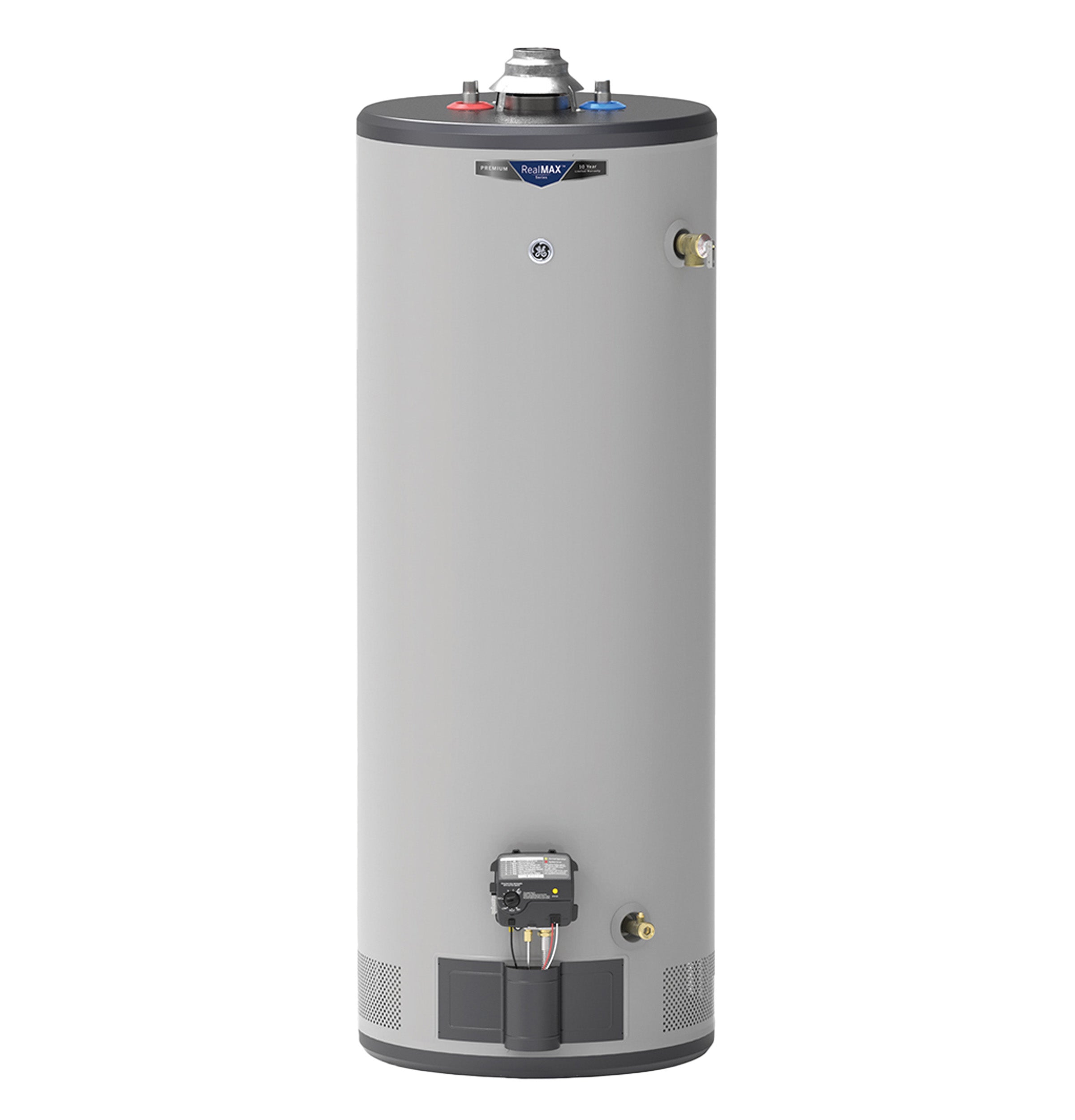

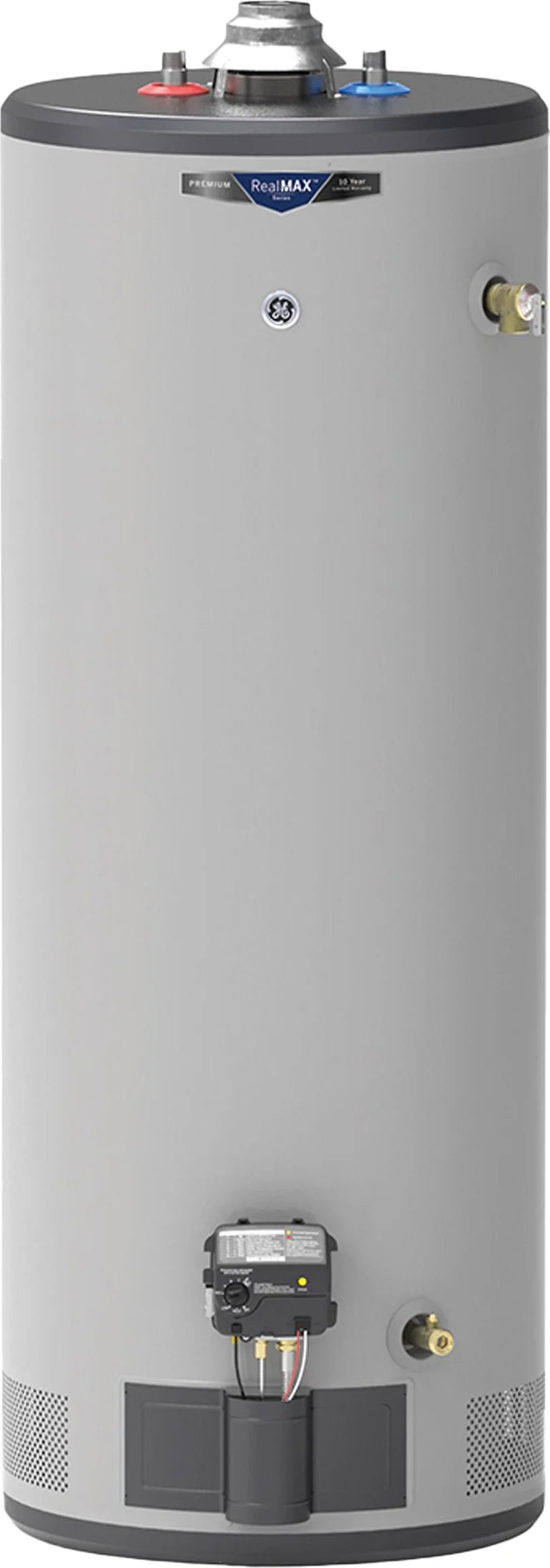

GE GG50T10BXR RealMAX Premium 50-Gallon Tall Natural Gas Atmospheric Water Heater

Product Description

The GE RealMAX Premium 50-Gallon Tall Natural Gas Atmospheric Water Heater, MPN GG50T10BXR, provides hot water for households of 3 to 5+ people. It features a 40K burner for quick hot water replenishment and a durable design for corrosion protection. The SmartShield Safety System monitors air temperature, and the self-diagnostic feature reports gas system status via an LED indicator.

• Provides hot water for the whole family of 3 to 5+ persons.
• Quickly replenish hot water with a max-performance 40K burner.
• Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank.

Product Highlights

This GE water heater offers reliable hot water, safety features, and easy installation for standard water and gas connections.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GG50T10BXR
• Country of Origin: US

Technical Specifications

• Unit Capacity: 50 Gallons
• Altitude Rating: 10100 ft
• Anode Rod: Magnesium
• Bin Testing: High
• Configuration: Tall
• Controls: LED Indicator
• Drain Valve Type: Brass
• Family Size: 3-5 or more People
• Fuel Type: Natural Gas
• FVIR Safety System: Yes
• Gas Valve: Self Powered
• Height Description: Tall
• Overheat Protection: Yes
• Pilot Light Window / Button: Yes
• Product Type: Atmospheric Gas
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 45-160° F Range
• UEF: .64
• Vent: Atmospheric
• Water Connection Location: Top
• Burner BTU Size (k): 40
• First Hour Delivery GPH: 82 gal/h
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Height to Gas Control: 11.25 in
• Net Weight: 161 lb
• Overall Depth: 22 in
• Overall Height: 61.375 in
• Overall Width: 22 in
• Product Diameter: 22 in
• Product Height (to top of unit): 58 in
• Product Height (to top of water inlet/outlet connections): 59.5 in
• Vent Size: 2" or 3" Type B Vent
• Rated Nominal Volume (Gallons): 50
• DOE Rated Storage Volume (Gallons): 50
• Energy Star: No
• Connectivity: Not WiFi Compatible
• Overall Height (in.): 61.375
• Jacket Diameter (in.): 22
• Weight (lbs.): 161
• BTU Input: 40000
• First Hour Delivery Rating (Gal.): 82
• Uniform Energy Factor (UEF): 0.64
• Recovery at 90°F Rise (GPH): 41.6
• Recovery Efficiency: 78%
• Gas Connection Size (in.): 1/2"
• Water Connection Size (in.): 3/4" NPT
