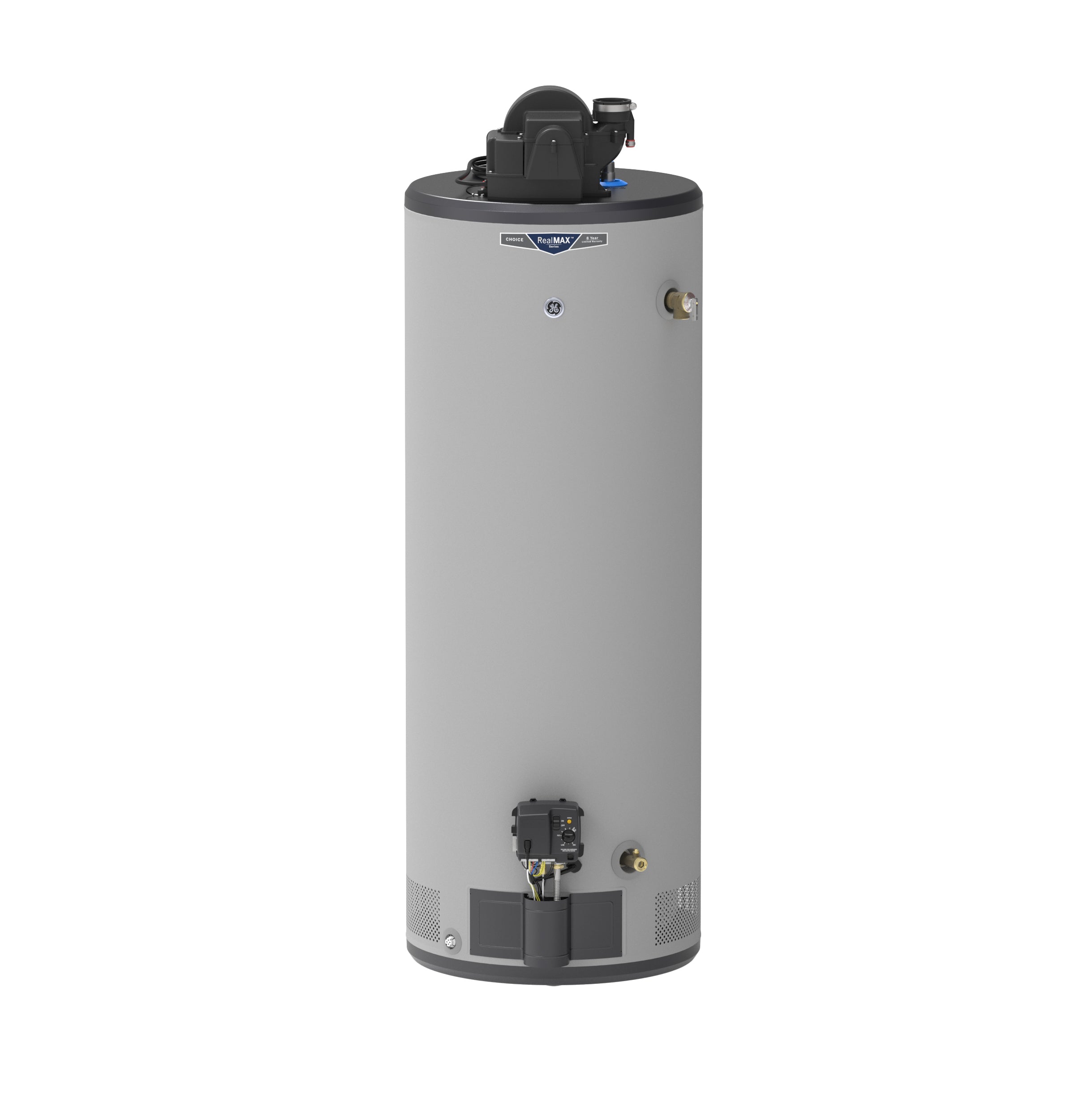

GE GG50T08AYV RealMAX Choice 50-Gallon Tall Natural Gas Power Vent Water Heater

Product Description

The GE RealMAX Choice 50-Gallon Tall Natural Gas Power Vent Water Heater, MPN GG50T08AYV, offers flexible venting options up to 150 feet with vertical or horizontal termination. With a 50-gallon tank, it provides ample hot water for families of up to five. It delivers 82 gallons of hot water in the first hour and features a corrosion-resistant brass drain valve.

• Power vent allows for easy venting up to 150 feet with vertical or horizontal termination.
• 50-gallon water tank provides plenty of hot water for a family of up to five people.
• SmartShield Safety System monitors the surrounding air and automatically shuts off the unit if abnormal temperatures or flammable vapors are detected.

Product Highlights

This GE RealMAX Choice water heater provides reliable hot water with flexible venting, safety features, and durable components.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GG50T08AYV
• Country of Origin: America

Technical Specifications

• Color Appearance: Gray
• Unit Capacity: 50 Gallons
• Altitude Rating: 10,100 ft
• Anode Rod: Magnesium
• Bin Testing: High
• Configuration: Tall
• Controls: LED Indicator
• Drain Valve Type: Brass
• Family Size: 3-5 or more People
• Fuel Type: Natural Gas
• FVIR Safety System: Yes
• Gas Valve: Self Powered
• Height Description: Tall
• Overheat Protection: Yes
• Pilot Light Window / Button: Yes
• Product Type: Power Vent Gas
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 45-160° F Range
• UEF: 0.68
• Vent: Power Vent
• Water Connection Location: Top
• Burner BTU Size (k): 42
• First Hour Delivery GPH: 82 gal/h
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Height to Gas Control: 11.5 in
• Overall Depth: 22 in
• Overall Height: 65.8 in
• Overall Width: 22 in
• Product Diameter: 22 in
• Product Height (to top of unit): 58.25 in
• Product Height (to top of water inlet/outlet connections): 59.75 in
• Vent Size: 2" or 3" PVC, CPVC, ABS or PP
• Rated Nominal Volume (Gallons): 50
• DOE Rated Storage Volume (Gallons): 50
• Energy Star: No
• Connectivity: Not WiFi Compatible
• Jacket Diameter (in.): 22
• BTU Input: 42000
• First Hour Delivery Rating (Gal.): 82
• Uniform Energy Factor (UEF): 0.68
• Water Connection Size (in.): 3/4" NPT
• Gas Connection Size (in.): 1/2"
