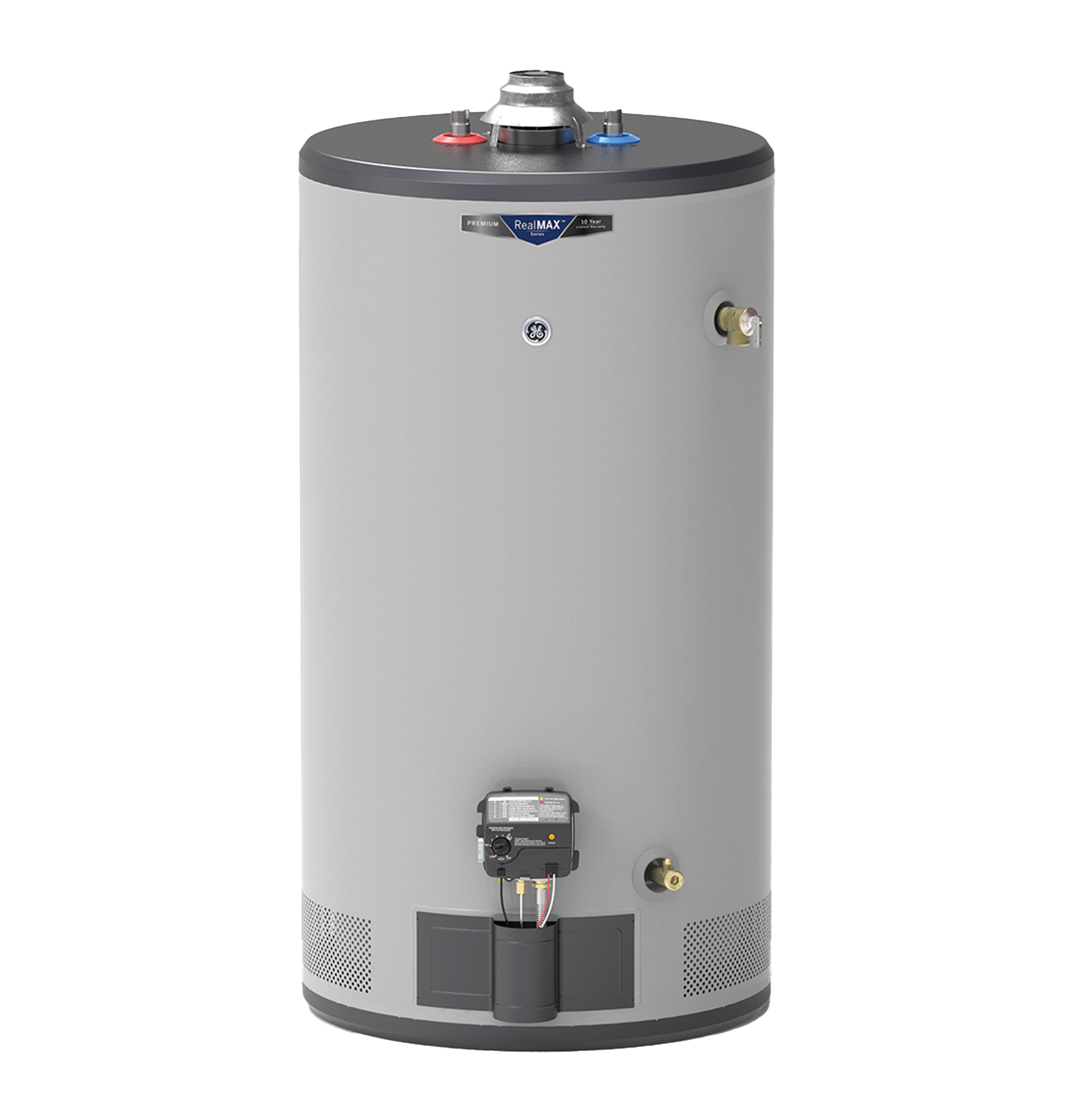

GE GG50S10BXR RealMAX Premium 50-Gallon Short Natural Gas Atmospheric Water Heater

Product Description

The GE GG50S10BXR RealMAX Premium water heater provides hot water for a family of 3 to 5+ people. Replenish hot water quickly with its 40K BTU burner. The durable design offers corrosion protection to extend the tank's life. The SmartShield Safety System monitors the surrounding air and shuts off the unit if abnormal temperatures are detected.

• Provides hot water for the whole family of 3 to 5+ persons.
• Quickly replenish hot water with a max-performance 40K burner.
• Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank.

Product Highlights

This 50-gallon natural gas water heater features a SmartShield Safety System, LED status indicator, and easy installation with standard water and gas connections.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GG50S10BXR
• Country of Origin: America

Technical Specifications

• Color Appearance: Gray
• Unit Capacity: 50 Gallons
• Altitude Rating: 10,100 ft
• Anode Rod: Magnesium
• Configuration: Short
• Controls: LED Indicator
• Drain Valve Type: Brass
• Family Size: 3-5 or more People
• Fuel Type: Natural Gas
• FVIR Safety System: Yes
• Gas Valve: Self Powered
• Height Description: Short
• Overheat Protection: Yes
• Pilot Light Window / Button: Yes
• Product Type: Atmospheric Gas
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 45-160° F Range
• UEF: .63
• Vent: Atmospheric
• Water Connection Location: Top
• Burner BTU Size (k): 40
• First Hour Delivery GPH: 77 gal/h
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Height to Gas Control: 11.25 in
• Net Weight: 163 lb
• Overall Depth: 25 in
• Overall Height: 49.625 in
• Overall Width: 25 in
• Product Diameter: 25 in
• Product Height (to top of unit): 46.25 in
• Product Height (to top of water inlet/outlet connections): 47.75 in
• Vent Size: 2" or 3" Type B Vent
• Rated Nominal Volume (Gallons): 50
• DOE Rated Storage Volume (Gallons): 50
• Energy Star: No
• Connectivity: Not WiFi Compatible
• BTU Input: 40000
• First Hour Delivery Rating (Gal.): 77
• Uniform Energy Factor (UEF): 0.63
• Recovery at 90°F Rise (GPH): 41.6
• Recovery Efficiency: 78%
• Vent Size (in.): 3"
• Water Connection Size (in.): 3/4" NPT
• Gas Connection Size (in.): 1/2"
