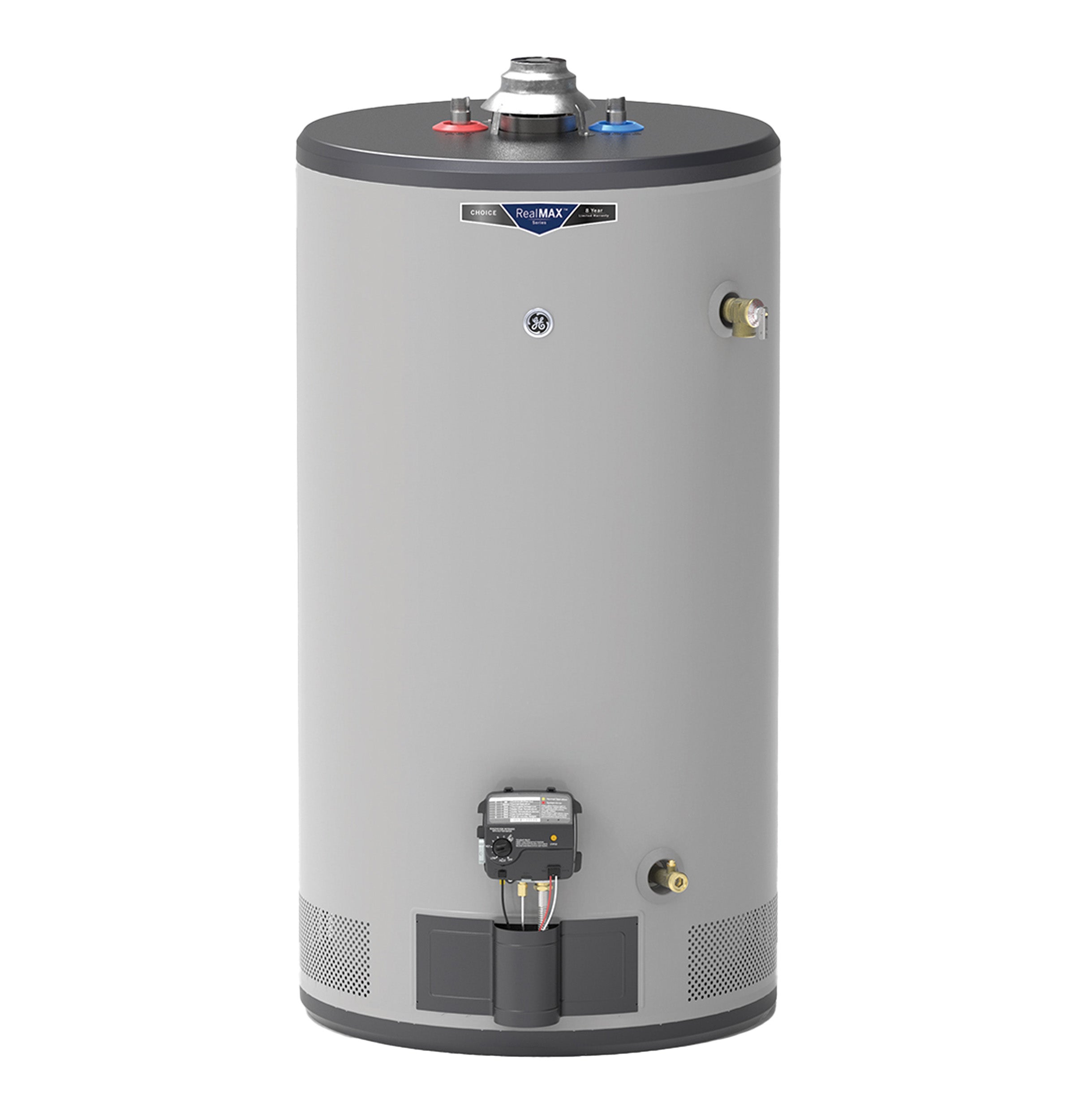

GE GG50S08BXR RealMAX Choice 50-Gallon Short Natural Gas Atmospheric Water Heater

Product Description

The GE RealMAX Choice GG50S08BXR delivers a true 50-gallon capacity, suitable for households of 3 to 5+ people. Its high-performance 40,000 BTU natural gas burner provides quick hot water recovery, delivering up to 77 gallons in the first hour. The short design allows for installation in height-restricted spaces. The SmartShield Safety System monitors surrounding air, and a self-diagnostic LED indicates system status.

• Provides a true 50-gallon hot water capacity suitable for families of 3-5+.
• Features a 40,000 BTU burner for quick recovery, delivering up to 77 gallons in the first hour.
• Short profile allows installation in height-restricted areas.

Product Highlights

This GE water heater is ideal for families needing a reliable, quick recovery system. It offers safety features and a durable design for extended use.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GG50S08BXR
• Country of Origin: Domestic

Technical Specifications

• Color Appearance: Gray
• Unit Capacity: 50 Gallons
• Altitude Rating: 10,100 ft
• Anode Rod: Magnesium
• Configuration: Short
• Controls: LED Indicator
• Drain Valve Type: Brass
• Family Size: 3-5 or more People
• Fuel Type: Natural Gas
• FVIR Safety System: Yes
• Gas Valve: Self Powered
• Height Description: Short
• Overheat Protection: Yes
• Pilot Light Window / Button: Yes
• Product Type: Atmospheric Gas
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 45-160° F Range
• UEF: .63
• Vent: Atmospheric
• Water Connection Location: Top
• Burner BTU Size (k): 40
• First Hour Delivery GPH: 77 gal/h
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Height to Gas Control: 11.25 in
• Overall Depth: 25 in
• Overall Height: 49.625 in
• Overall Width: 25 in
• Product Diameter: 25 in
• Product Height (to top of unit): 46.25 in
• Product Height (to top of water inlet/outlet connections): 47.75 in
• Vent Size: 2" or 3" Type B Vent
• Altitude: 10,100 '
• BTU Rating: 40,000 BTU/hr
• Capacity: 50 gallons
• Connection Type: 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection)
• Domestic/Import: Domestic
• Efficiency: 63% (UEF), 78% (Recovery Efficiency)
• Energy Factor: 0.63 UEF
• Energy Star Compliant: No
• Recovery Efficiency: 78 %
• Recovery Rate: 41.6 GPH (At 90°F Rise)
• Series: RealMAX Choice
• Temperature Rating: 45-160 °F (Adjustable Setting)
• Vent Diameter: 3 "
• Vent Type: Atmospheric
• Ignition System: Standing Pilot
• Ignition Type: Standing Pilot
• Lead-Free/Contains Lead: Lead-Free
• Material: Steel (Tank), Magnesium (Anode Rod)
• Model: GG50S08BXR
• Mounting Type: Floor Mount
• Part Number: GG50S08BXR
