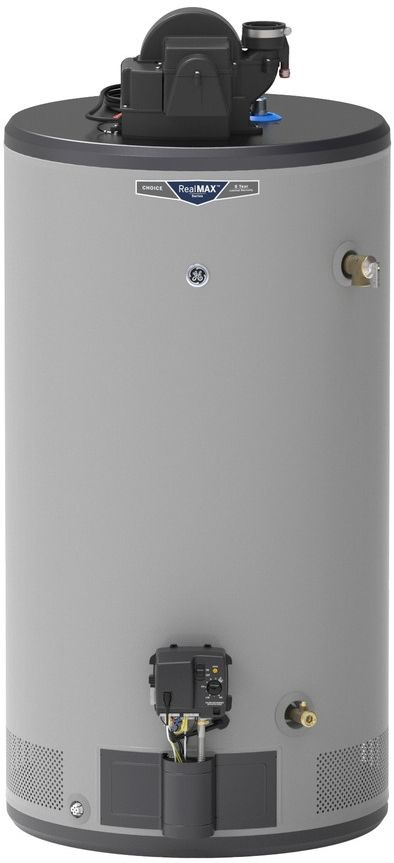

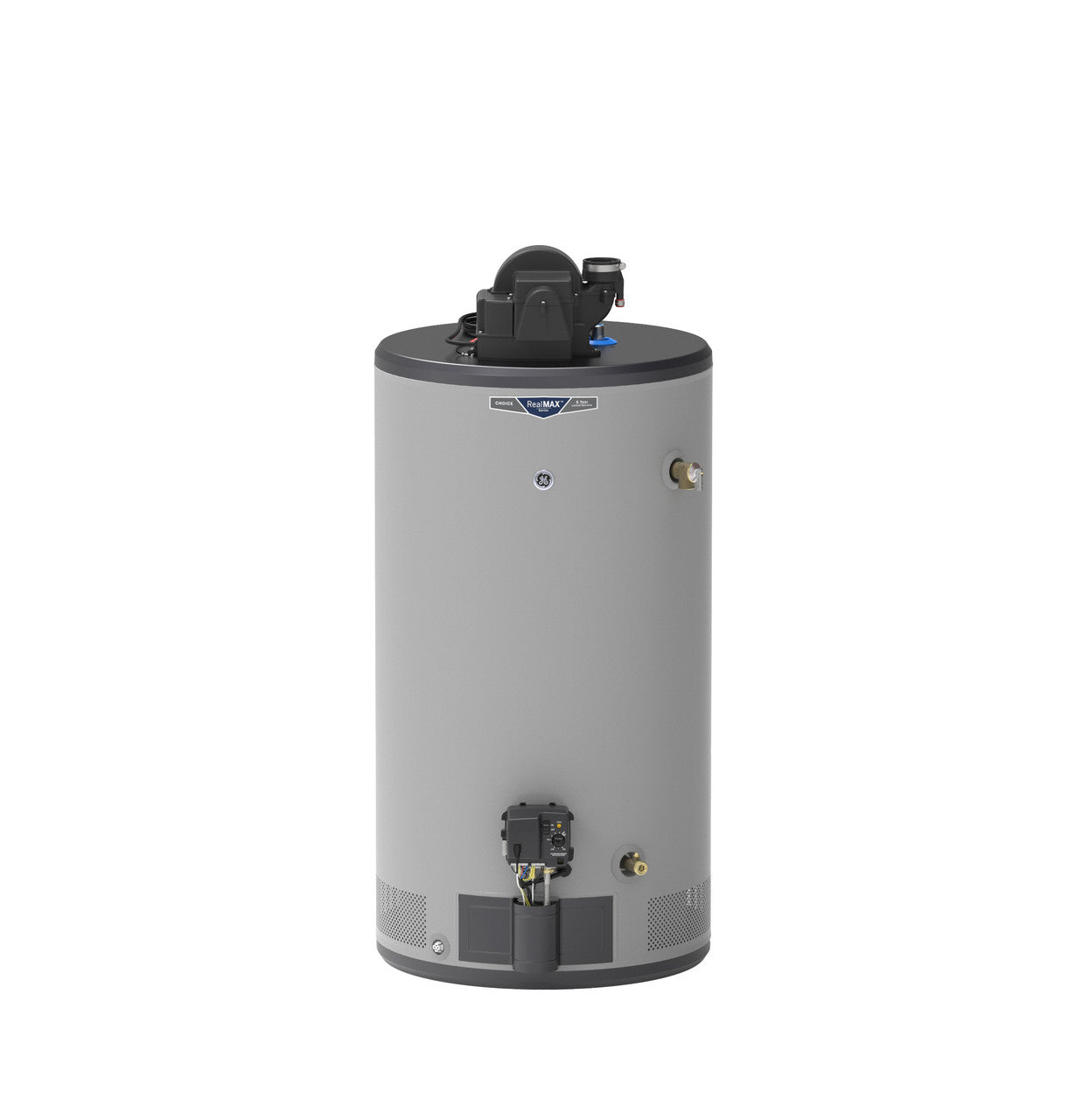

GE GG50S08AYV RealMAX Choice 50-Gallon Short Natural Gas Power Vent Water Heater

Product Description

The GE GG50S08AYV RealMAX Choice is a 50-gallon short natural gas power vent water heater, offering flexible venting options up to 150 feet with vertical or horizontal termination. It provides ample hot water for families of up to five. The unit features a SmartShield Safety System and self-diagnostic monitoring with an LED status indicator.

• Offers flexible venting options up to 150 feet.
• Provides a true 50 gallons of hot water for a family of up to five.
• Features a corrosion-resistant brass drain valve.

Product Highlights

This GE RealMAX Choice water heater ensures safety and durability with its smart features and robust construction.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GG50S08AYV
• Country of Origin: America

Technical Specifications

• Color Appearance: Gray
• Unit Capacity: 50 Gallons
• Altitude Rating: 10,100 ft
• Anode Rod: Magnesium
• Bin Testing: High
• Configuration: Short
• Controls: LED Indicator
• Drain Valve Type: Brass
• Family Size: 3-5 or more People
• Fuel Type: Natural Gas
• FVIR Safety System: Yes
• Gas Valve: Self Powered
• Height Description: Short
• Overheat Protection: Yes
• Pilot Light Window / Button: Yes
• Product Type: Power Vent Gas
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 45-160° F Range
• UEF: 0.61
• Vent: Power Vent
• Water Connection Location: Top
• Burner BTU Size (k): 40
• First Hour Delivery GPH: 73 gal/h
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Height to Gas Control: 11.5 in
• Net Weight: 173 lb
• Overall Depth: 25 in
• Overall Height: 54 in
• Overall Width: 25 in
• Product Diameter: 25 in
• Product Height (to top of unit): 46.5 in
• Product Height (to top of water inlet/outlet connections): 48 in
• Vent Size: 2" or 3" PVC, CPVC, ABS or PP
• Width (in.): 25
• Depth (in.): 25
• Height (in.): 54
• Tank Capacity: 50
• Capacity (gal.): 50
• Collection: RealMAX Choice
• Water Heater Type: Tank
• Water Heater Profile: Short
• Water Heater Vent Type: Power Vent
• Water Heater Features: Overheat Protection, Temp Pressure Relief Valve
• Product Weight (lbs.): 173
