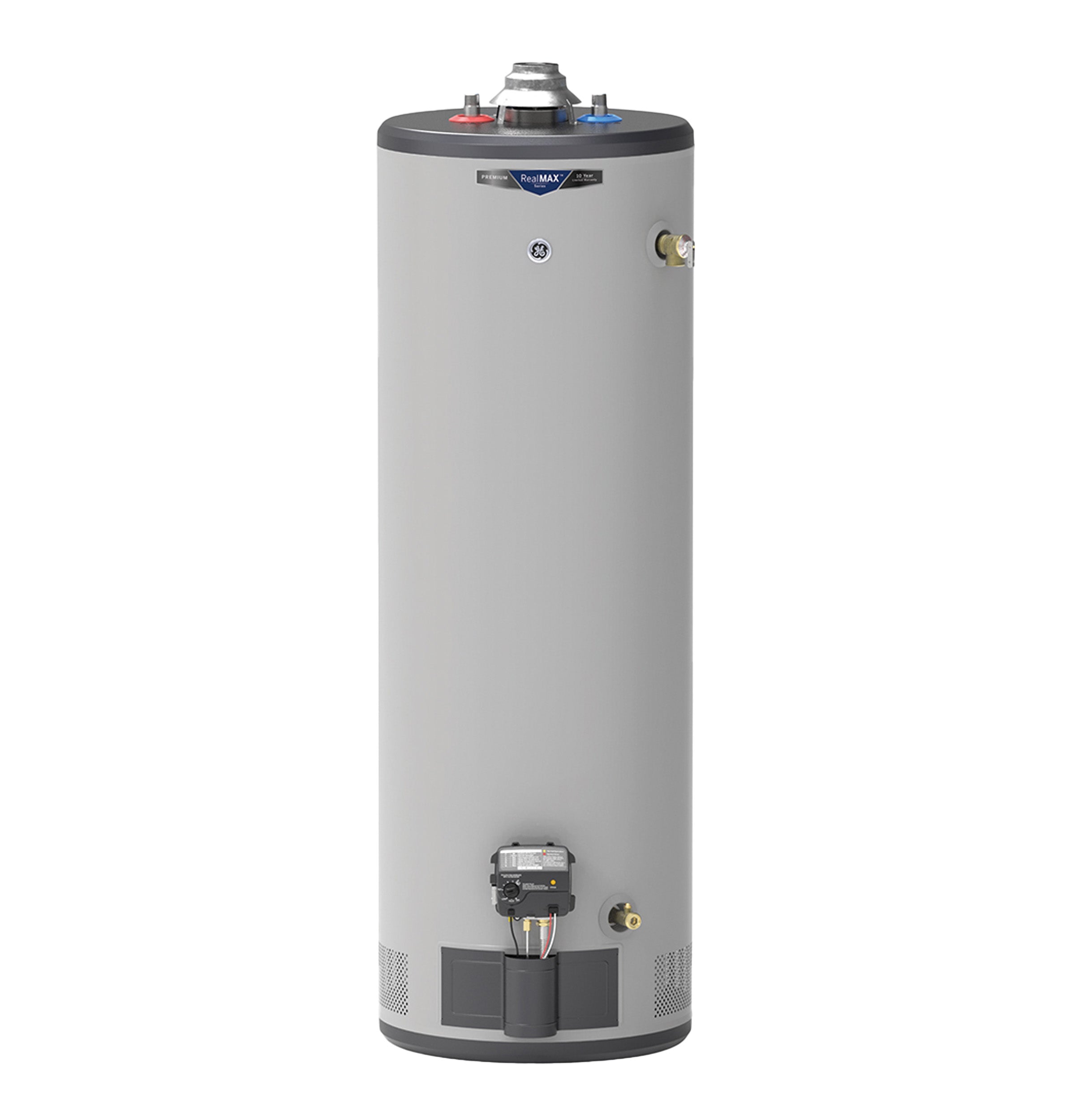

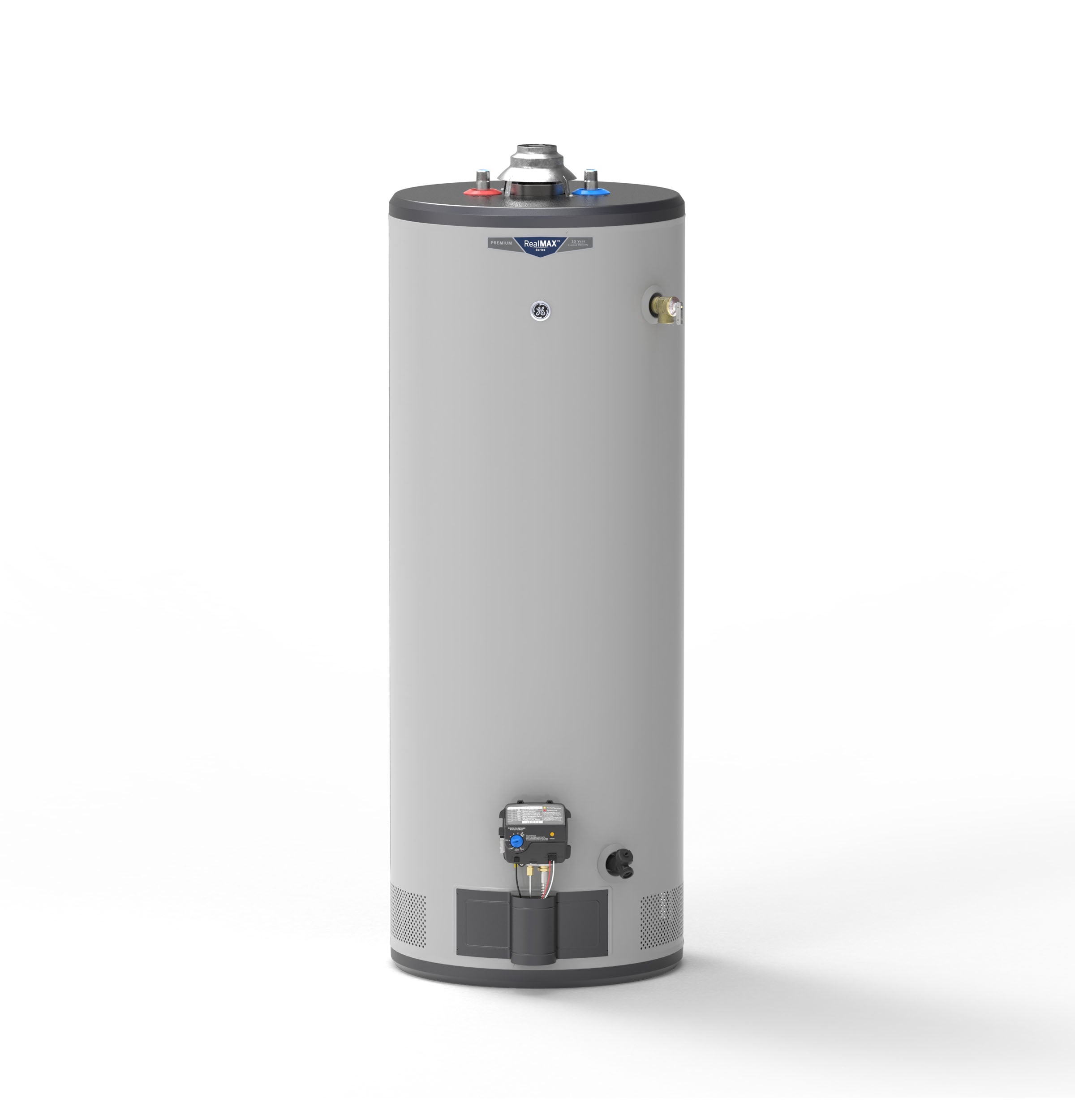

GE GG40T10BXR RealMAX Premium Water Heater 40 Gallon

Product Description

The GE GG40T10BXR RealMAX Premium water heater provides hot water for households of 2 to 4 people. The 40K burner quickly replenishes hot water for maximum performance. Its durable design offers corrosion protection to extend the tank's life. The SmartShield Safety System monitors the surrounding air and shuts off the unit if abnormal temperatures are detected.

• Provides hot water for the whole family of 2 to 4 persons
• Quickly replenish hot water with a max-performance 40K burner

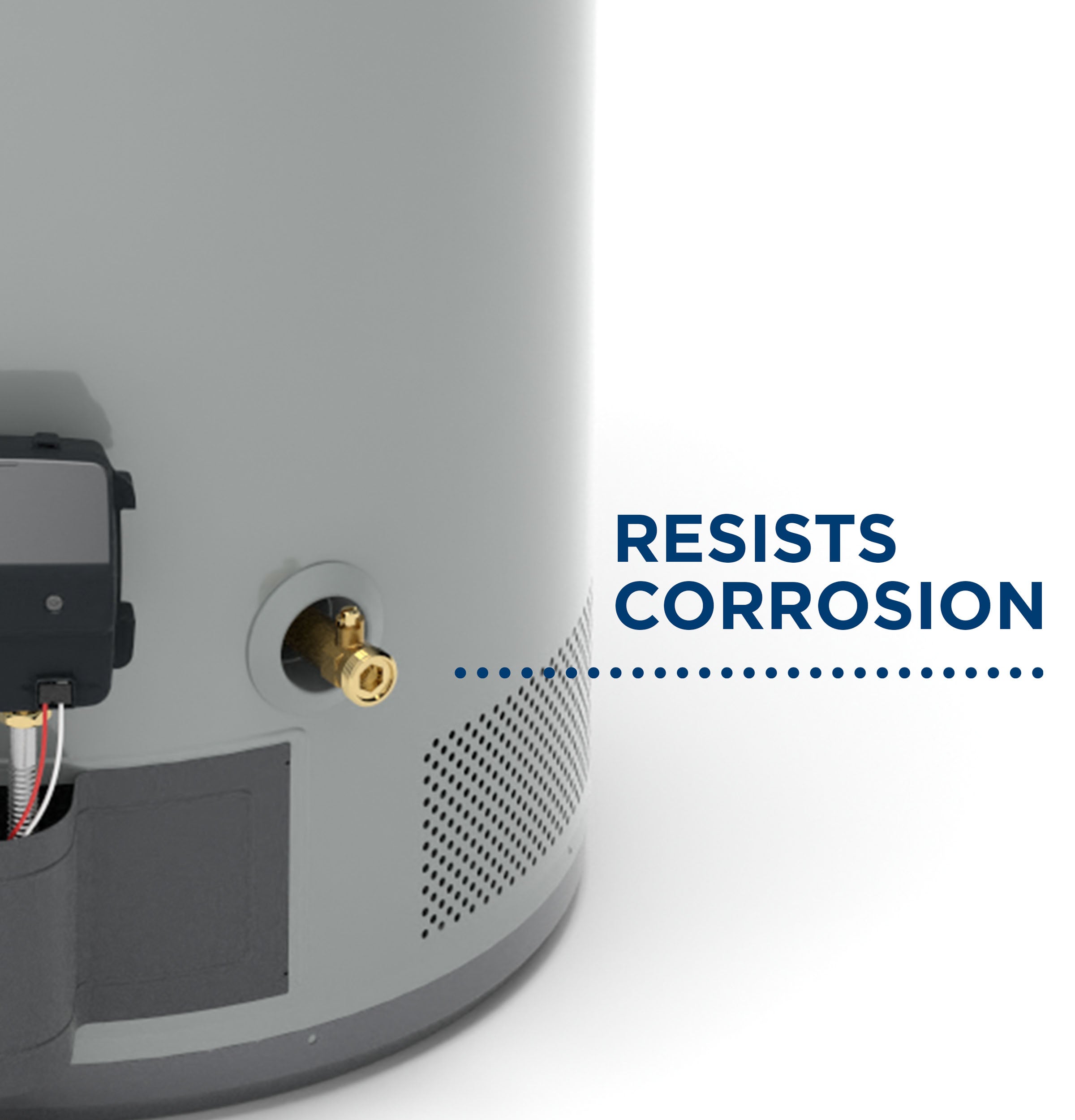

• Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank

Product Highlights

This GE RealMAX Premium water heater features a SmartShield Safety System, self-diagnostic monitoring, and easy installation with standard connections. It also has a brass drain valve for rust-proof construction.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GG40T10BXR
• Country of Origin: America

Technical Specifications

• Unit Capacity: 40 Gallons
• Altitude Rating: 10,100 ft
• Anode Rod: Magnesium
• Bin Testing: High
• Configuration: Tall
• Controls: LED Indicator
• Drain Valve Type: Brass
• Family Size: 2-5 People
• Fuel Type: Natural Gas
• FVIR Safety System: Yes
• Gas Valve: Self Powered
• Height Description: Tall
• Overheat Protection: Yes
• Pilot Light Window / Button: Yes
• Product Type: Atmospheric Gas
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 45-160° F Range
• UEF: .64
• Vent: Atmospheric
• Water Connection Location: Top
• Burner BTU Size (k): 40
• First Hour Delivery GPH: 83 gal/h
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Height to Gas Control: 11.25 in
• Overall Depth: 20 in
• Overall Height: 61.875 in
• Overall Width: 20 in
• Product Diameter: 20 in
• Product Height (to top of unit): 58.5 in
• Product Height (to top of water inlet/outlet connections): 60 in
• Vent Size: 2" or 3" Type B Vent
• Rated Nominal Volume (Gallons): 40
• DOE Rated Storage Volume (Gallons): 40
• Energy Star: No
• Connectivity: Not WiFi Compatible
• Jacket Diameter (in.): 20
• BTU Input: 40000
• First Hour Delivery Rating (Gal.): 83
• Uniform Energy Factor (UEF): 0.64
• Recovery at 90°F Rise (GPH): 41.6
• Recovery Efficiency: 78%
• Vent Size (in.): 3"
• Water Connection Size: 3/4" NPT
• Gas Connection Size (in.): 1/2"
