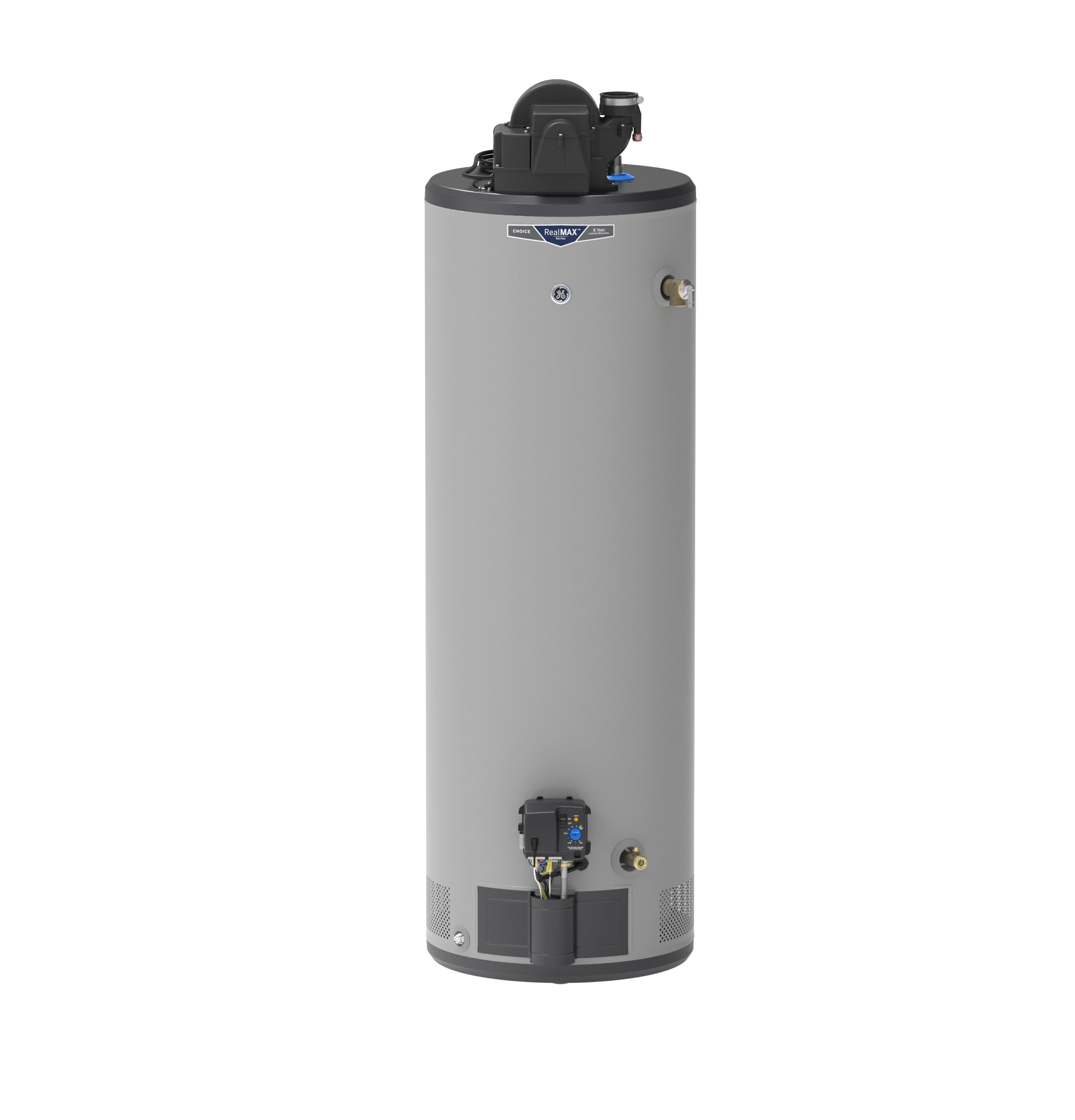

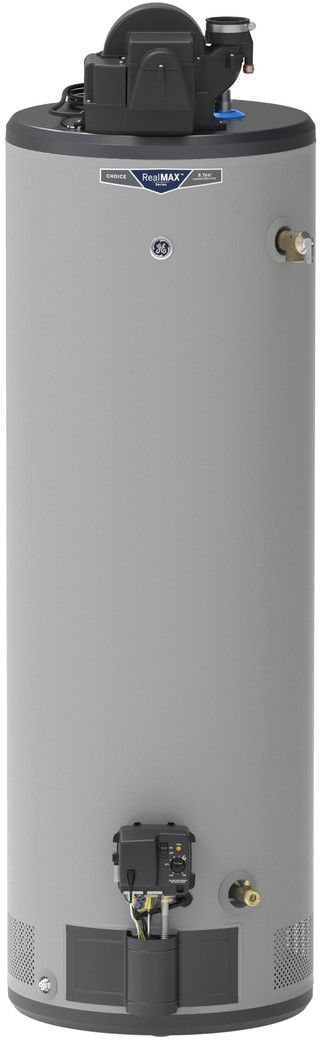

GE GG40T08AYV RealMAX Choice 40-Gallon Tall Natural Gas Power Vent Water Heater

Product Description

The GE GG40T08AYV RealMAX Choice is a 40-gallon natural gas power vent water heater, offering flexible venting options up to 150 feet with vertical or horizontal termination. This unit provides ample hot water for families of up to four. It features a self-diagnostic LED to monitor the gas system status. The temperature setting ranges from 45 to 160 degrees F.

• Power vent offers flexible venting options up to 150 feet.
• 40-gallon tank provides hot water for a family of up to four people.
• SmartShield Safety System monitors the surrounding air and shuts off the unit if abnormal temperatures or flammable vapors are detected.

Product Highlights

This GE RealMAX Choice water heater delivers maximum performance and lasting durability with its brass drain valve and American-made quality.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GG40T08AYV
• Country of Origin: America

Technical Specifications

• Color Appearance: Gray
• Unit Capacity: 40 Gallons
• Altitude Rating: 10,100 ft
• Anode Rod: Magnesium
• Configuration: Tall
• Controls: LED Indicator
• Drain Valve Type: Brass
• Family Size: 2-5 People
• Fuel Type: Natural Gas
• FVIR Safety System: Yes
• Gas Valve: Self Powered
• Height Description: Tall
• Overheat Protection: Yes
• Pilot Light Window / Button: Yes
• Product Type: Power Vent Gas
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 45-160° F Range
• UEF: 0.68
• Vent: Power Vent
• Water Connection Location: Top
• Burner BTU Size (k): 42
• First Hour Delivery GPH: 82 gal/h
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Height to Gas Control: 11.5 in
• Net Weight: 142 lb
• Overall Depth: 20 in
• Overall Height: 66.33 in
• Overall Width: 20 in
• Product Diameter: 20 in
• Product Height (to top of unit): 58.75 in
• Product Height (to top of water inlet/outlet connections): 60.25 in
• Vent Size: 2" or 3" PVC, CPVC, ABS or PP
• Heating Capacity: 42000 BTU/H
• Rated Nominal Volume (Gallons): 40
• DOE Rated Storage Volume (Gallons): 40
• Energy Star: No
• Connectivity: Not WiFi Compatible
• Jacket Diameter (in.): 20
• Weight (lbs.): 142
• BTU Input: 42000
• First Hour Delivery Rating (Gal.): 83
• Water Connection Size (in.): 3/4" NPT
• Gas Connection Size (in.): 1/2"
• Tank Capacity: 40
• Capacity (gal.): 40
• Collection: RealMAX Choice
• Water Heater Type: Tank
• Water Heater Profile: Tall
• Water Heater Vent Type: Power Vent
• Water Heater Features: Overheat Protection, Temp Pressure Relief Valve
• Product Weight (lbs.): 142
• Ideal For: Households of up to 4 people
