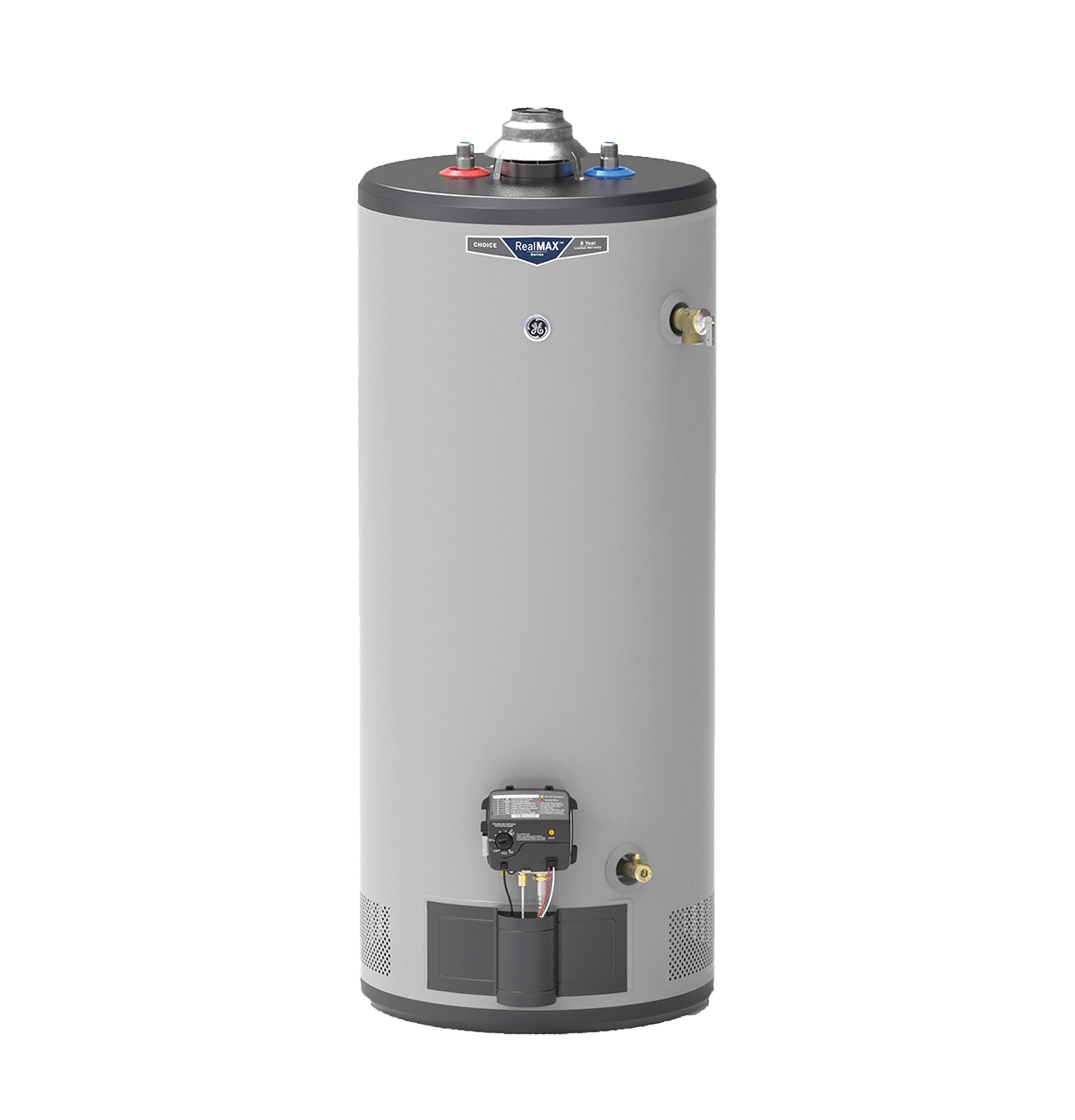

GE GG30S08BXR RealMAX Choice 30-Gallon Short Natural Gas Atmospheric Water Heater

Product Description

The GE RealMAX Choice GG30S08BXR is a 30-gallon short natural gas atmospheric water heater designed for households of 1 to 3 people. It features a 34K BTU burner for quick hot water replenishment. The SmartShield Safety System monitors air temperatures, and the self-diagnostic LED indicator reports gas system status. It has standard water and gas connections for easy installation.

• Provides hot water for a family of 1 to 3 persons.
• Features a durable design with an anode rod for corrosion protection.
• Monitors the surrounding air and automatically shuts off if abnormal temperatures are detected with SmartShield Safety System.

Product Highlights

This water heater offers a rust-proof brass drain valve and is designed for easy installation with standard connections.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GG30S08BXR
• Country of Origin: Domestic

Technical Specifications

• Unit Capacity: 30 Gallons
• Altitude Rating: 10,100 ft
• Anode Rod: Magnesium
• Bin Testing: Medium
• Configuration: Short
• Controls: LED Indicator
• Drain Valve Type: Brass
• Family Size: 1-3 People
• Fuel Type: Natural Gas
• FVIR Safety System: Yes
• Gas Valve: Self Powered
• Height Description: Short
• Overheat Protection: Yes
• Pilot Light Window / Button: Yes
• Product Type: Atmospheric Gas
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 45-160° F Range
• UEF: .6
• Vent: Atmospheric
• Water Connection Location: Top
• Burner BTU Size (k): 34
• First Hour Delivery GPH: 64 gal/h
• Hertz: 60
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Height to Gas Control: 11.25 in
• Overall Depth: 20 in
• Overall Height: 50.25 in
• Overall Width: 20 in
• Product Diameter: 20 in
• Product Height (to top of unit): 46.875 in
• Product Height (to top of water inlet/outlet connections): 48.375 in
• Vent Size: 2" or 3" Type B Vent
• Altitude: 10,100 '
• BTU Rating: 34,000 BTU/hr
• Capacity: 30 gallons
• Connection Type: 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection)
• Dimensions: 50-1/4" H x 20" W x 20" D
• Domestic/Import: Domestic
• Efficiency: 60% (UEF), 78% (Recovery Efficiency)
• Energy Factor: 0.6 UEF
• Energy Star Compliant: No
• First Hour Delivery: 64 GPH
• Ignition System: Standing Pilot
• Ignition Type: Standing Pilot
• Lead-Free/Contains Lead: Lead-Free
• Material: Steel (Tank), Magnesium (Anode Rod)
• Model: GG30S08BXR
• Mounting Type: Floor Mount
• Recovery Efficiency: 78 %
• Recovery Rate: 35.4 GPH (At 90°F Rise)
• Series: RealMAX Choice
• Temperature Rating: 45-160 °F (Adjustable Setting)
• Vent Diameter: 3 "
• Vent Type: Atmospheric
