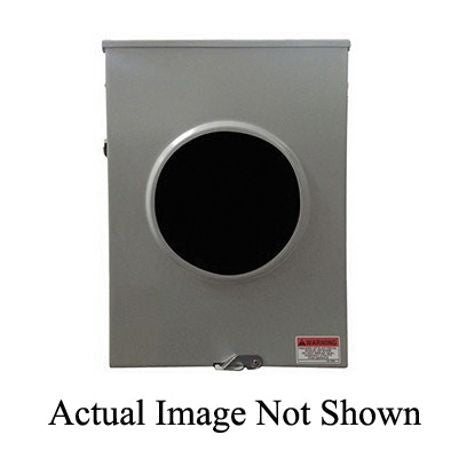

GE GEKS1CS1DTV 1-Position Meter Socket With Horn Bypass, 600 VAC, 200 A, 1 Phase, NEMA 3R Enclosure

Product Description

The GE GEKS1CS1DTV is a one-position meter socket designed for commercial and residential electrical distribution. This meter socket is rated for 600 VAC and 200 amperes and is suitable for use as service entrance equipment. The NEMA 3R enclosure allows for outdoor installation, making it ideal for various applications.

• G90 galvanized steel construction
• Rated for use as service entrance equipment
• Single meter socket for utility installations

Product Highlights

The GE GEKS1CS1DTV meter socket is built to last with corrosion-resistant materials. It features a robust design for utility setups and reliable electrical connections.

Product Information

Standard Information

• Brand: GE
• Manufacturer: General Electric

Technical Specifications

• Phase: 1
• Voltage Rating: 600 VAC
• Amperage Rating: 200 A
• Dimensions: 15 inches H x 11 inches W x 4.38 inches D
• Enclosure Type: NEMA 3R
• Wire Size: 8 AWG to 350 kcmil Cu/Al
• Feed Type: Overhead/Underground
• UNSPSC: 39121102
