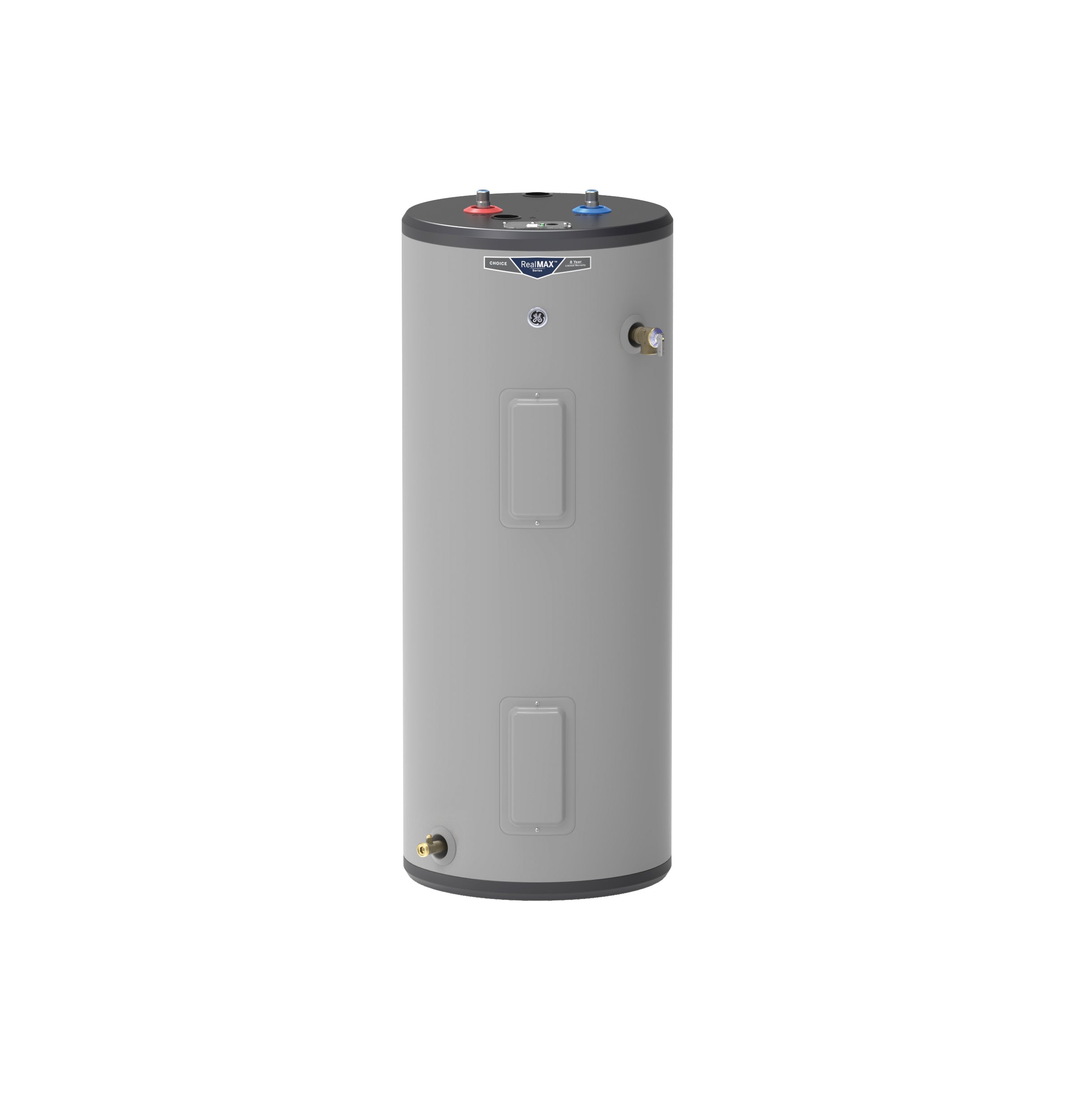

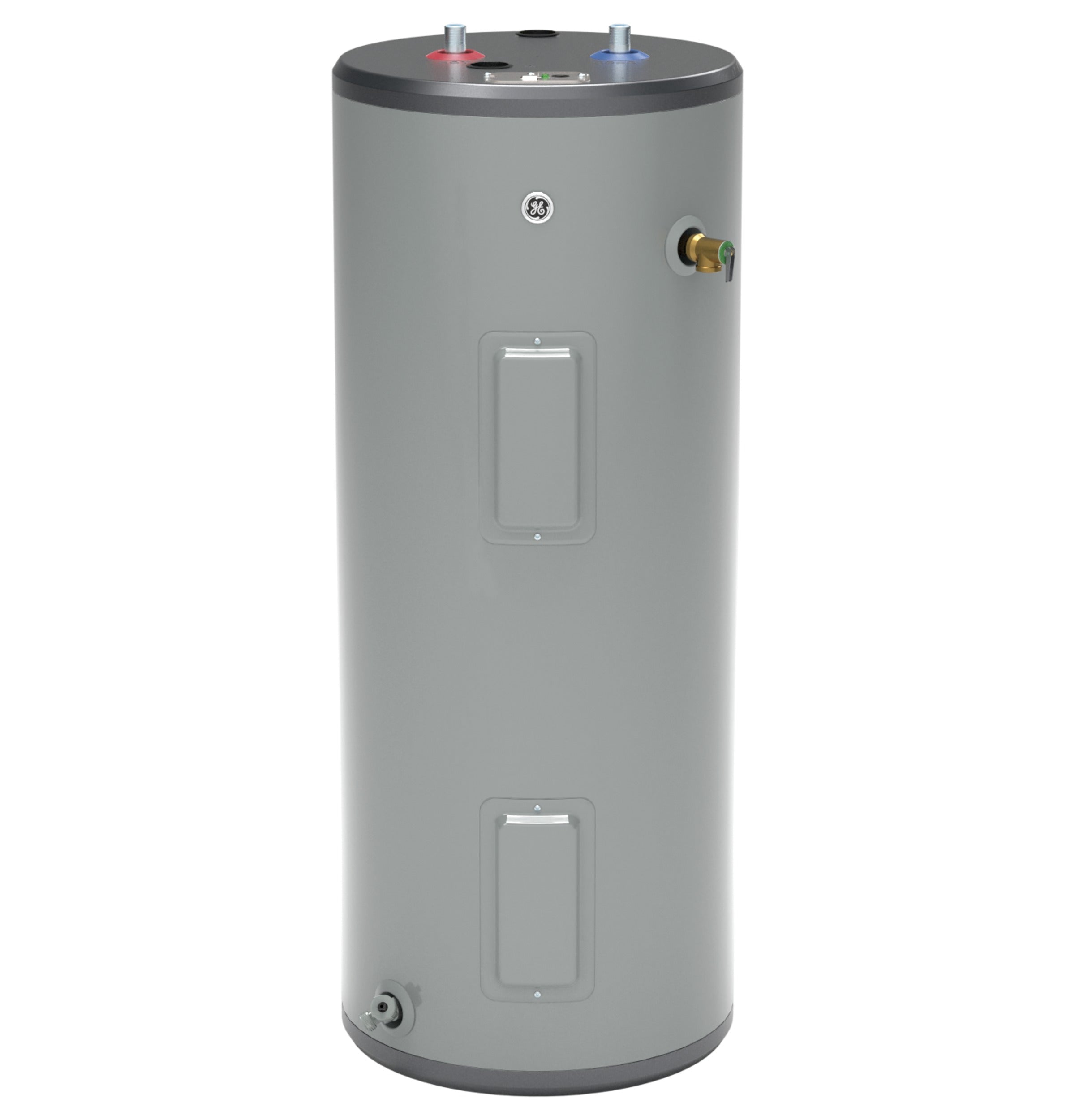

GE GE30T08BAM 30 Gallon Tall Electric Water Heater

Product Description

The GENERAL ELECTRIC GE30T08BAM 30 Gallon Tall Electric Water Heater provides ample hot water for households of 1 to 3 people. It features two 5500W heating elements for quick temperature increase and delivers 54 gallons of hot water in the first hour. The thermostat can be adjusted within a range of 90-150° F.

• Holds a true 30 gallons of water.
• Delivers 54 gallons of hot water in the first hour.

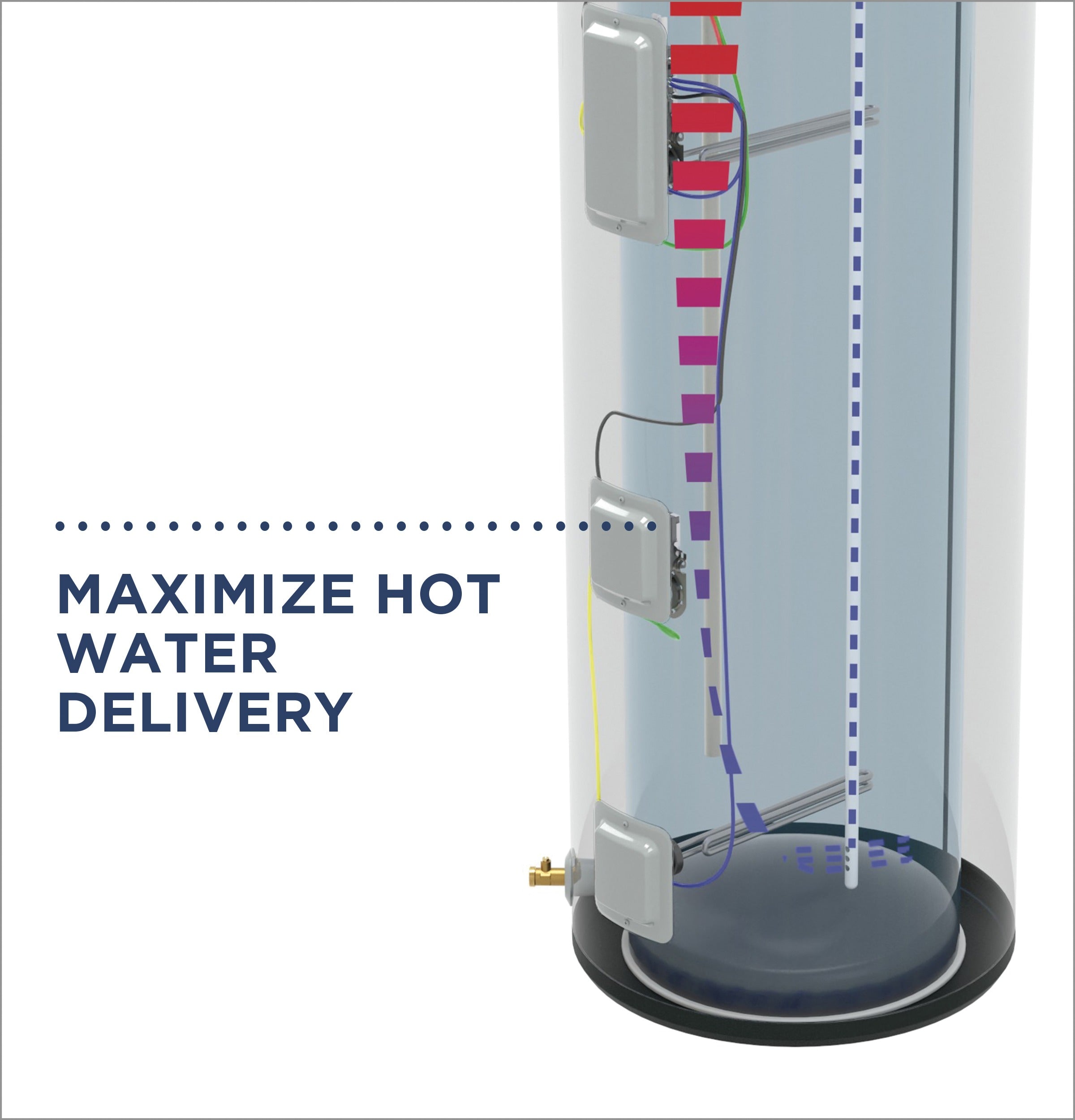

• Two 5500W heating elements for quick recovery.

Product Highlights

This electric water heater ensures a steady supply of hot water with its quick recovery and durable, rust-proof design.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GE30T08BAM

Technical Specifications

• APPEARANCE: Gray
• Color Appearance: Gray
• CAPACITY: 30 Gallons
• Unit Capacity: 30 Gallons
• Configuration: Tall
• Control Type: Thermostat
• Drain Valve Type: Brass
• Family Size: 1-3 People
• Foam Insulation: Yes
• Fuel Type: Electric
• GPH Recovery @ 90 Degrees F: 25.1
• Heating Element: Copper
• Height Description: Tall
• Installation Location: Indoor
• Insulation Thickness: 2.75 in
• Mobile Home Compatible: No
• Operating Modes: Standard Electric
• Point of Use: No
• Product Type: Electric Thermostat
• Rated Storage Capacity: 30
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 90-150° F Range
• Temperature Setting Factory Default: 120° F

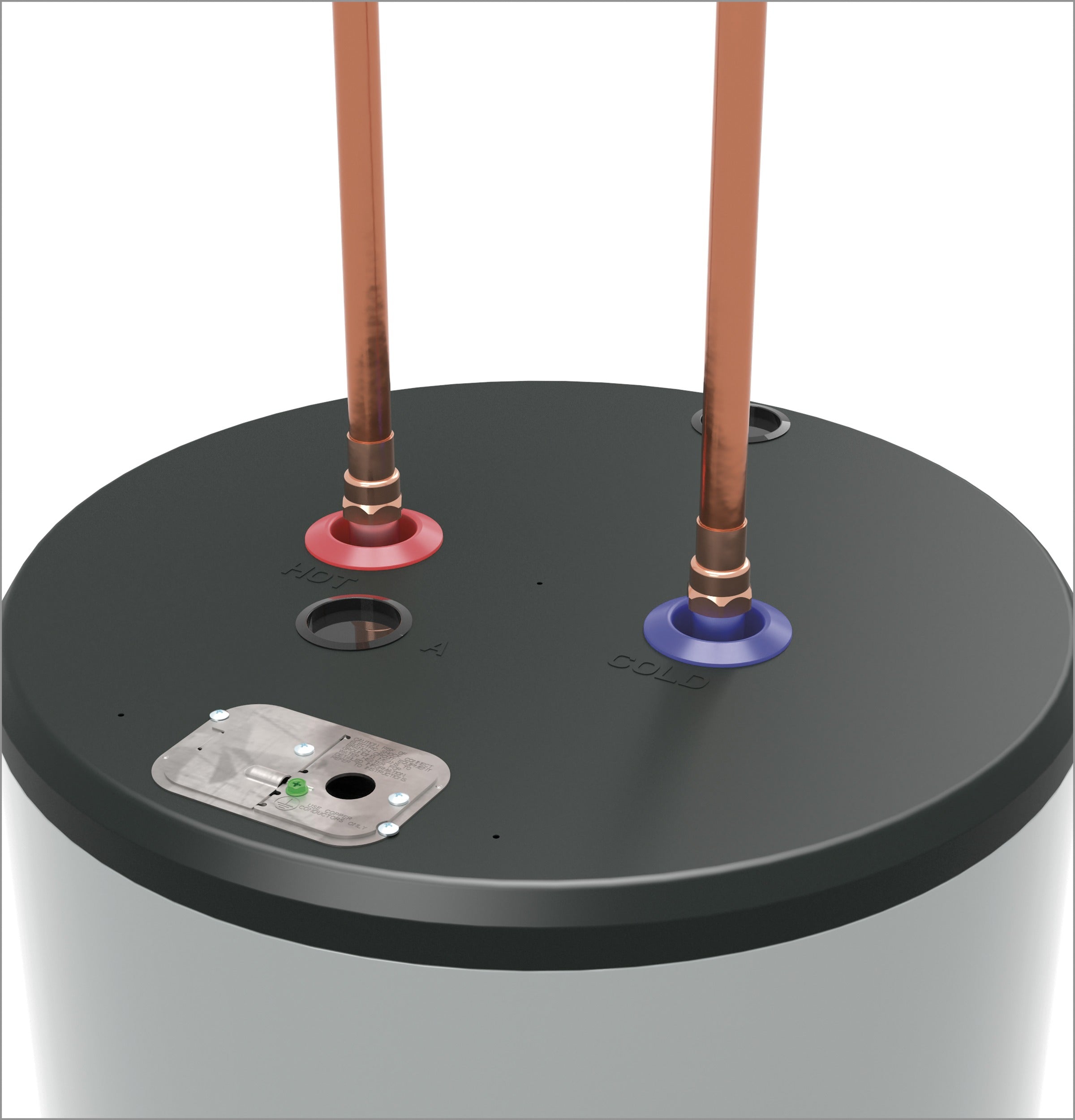

• Water Connection Location: Top
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• Energy Consumption (kWh/year): 3531
• First Hour Rate (FHR): 54 Gallons
• Heating - Electric - Heater Watts: 5500/5500
• Integrated Energy Factor: 0.92
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240 V
• Volts/Hertz: 240V; 60Hz
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Net Weight: 104 lb

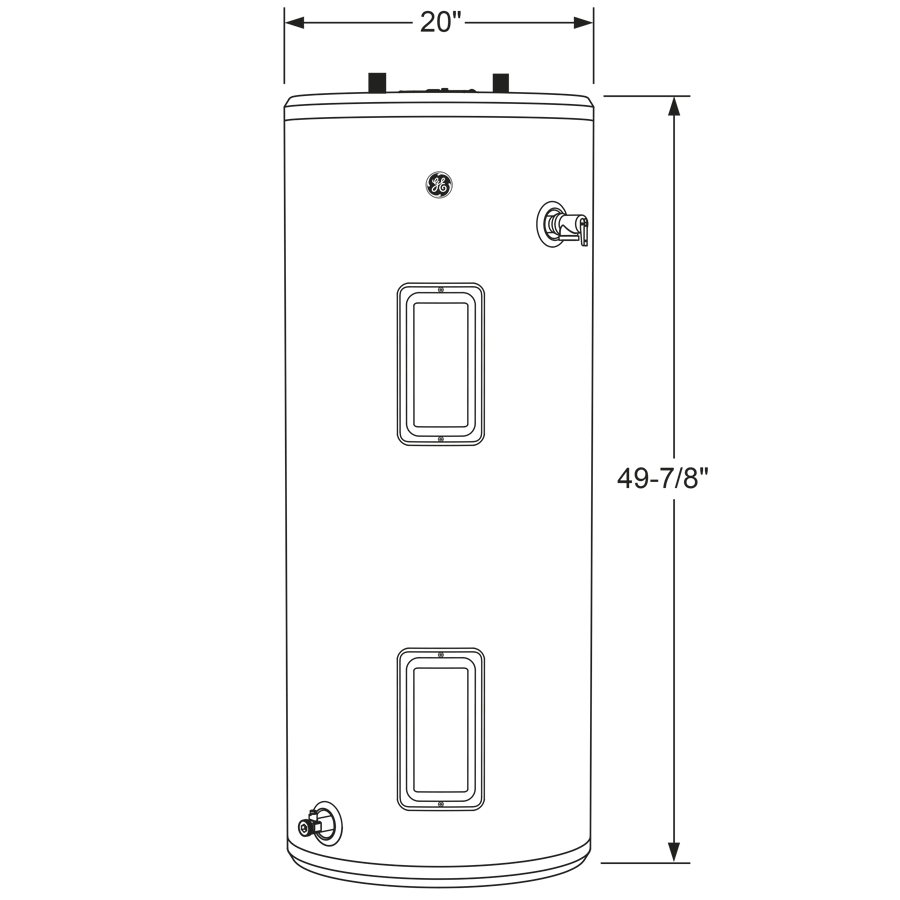

• Overall Depth: 20 in
• Overall Height: 51.375 in
• Overall Width: 20 in
• Product Diameter: 20 in
• Product Height (to top of unit): 49.875 in
• Product Height (to top of water inlet/outlet connections): 51.375 in
• Part Number: GE30T08BAM
• Certificate: cUL/UL Listed
• Maximum Voltage: 240V
