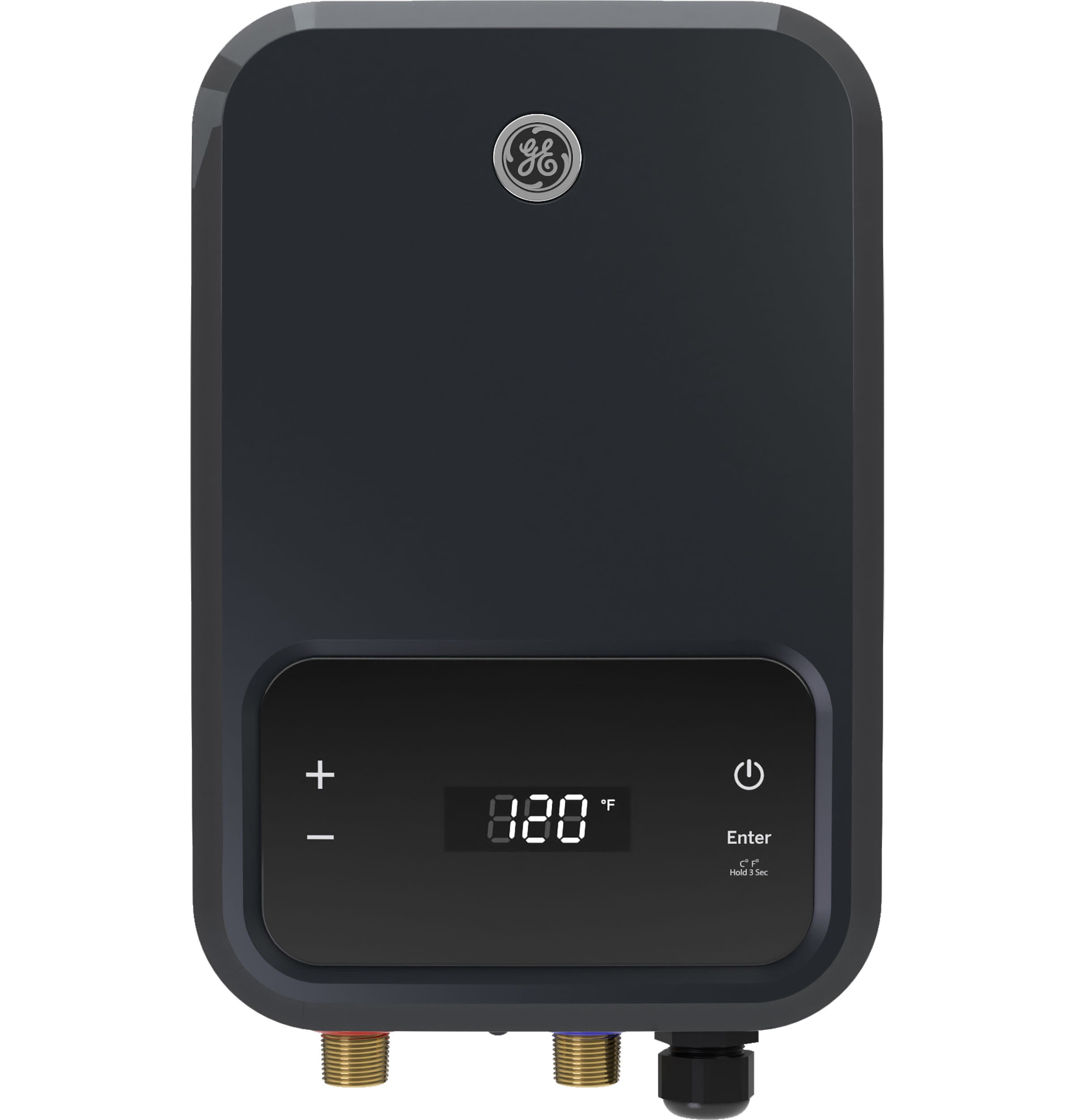

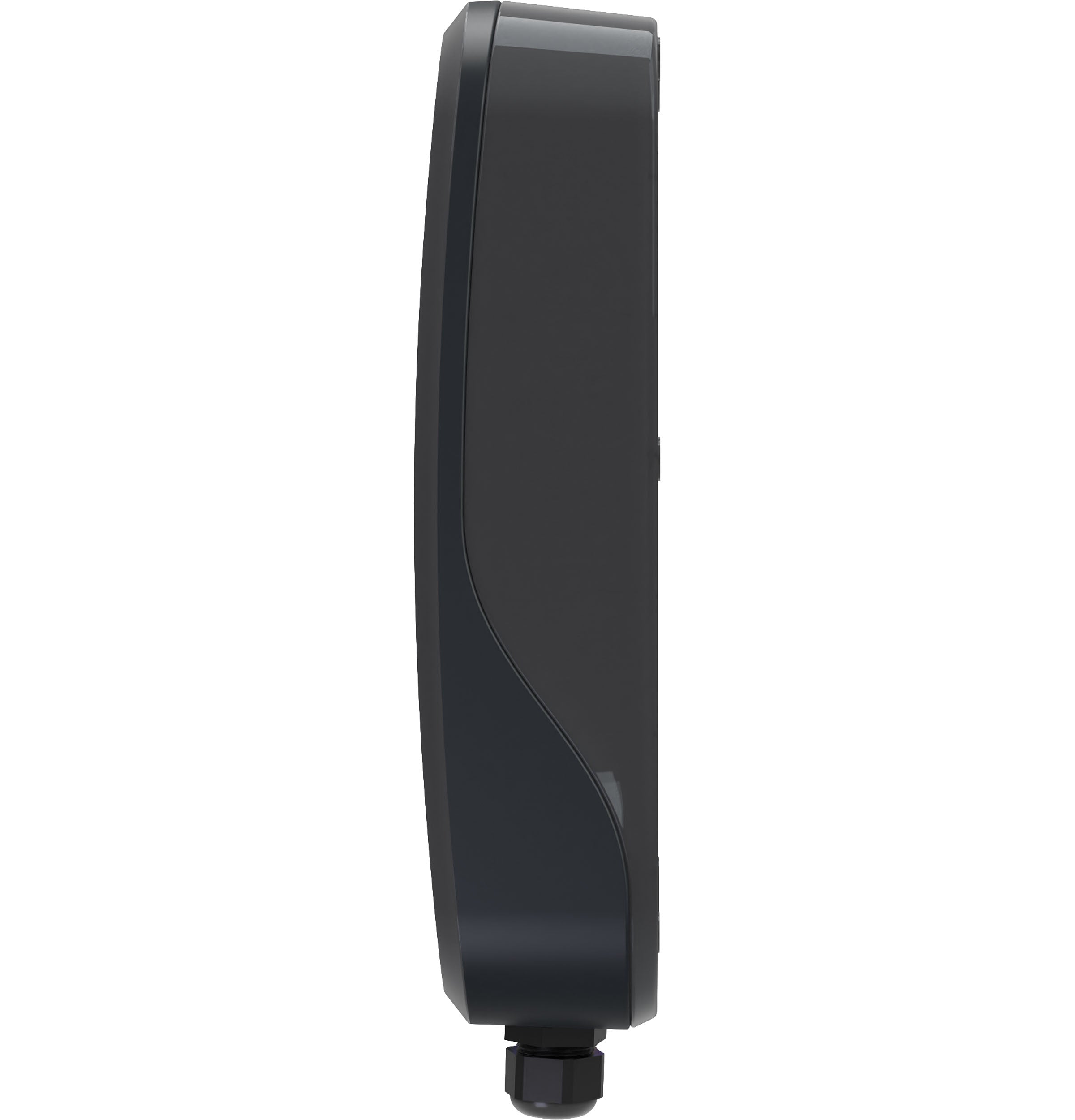

GE GE24DNHPDG tankless electric water heater 24kW

Product Description

The GE Tankless Electric Water Heater, model GE24DNHPDG, provides unlimited hot water on demand, making it a whole-home solution for houses or apartments. It delivers performance up to 5.3 gallons per minute (GPM). The intuitive design includes an easy-use touch screen for adjusting temperature and settings. It is energy efficient and its compact design saves space compared to tank-style water heaters.

• Unlimited Hot Water on Demand
• Whole Home Solution
• Performance Up to 5.3 Gallons Per Minute (GPM)
• Energy Efficient, conserves energy and water
• Digital Temperature Control, set temperatures in 1° increments from 86°F to 140°F

Product Highlights

Provides on demand hot water with intuitive design and energy efficient features.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GE24DNHPDG

Technical Specifications

• Color Appearance: Diamond Gray
• Installation: Wall Mounted
• Capacity: 5.3 Gallons Per Minute (GPM)
• Activation Flowrate (GPM): ≤ 0.5
• Cold/hot water connections (inches): 3/4" Cold Water Inlet; 3/4" Hot Water Outlet
• Configuration: Space Saver
• Controls: Adjust degree Fahrenheit/Celsius
• Adjustable Temperature: Digital Electronic Control
• Flowrate (GPM) @ 37 F inlet: 2.7
• Flowrate (GPM) @ 42 F inlet: 2.9
• Flowrate (GPM) @ 47 F inlet: 3.09
• Flowrate (GPM) @ 52 F inlet: 3.4
• Flowrate (GPM) @ 57 F inlet: 3.59
• Flowrate (GPM) @ 62 F inlet: 3.9
• Flowrate (GPM) @ 67 F inlet: 4.59
• Flowrate (GPM) @ 72 F inlet: 5.3
• Flowrate (GPM) @ 77 F inlet: 6
• Fuel Type: Electric
• Installation Location: Indoor
• Integrated Safety Devices: Flow sensor. High limit thermostat (on each heating element). Inlet Temperature Sensor. Material Rated for Ignition Containment. Outlet Temperature Sensor.
• Max. operating pressure (psi): 150
• Maximum Outlet Temperature (F): 140
• Min. operating pressure (psi): 25
• Point of Use: Whole Home
• Product Type: Electric Tankless
• Temperature adjustment amount (degree): 1
• Temperature Setting: 86-140° F Range
• Temperature Setting Factory Default: 105° F
• Uniform Energy Factor (UEF): >0.91
• Water Connection Location: Bottom

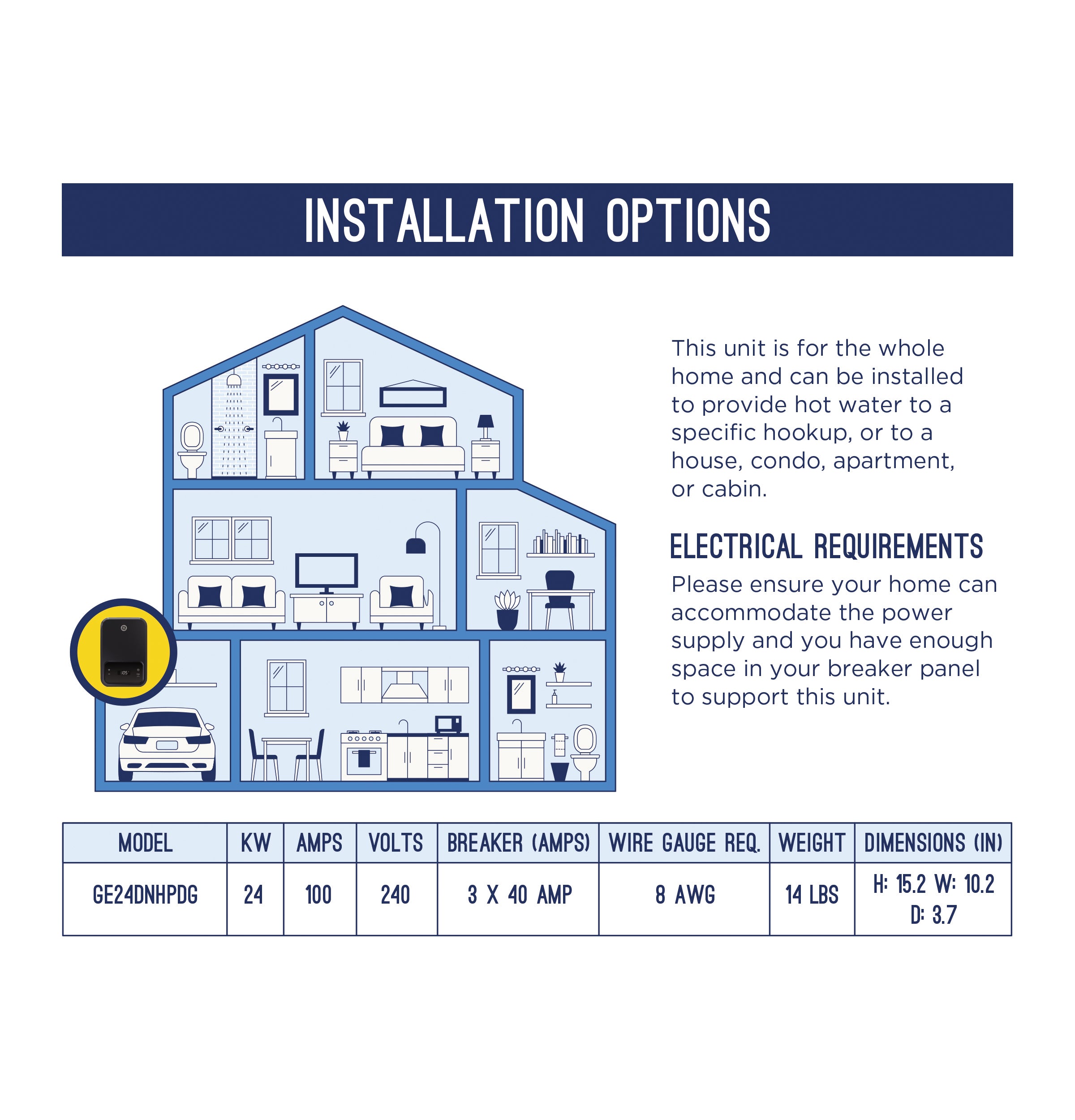

• Amps: 100.0
• Electrical Circuit Required: 40 Amp (x3)
• Electrical Requirements: 240V ; 120A
• First Hour Delivery GPH: 162
• Hertz: 60
• Power Rating-kW: 24
• Voltage (MAX): 240 V
• Overall Depth: 3.70 in
• Overall Height: 15.2 in
• Overall Width: 10.2 in
• Product Use: Residential Only
• Energy Star: No
• Built-In Recirculation Pump: No
• Connectivity: Not WiFi Compatible
• Mobile Home Certified: No
• Gallons Per Minute (GPM): 5.3 GPM
• Temperature Range: 86°F - 140°F
• Venting: Non-Vented
• Water Connection Size (in.): 1/2" NPT
