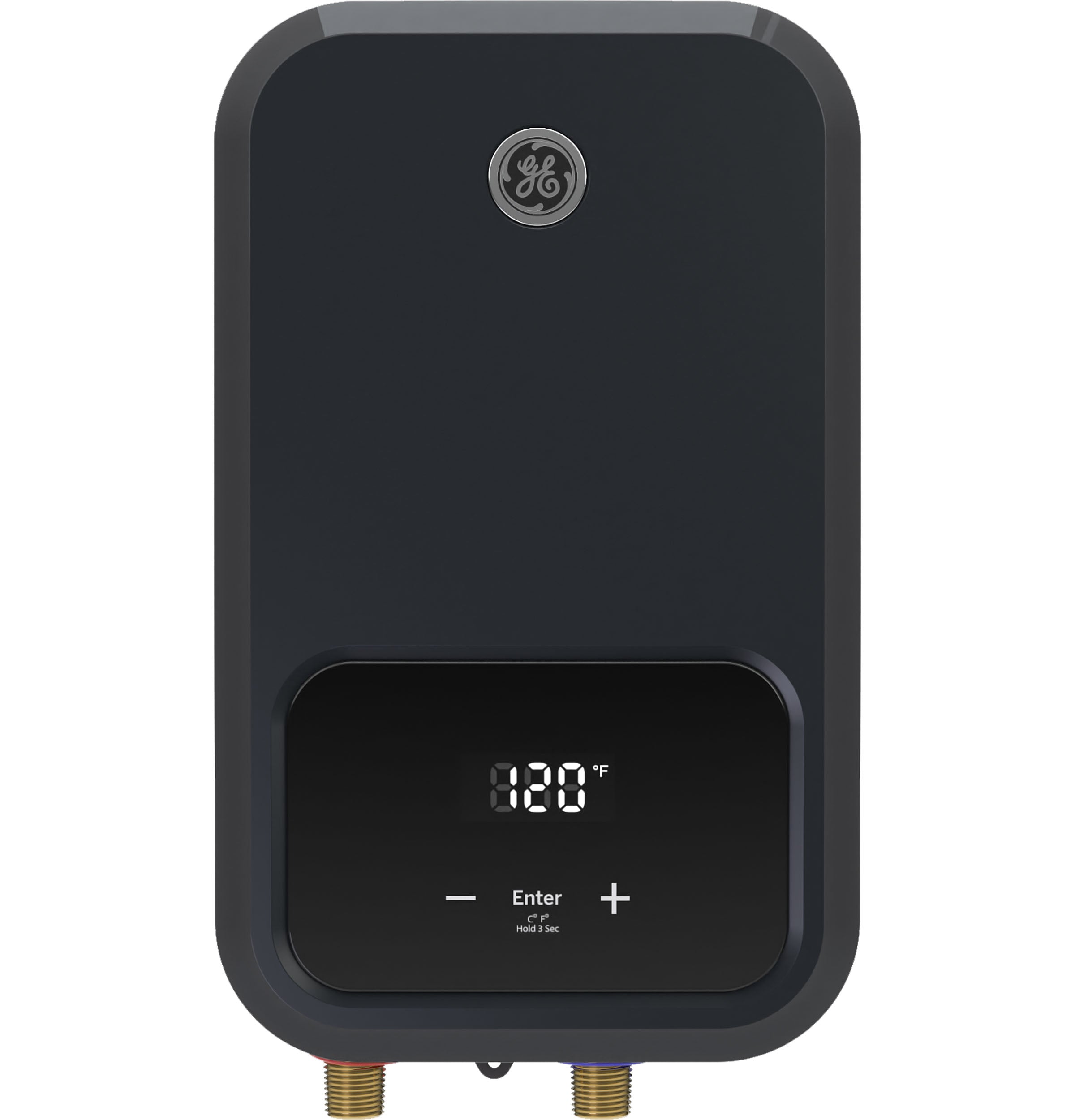

GE GE11SNHPDG Tankless Electric Water Heater 11 kW 2.5 GPM

Product Description

The GE Tankless Electric Water Heater GE11SNHPDG provides instant, continuous water flow. It installs at the point of use, delivering hot water where you need it. This unit can run 2 faucets and 1 shower simultaneously in warm climates. It features an easy-use touch screen and remote control. It saves energy by only using energy when hot water is in use.

• Provides unlimited hot water on demand.
• Features point of use installation.
• Performs up to 2.5 Gallons Per Minute (GPM).

Product Highlights

This tankless electric water heater features scale reduction technology, self modulating technology, and digital temperature control.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GE11SNHPDG

Technical Specifications

• Color Appearance: Diamond Gray
• Installation: Wall Mounted
• Capacity: 2.5 Gallons Per Minute (GPM)
• Activation Flowrate (GPM): ≤ 0.4
• Cold/hot water connections (inches): 1/2" Cold Water Inlet; 1/2" Hot Water Outlet
• Configuration: Space Saver
• Controls: Adjust degree Fahrenheit/Celsius
• Adjustable Temperature: Digital Electronic Control
• Flowrate (GPM) @ 37 F inlet: 1.1
• Flowrate (GPM) @ 42 F inlet: 1.29
• Flowrate (GPM) @ 47 F inlet: 1.29
• Flowrate (GPM) @ 52 F inlet: 1.5
• Flowrate (GPM) @ 57 F inlet: 1.7
• Flowrate (GPM) @ 62 F inlet: 1.89
• Flowrate (GPM) @ 67 F inlet: 2.2
• Flowrate (GPM) @ 72 F inlet: 2.5
• Flowrate (GPM) @ 77 F inlet: 2.79
• Fuel Type: Electric
• Installation Location: Indoor
• Integrated Safety Devices: Flow sensor. High limit thermostat (on each heating element). Inlet Temperature Sensor. Material Rated for Ignition Containment. Outlet Temperature Sensor.
• Max. operating pressure (psi): 150
• Maximum Outlet Temperature (F): 140
• Min. operating pressure (psi): 25
• Point of Use: Yes
• Product Type: Electric Tankless
• Remote Control: Yes
• Temperature adjustment amount (degree): 1
• Temperature Setting: 86-140° F Range
• Temperature Setting Factory Default: 105° F
• Uniform Energy Factor (UEF): >0.91
• Water Connection Location: Bottom
• Amps: 45.8
• Electrical Circuit Required: 50 Amp
• Electrical Requirements: 240V ; 50A
• Energy Consumption (kWh/year): 649
• Hertz: 60
• Power Rating-kW: 11
• Voltage (MAX): 240 V
• Overall Depth: 2.40 in
• Overall Height: 14.2 in
• Overall Width: 8.5 in
• Product Height (to top of unit): 14.2 in
• Installation Type: Indoor
• Product Use: Point of Use / Tankless
• Energy Star: No
• Built-In Recirculation Pump: No
• Connectivity: Not WiFi Compatible
• Mobile Home Certified: No
• Temperature Setting Range: 86°F - 125°F
• Venting: Non-Vented
• Water Connection Size (in.): 1/2" NPT
• Overall Depth (in.): 2.4
• Overall Height (in.): 14.2
• Overall Width (in.): 8.5
• Voltage: 240
• Circuit Breaker Amps: 50
• Maximum Flow Rate (gallons per minute): 1.1
• Dimensions: H 14.4 in, W 8.5 in, D 2.4 in
