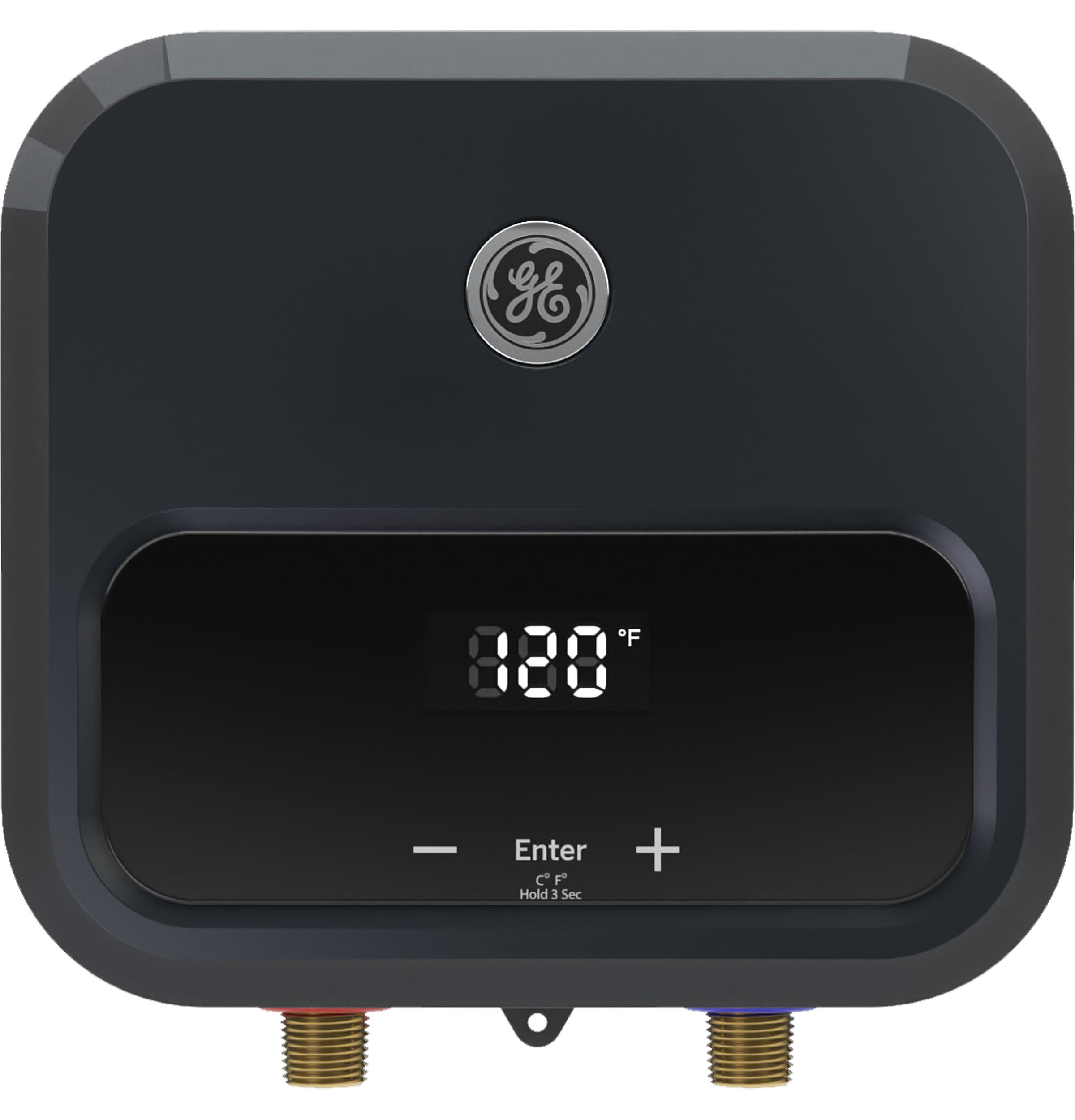

GE GE04SNLPDG Tankless Electric Water Heater 0.7 Gallons Per Minute

Product Description

The GE GE04SNLPDG tankless electric water heater provides on-demand, continuous water flow. Designed for point-of-use installation, it delivers hot water where needed. It performs up to 0.7 gallons per minute and features a remote control for convenient adjustments. The intuitive touch screen allows easy temperature and setting adjustments.

• Provides unlimited hot water on demand
• Installs at the point of use
• Offers performance up to 0.7 Gallons Per Minute (GPM)

Product Highlights

This tankless water heater conserves energy, saves space, and extends unit life with scale reduction technology.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: GE04SNLPDG

Technical Specifications

• Capacity: 0.7 Gallons Per Minute (GPM)
• Installation: Wall Mounted
• Activation Flowrate (GPM): ≤ 0.3
• Cold/hot water connections (inches): 1/2" Cold Water Inlet; 1/2" Hot Water Outlet
• Configuration: Space Saver
• Controls: Adjust degree Fahrenheit/Celsius
• Adjustable Temperature: Digital Electronic Control
• Flowrate (GPM) @ 37 F inlet: 0.3
• Flowrate (GPM) @ 42 F inlet: 0.3
• Flowrate (GPM) @ 47 F inlet: 0.4
• Flowrate (GPM) @ 52 F inlet: 0.4
• Flowrate (GPM) @ 57 F inlet: 0.5
• Flowrate (GPM) @ 62 F inlet: 0.5
• Flowrate (GPM) @ 67 F inlet: 0.6
• Flowrate (GPM) @ 72 F inlet: 0.69
• Flowrate (GPM) @ 77 F inlet: 0.8
• Fuel Type: Electric
• Installation Location: Indoor
• Integrated Safety Devices: Flow sensor. High limit thermostat (on each heating element). Inlet Temperature Sensor. Material Rated for Ignition Containment. Outlet Temperature Sensor.
• Max. operating pressure (psi): 150
• Maximum Outlet Temperature (F): 140
• Min. operating pressure (psi): 25
• Point of Use: Yes
• Product Type: Electric Tankless
• Remote Control: Yes
• RV Ready: Yes
• Temperature adjustment amount (degree): 1
• Temperature Setting: 86-125° F Range
• Temperature Setting Factory Default: 105° F
• Uniform Energy Factor (UEF): >0.91
• Water Connection Location: Bottom
• Amps: 29.2
• Electrical Circuit Required: 30 Amp
• Electrical Requirements: 120V ; 60HZ ; 30A
• Energy Consumption (kWh/year): 649
• Hertz: 60
• Power Rating-kW: 3.5
• Voltage (MAX): 120 V
• Net Weight: 4.7 lb
• Overall Depth: 3.40 in
• Overall Height: 9.8 in
• Overall Width: 9.9 in
• Product Diameter: 9.900 in
• Product Height (to top of unit): 9.8 in
