Product Description
The GENERAL ELECTRIC AZVS15ERXWA Zoneline Heat Pump Unit features variable speed inverter technology and ICR with a 15,000 BTU, 265 Volt. Designed and assembled in America, it uses environmentally friendly refrigerants. Variable speed operation provides shorter recovery time, improved efficiency, and better dehumidification. Advanced defrost capability allows for extended heat pump operation.
- Designed & Assembled in America
- Eco-Friendly Build
- Inverter Technology
Product Highlights
This GE Zoneline unit offers efficient, quiet operation with advanced technology for optimal comfort and energy savings in commercial spaces. Built-in Wifi, Powered by SmartHQ™
Product Information
Standard Information
-
Brand: GENERAL ELECTRIC
-
Manufacturer Part Number: AZVS15ERXWA
-
Country of Origin: America
Technical Specifications
-
Accessories: Accessories Required for Installation
RAB42 - Wall Case
Outdoor Grille
-
CFM Indoor Fan High: 525
-
CFM Indoor Fan Low: 250
-
Cooling BTUH (265V): 14300
-
Cooling BTUH (MAX): 14300
-
Cooling EER (BTUH / Watt): 11
-
Dehumidification (pts./hr.): 2
-
Central Desk Control Compatibility: Yes
-
Chassis Type: Slide-In
-
Control Type: Standard Microcomputer
-

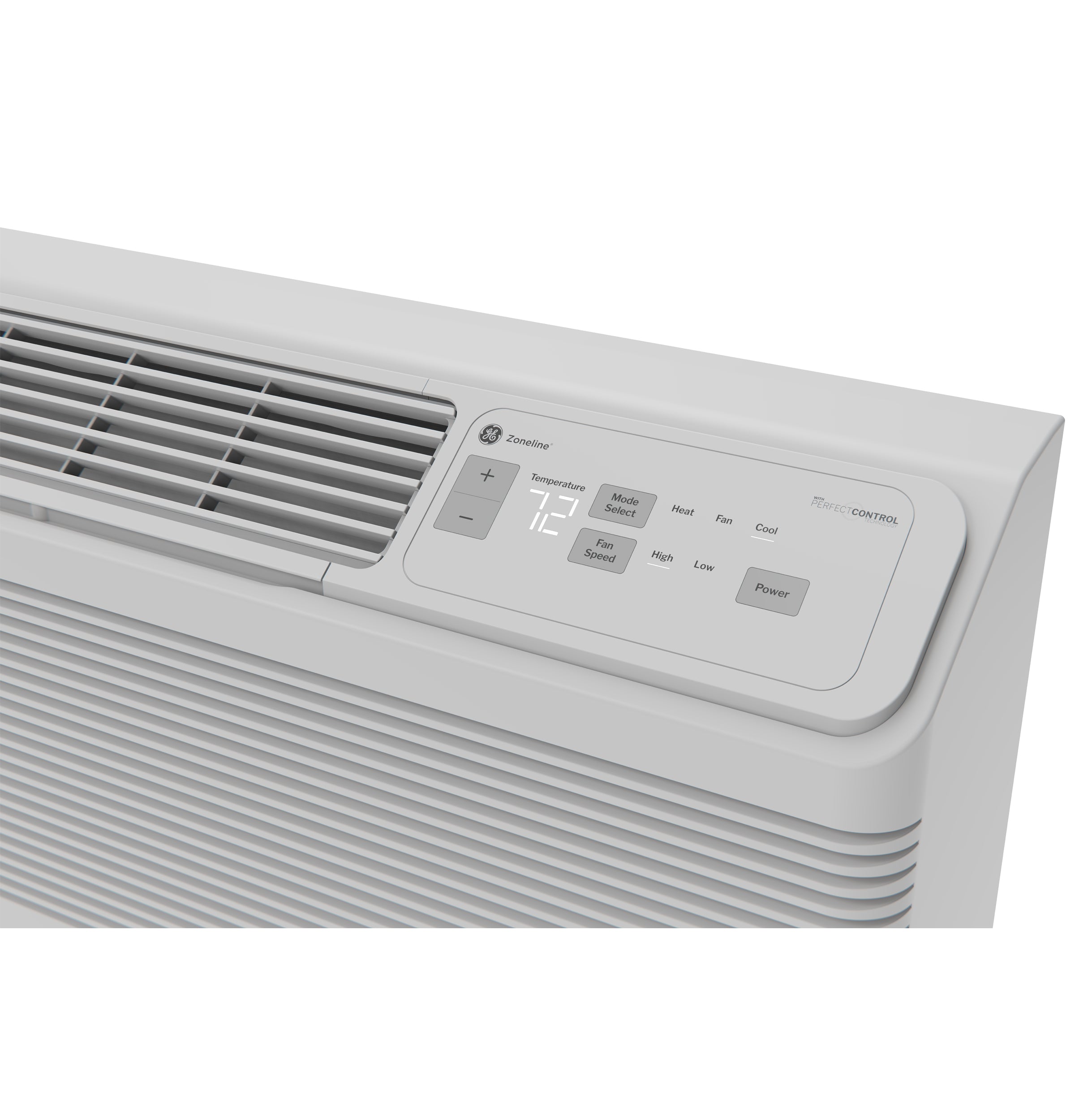

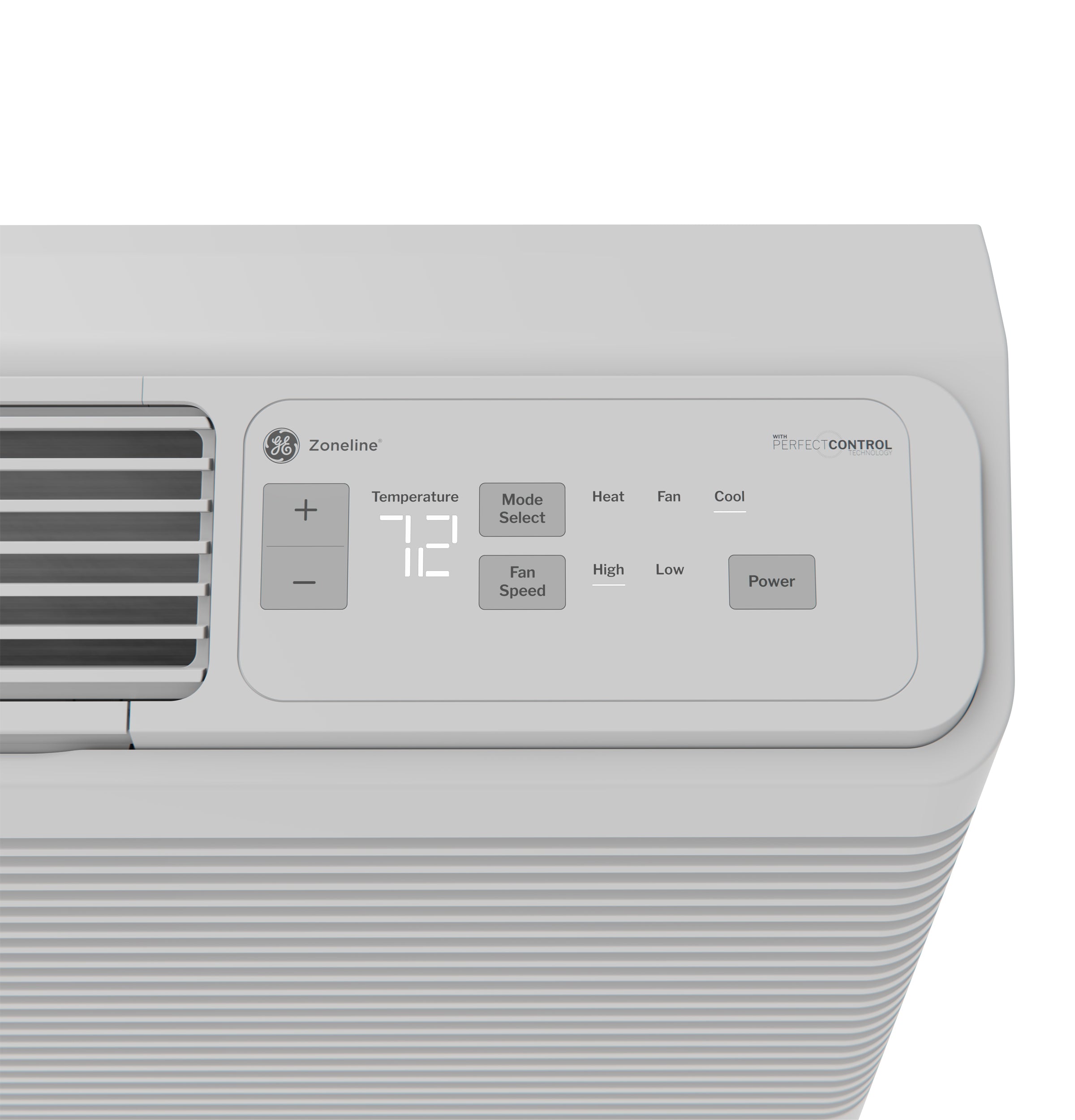

Tactile touch pad with LED Display: Yes
-
Corrosion Treated: Yes
-
Discharge Grille: 2-position
-
Electronic Micro Computer Control: Yes
-
Fan Cycle Switch: Yes
-
Fan Motor: 2
-
EC Controlled: Yes
-
Fan Speed Control: Yes
-
Fan Speed Selections: Hi/Low Cooling, Hi/Low Heating, Hi/Low Fan Only
-
Filter Type: Rigid Frame, Slide-Out
-
Freeze Sentinel: Yes
-
Heat - Cool: Yes
-
Heat Pump: Yes
-
Heat Sentinel: Yes
-
Heating - Reverse Cycle - COP: 3 .5
-
Heating System: E Heat/High Demand/Hybrid/Boost/HP Only
-
HSPF2 Rating: 7
-
Internal Condensate Removal (ICR): Yes
-
Louver Style: Reversible
-
Manual Vent Control: Hidden
-
Power Factor: 95
-
Product Type: Packaged Terminal Air Conditioners (PTAC)
-
Refrigerant Charge (oz.): 29
-
Refrigerant Type: R454B
-
Rotary Compressor: Yes
-
SEER2: 16
-
Sensible Heat Ratio: 0.75
-
Temperature Limiting: Electronic 24-Step
-
Temperature Range: 60 - 85 F
-
Vent Control: 3-position
-
Venting Features: Concealed Manual Vent Control, Vent Air Filter, Outdoor Vent Control - 3 Positions
-
WiFi Connect: Built-In
-
Zoneline Features: "Smart Fan" Fan Cycle Control, Heat Sentinel, Freeze Sentinel, Automatic Indoor Frost Control, Universal Heaters, Auto Power Recovery, Remote Thermostat Compatibility, Central Desk Control Compatibility, Random Twist/Length Segment Tangential Blower
-
Cooling - Amperes: 5.1
-
Cooling - Watts: 1295
-
Heating BTUH: 4,000 - 14,000
-
Heating - Electric - Heater Amps: 4.5
-
Heating - Electric - Heater Watts: 1165
-
Voltage (MAX): 265 V
-
Overall Depth: 20.8125 in
-
Overall Height: 16 in
-
Overall Width: 42 in
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 42
-
Compressor: Standard
-
Energy Star: No
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump with Back-Up Electric
-
EER2 (@265V): 12.8
-
Cooling Amps (@265V): 6.3
-
Cooling Watts (@265V): 1345
-
Electric Heat Strip Size (kW - @265V): 2.5 / 3.5 / 4.9
-
Electric Heating BTUs (@265V): 8100 / 11600 / 16300
-
Electric Heating Amps (@265V): 9.3 / 13.1 / 18.4
-
Electric Heating Watts (@265V): 2400 / 3400 / 4800
-
Heat Pump BTUs (@265V): 14000
-
COP (@265V): 3.4
-
Heat Pump Heating Amps (@265V): NA
-
Heat Pump Heating Watts (@265V): NA
-
Vent Location: Front Top
-
Make-Up Air: No
-
Energy Saver Mode: No
-
Fan Speeds: 2
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: No
-
Remote Control: No
-
Fresh Air Intake: Yes
-
Sleep Mode: Yes
-
Voltage: 265-277V
-
Connection: Hardwire or Direct Connect
-
Circuit Breaker Size (Amps): 15 / 20 / 30
-
Cord Length: NA
-
Cooling BTU: 15,000
-
Heating BTU: 14,000
-
Air CFM (Low): 250
-
Air CFM (High): 525
-
Heat: Yes
-
Remote Included: No
-
ADA Compliant: No
-
Dehumidification (Pints/Day): 2
-
Wi-Fi: Yes
-
Operation: Variable Speed Inverter Technology
-
Ideal For: Hotels, motels, and various commercial applications
-
Type of Through-the-Wall: 42" PTAC
