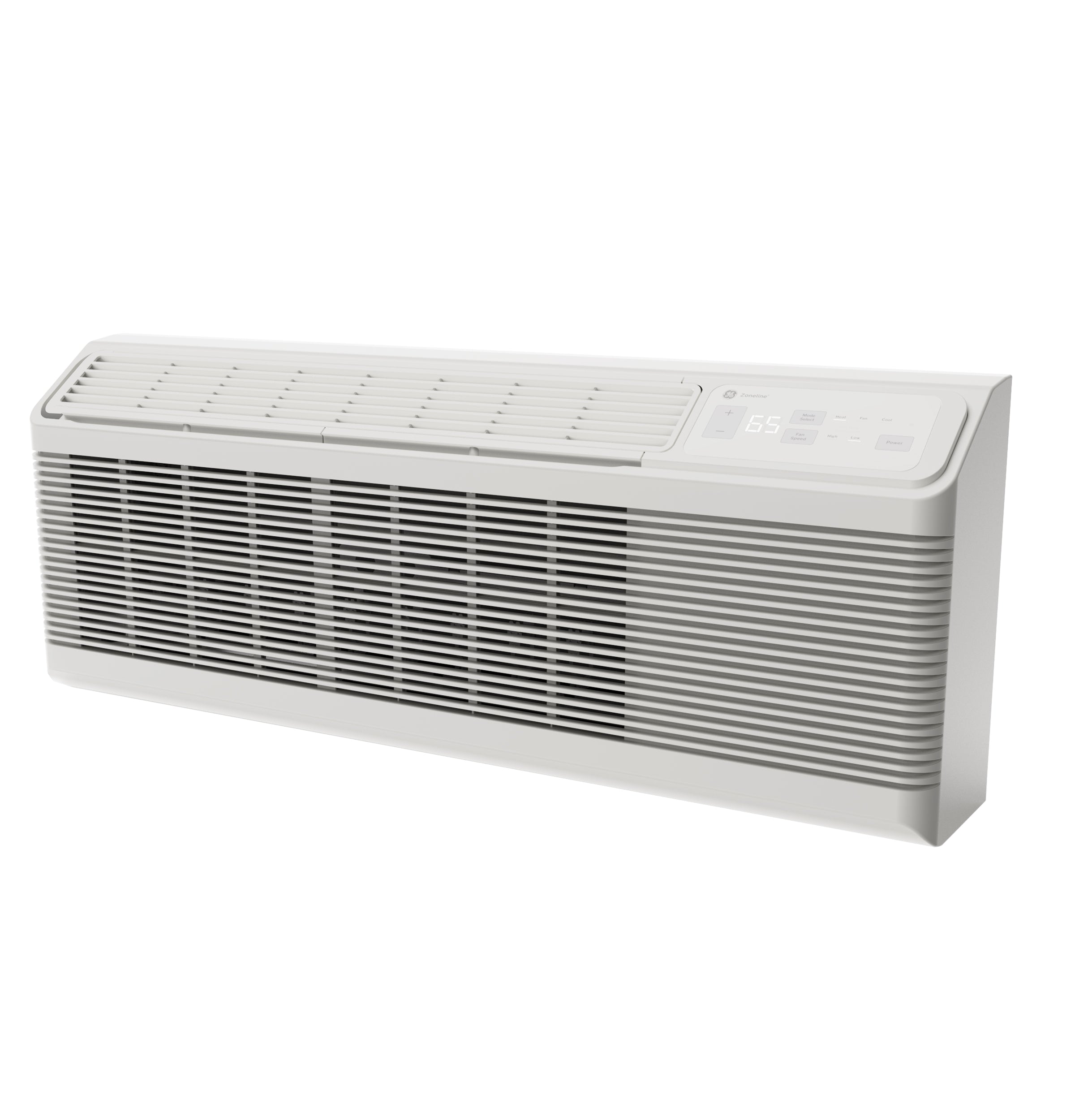

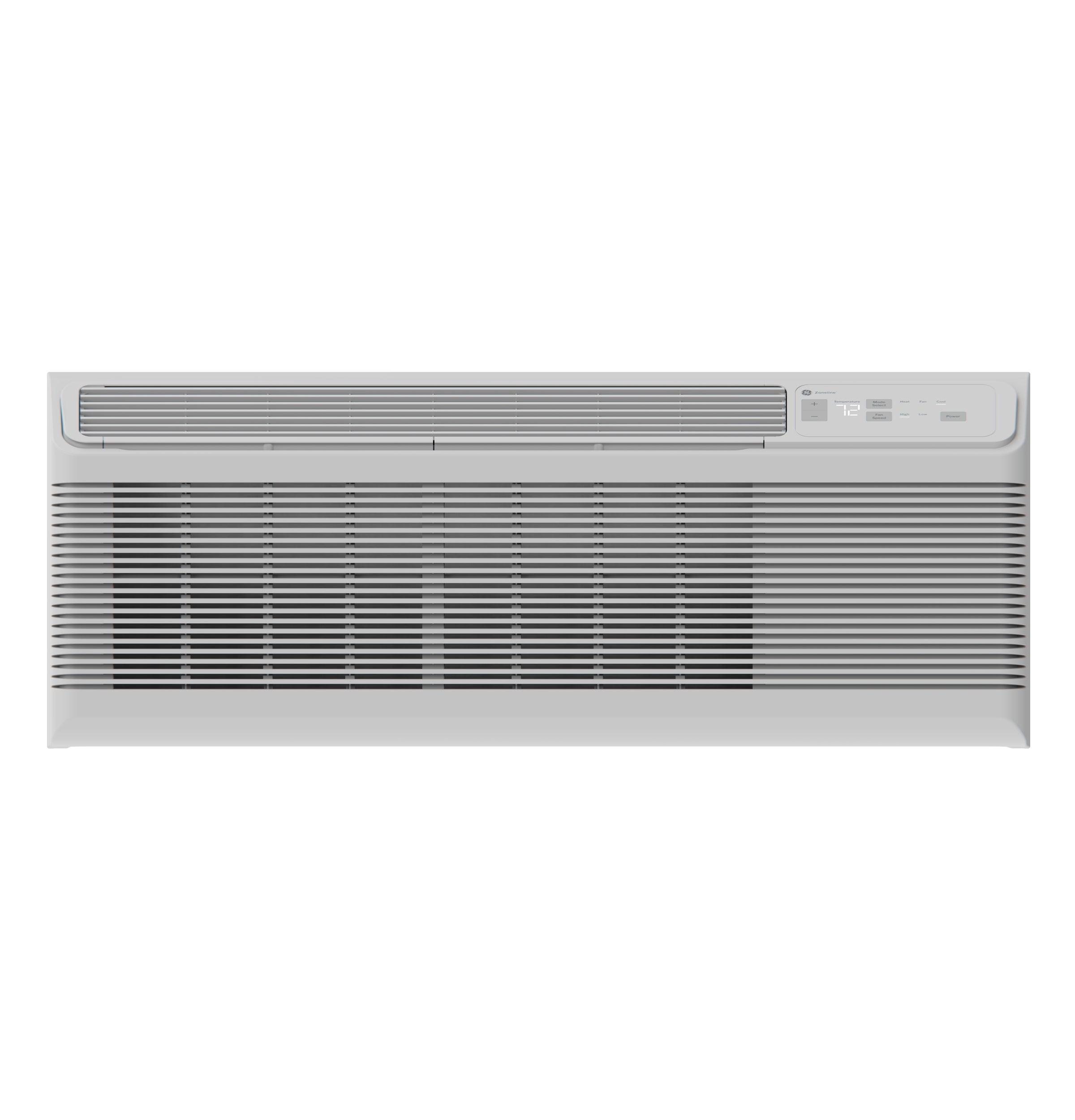

GE AZVS15DMXWA Zoneline Heat Pump Unit with Variable Speed Inverter Technology and Makeup Air 15,000 BTU, 230/208 Volt

Product Description

The GE AZVS15DMXWA Zoneline Heat Pump Unit features variable speed inverter technology and makeup air, operating at 15,000 BTU and 230/208 Volt. Designed and assembled in America, this eco-friendly unit uses environmentally friendly refrigerants. Its variable speed operation provides shorter recovery time, improved efficiency, and enhanced dehumidification. The advanced defrost capability allows for extended heat pump operation down to 0°F.

• Designed & Assembled in America
• Eco-Friendly Build
• Inverter Technology

Product Highlights

This GE Zoneline heat pump offers efficient heating and cooling with advanced features for optimal comfort and environmental responsibility.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: AZVS15DMXWA
• Country of Origin: America

Technical Specifications

• ACCESSORIES: Accessories Required for Installation RAB42 - Wall Case Outdoor Grille
• Color Appearance: Grey White
• CFM Indoor Fan High: 525
• CFM Indoor Fan Low: 250
• Cool BTUH (208V): 14200
• Cool BTUH (230V): 14300
• Cooling BTUH (MAX): 14300
• Cooling EER (BTUH / Watt): 11.0 / 10.9
• Dehumidification (pts./hr.): 2
• Central Desk Control Compatibility: Yes
• Chassis Type: Slide-In

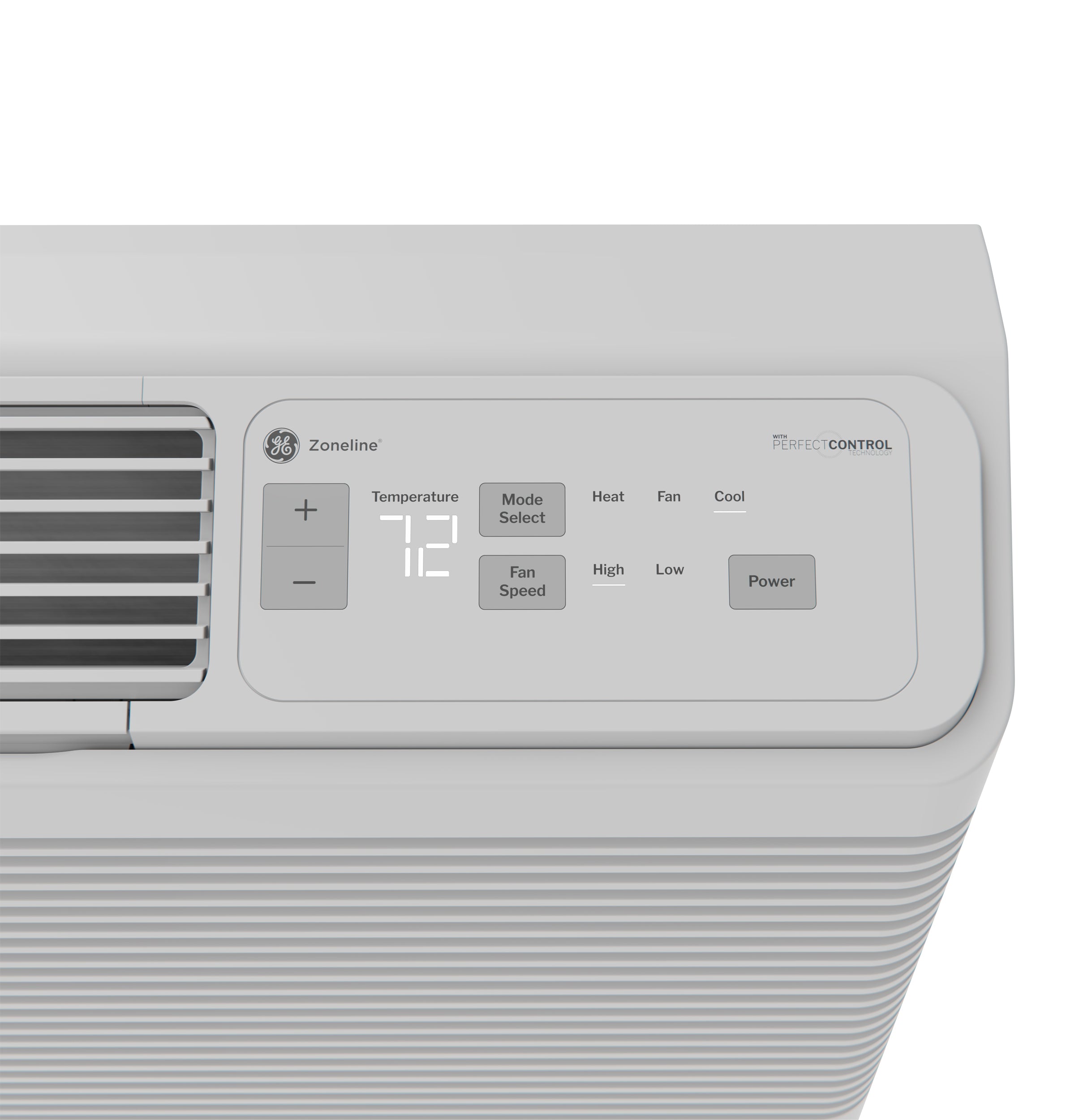

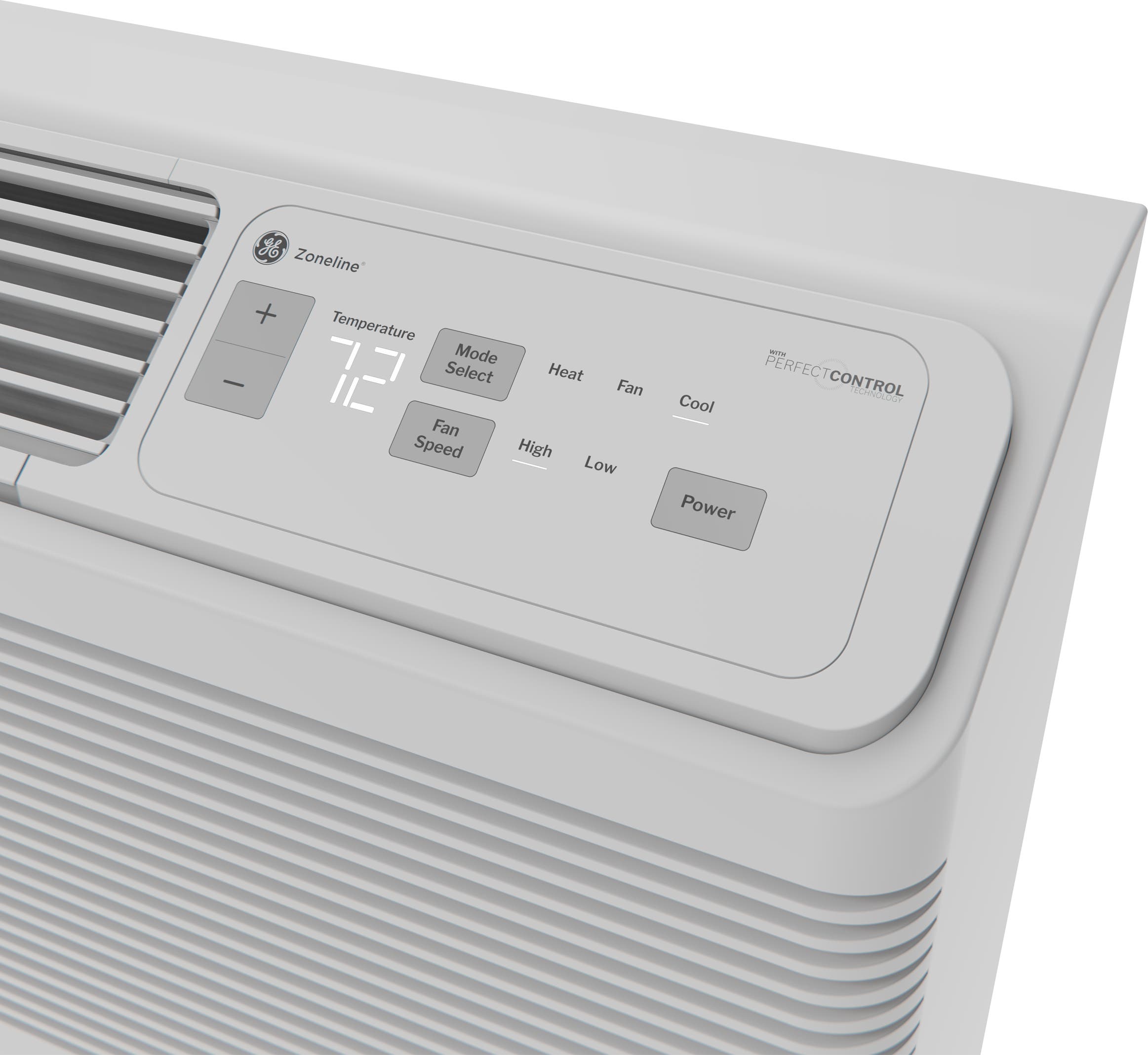

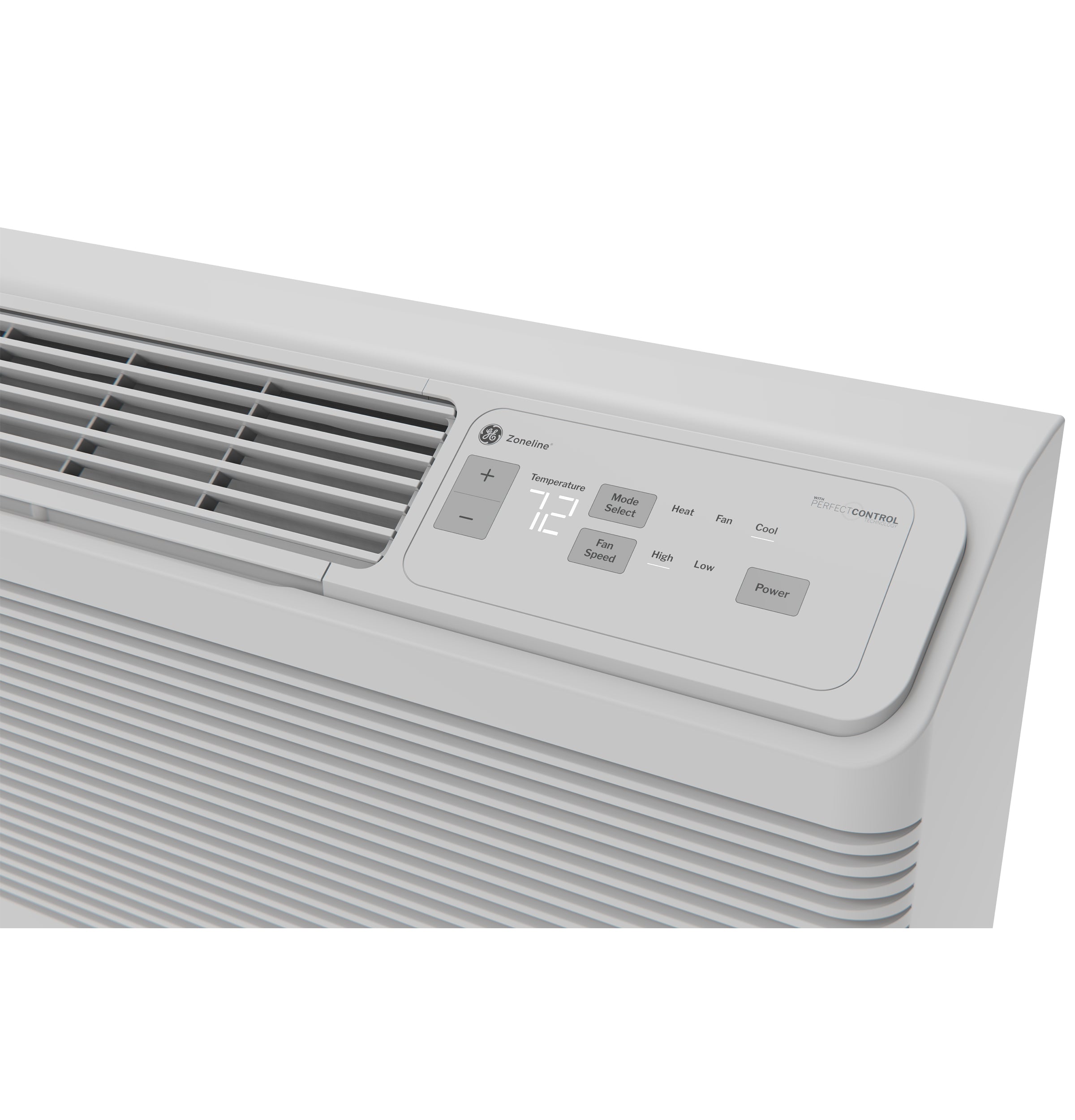

• Control Type: Standard Microcomputer
• Corrosion Treated: Yes
• Discharge Grille: 2-position
• Electronic Micro Computer Control: Yes
• Fan Cycle Switch: Yes
• Fan Motor: 2
• Fan Speed Control: Yes
• Fan Speed Selections: Hi/Low Cooling Hi/Low Heating Hi/Low Fan Only
• Filter Type: Rigid Frame Slide-Out
• Freeze Sentinel: Yes
• Heat - Cool: Yes
• Heat Pump: Yes
• Heat Sentinel: Yes
• Heating - Reverse Cycle - COP: 3.4/3.4
• Heating System: E Heat/High Demand/Hybrid/Boost/HP Only
• HSPF2 Rating: 7
• Louver Style: Reversible
• Manual Vent Control: Hidden
• Power Factor: 95
• Product Type: Packaged Terminal Air Conditioners (PTAC)
• Refrigerant Charge (oz.): 29
• Refrigerant Type: R454B
• Rotary Compressor: Yes
• SEER2: 16
• Sensible Heat Ratio: 0.75
• Temperature Limiting: Electronic 24-Step
• Temperature Range: 60 - 85 F
• WiFi Connect: Built-In
• Zoneline Features: "Smart Fan" Fan Cycle Control Heat Sentinel Freeze Sentinel Automatic Indoor Frost Control Universal Heaters Auto Power Recovery Remote Thermostat Compatibility Central Desk Control Compatibility Random Twist/Length Segment Tangential Blower
• Cooling - Amperes: 5.8/6.4
• Cooling - Watts: 1295/1300
• Heating BTUH: 4,000 - 14,000
• Heating - Electric - Heater Amps: 5.2/5.7
• Heating - Electric - Heater Watts: 1165
• Voltage (MAX): 230 V
• Voltage (MIN): 208 V
• Overall Depth: 20.8125 in
• Overall Height: 16 in
• Overall Width: 42 in
