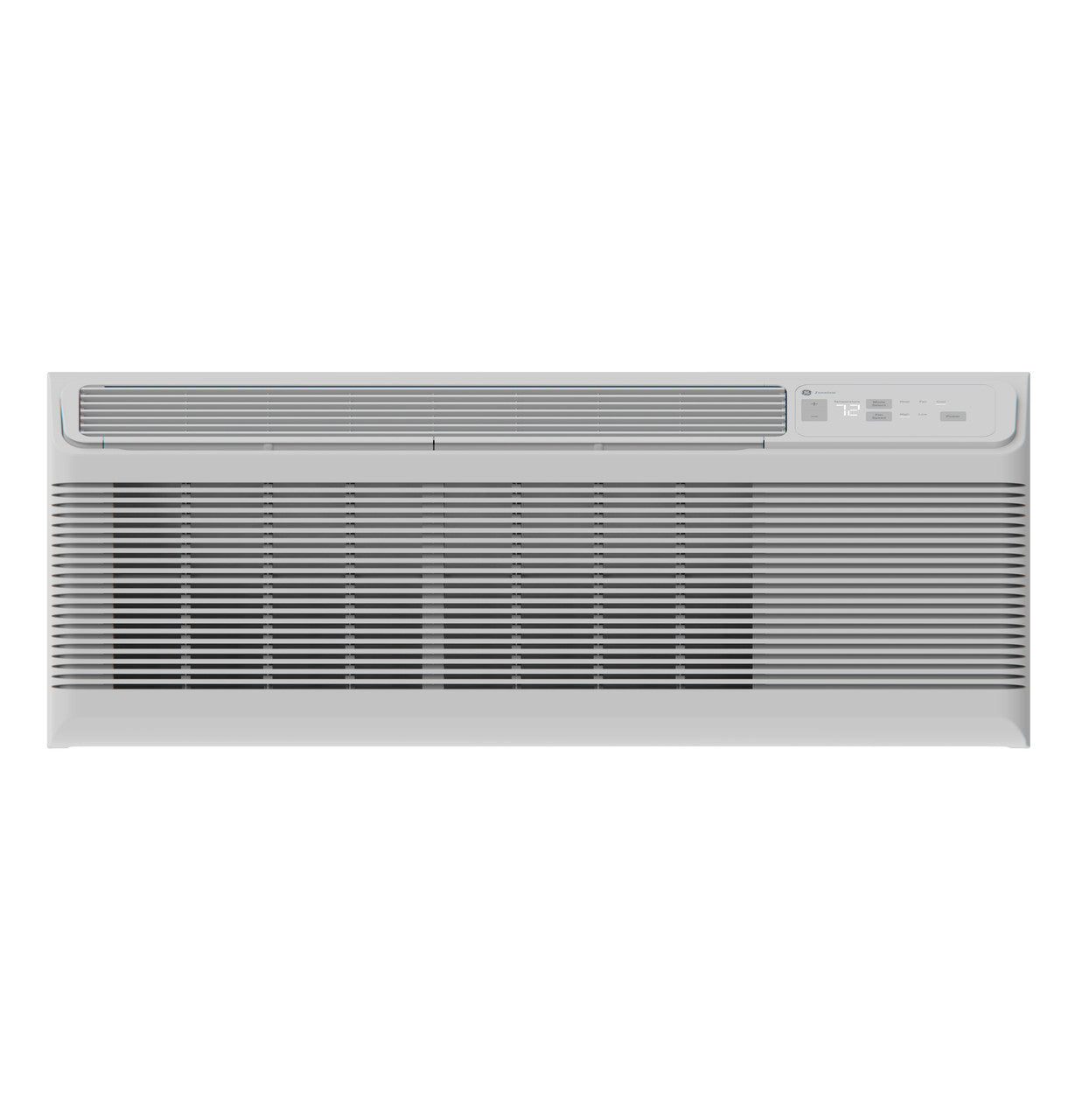

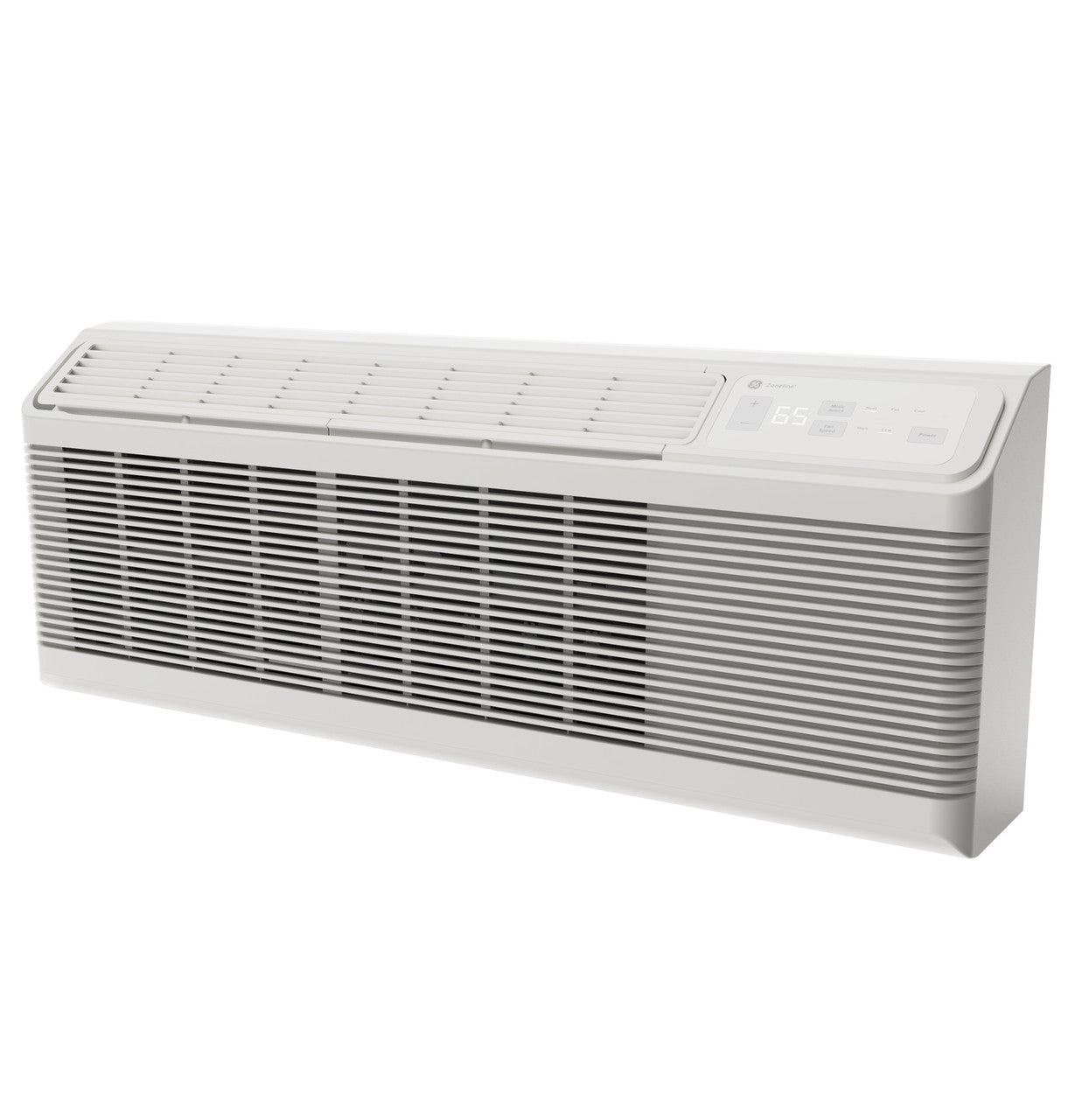

GE AZHS12DRXXA Zoneline Heat Pump Fixed Speed Unit with Corrosion Protection 12,000 BTU, 230/208 Volt

Product Description

The GE AZHS12DRXXA Zoneline Heat Pump is a fixed speed unit with corrosion protection, operating at 230/208 Volts and 12,000 BTU. Designed and assembled in America, it uses R454B refrigerant and features electronic touch controls with an LED display. It also has a quiet operation due to its baked-on mastic sound barrier.

• Features a corrosion protection package with SMC basepan and bulkhead.
• Equipped with electronic temperature limiting and a fresh air vent.
• Operates as a heat pump down to 25°F with a boost heat option.

Product Highlights

This GE Zoneline heat pump offers efficient heating and cooling with advanced features like corrosion protection and quiet operation.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: AZHS12DRXXA
• Country of Origin: US

Technical Specifications

• ACCESSORIES: Accessories Required for Installation RAB42 - Wall Case Outdoor Grille
• Color Appearance: Grey White
• CFM Indoor Fan High: 440
• CFM Indoor Fan Low: 305
• Cooling BTUH (MAX): 12100
• Cooling BTUH (MIN): 11900 Btu
• Cooling EER (BTUH / Watt): 11.6/11.6
• Dehumidification (pts./hr.): 3.1 (High Speed)
• Vent CFM (high fan at zero ESP): 43.2
• Central Desk Control Compatibility: Yes
• Chassis Type: Slide-In

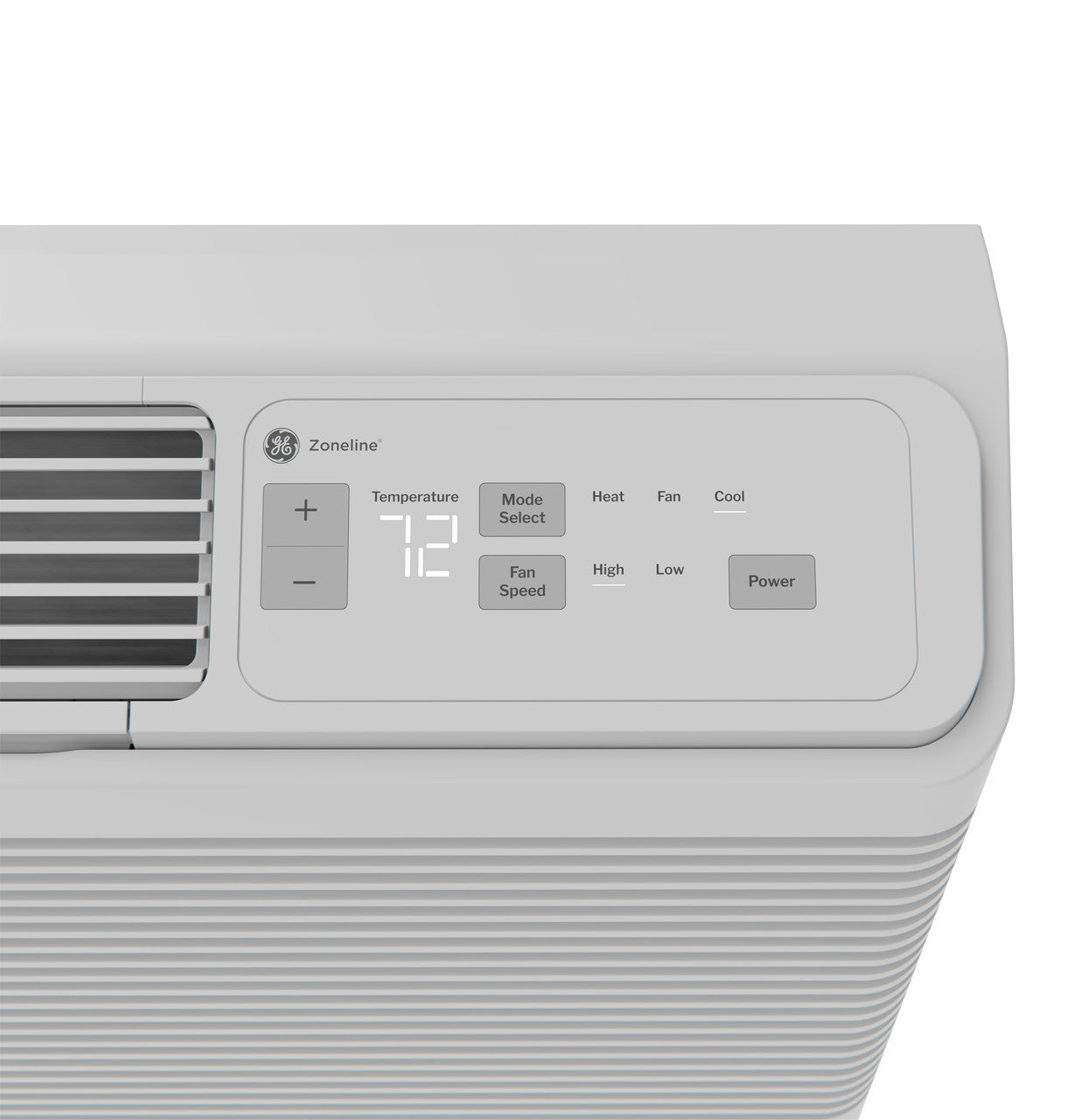

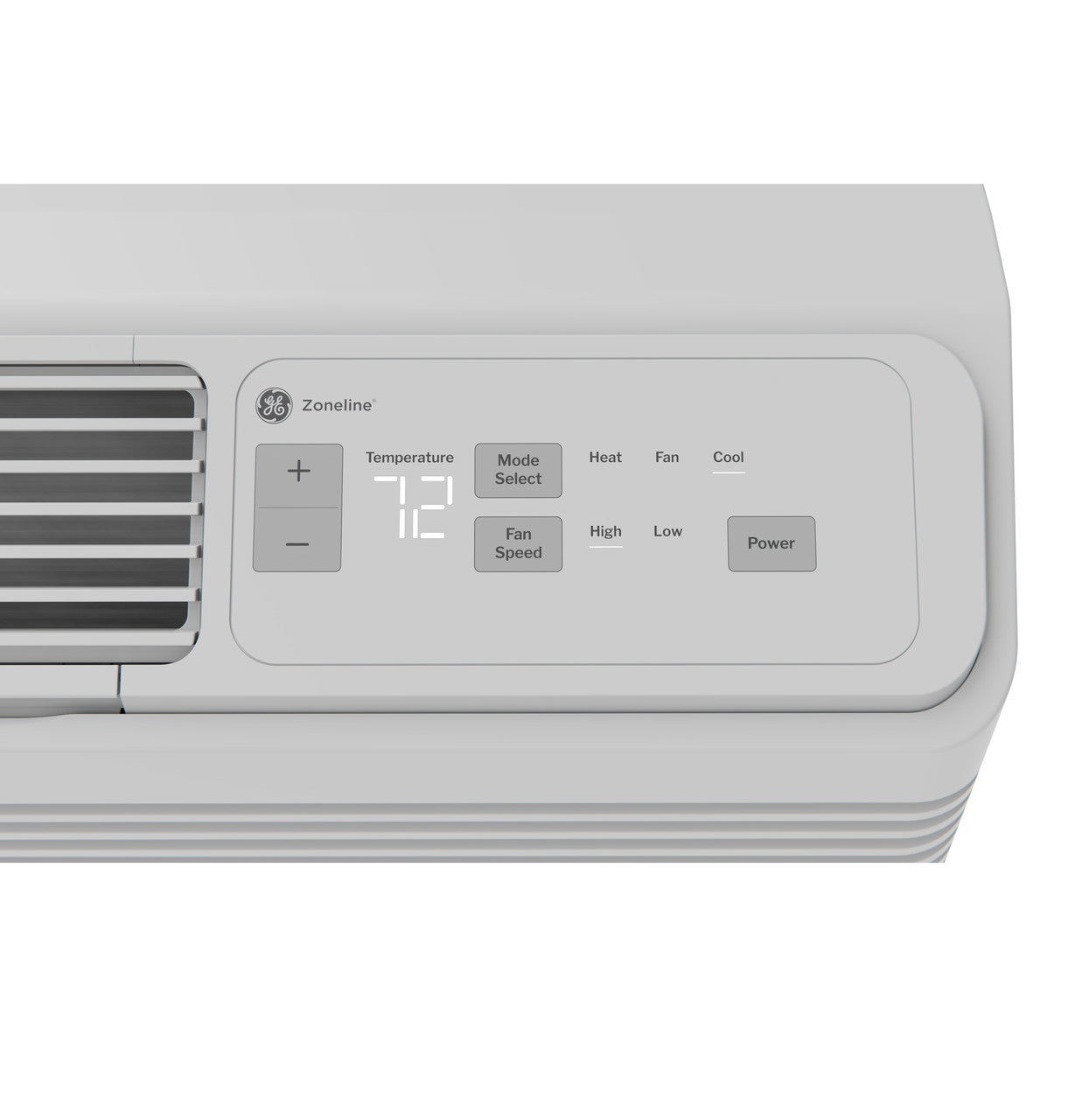

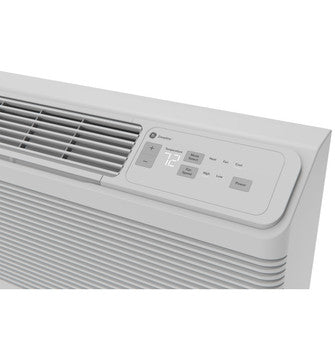

• Control Type: Standard Microcomputer Tactile touch pad with LED Display
• Corrosion Treated: Yes
• Discharge Grille: 2-position
• Electronic Micro Computer Control: Yes
• Fan Cycle Switch: Yes
• Fan Motor: 2
• Fan Speed Control: Yes
• Fan Speed Selections: Hi/Low Cooling Hi/Low Heating Hi/Low Fan Only
• Filter Type: Rigid Frame Slide-Out
• Freeze Sentinel: Yes
• Heat - Cool: Yes
• Heat Pump: Yes
• Heat Sentinel: Yes
• Heating - Reverse Cycle - COP: 3.6/3.7
• Heating System: Heat Pump With Backup Resistance Heat
• Louver Style: Reversible
• Manual Vent Control: Hidden
• Power Factor: 95
• Product Type: Packaged Terminal Air Conditioners (PTAC)
• Refrigerant Charge (oz.): 30.5
• Refrigerant Type: R454B
• Rotary Compressor: Yes
• Sensible Heat Ratio: 0.75
• Temperature Limiting: Electronic 24-Step
• Temperature Range: 60 - 85 F
• Vent Control: 3-position
• Venting Features: Concealed Manual Vent Control Vent Air Filter Outdoor Vent Control - 3 Positions
• Zoneline Features: "Smart Fan" Fan Cycle Control Heat Sentinel Freeze Sentinel Automatic Indoor Frost Control Universal Heaters Auto Power Recovery Remote Thermostat Compatibility Central Desk Control Compatibility Random Twist/Length Segment Tangential Blower
• Cooling - Amperes: 4.7/5.1
• Cooling - Amperes; F.L. - Cooling: 4.5/4.9
• Cooling - Amperes; L.R.: 29.5
• Cooling - Watts: 1035/1020
• Heating BTUH: 10600 / 10600
• Heating - Electric - Heater Amps: 3.7/3.5
• Heating - Reverse Cycle - Watts: 835/815
• Voltage (MAX): 230 V
• Voltage (MIN): 208 V
• Approximate Shipping Weight: 114 lb
• Net Weight: 104 lb
• Overall Depth: 20.8125 in
• Overall Height: 16 in
• Overall Width: 42 in
