Product Description

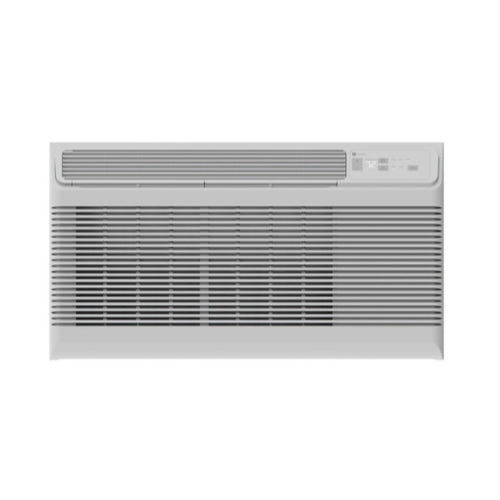

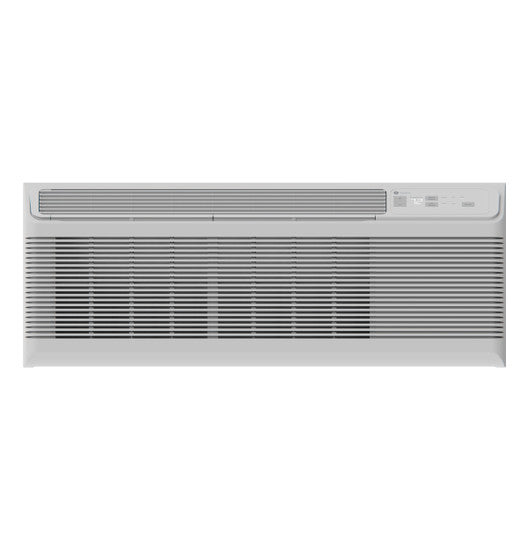

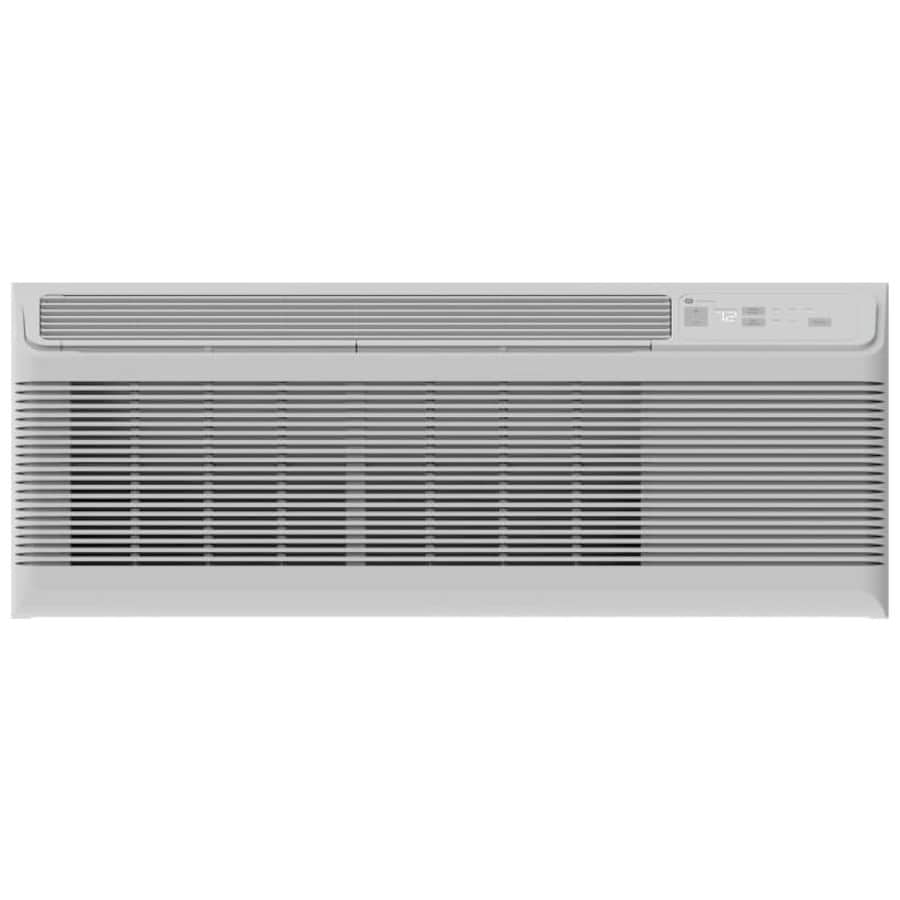

The GE AZHS07DRXXA Zoneline Heat Pump Fixed Speed Unit with ICR operates at 7,000 BTU and 230/208 Volt. It features R454B refrigerant and internal condensate removal. The heat pump functions down to 25°F and includes a boost heat option and electronic touch controls with LED display. It also features quiet operation due to a baked-on mastic sound barrier and a corrosion protection package.
- Utilizes R454B refrigerant
- Features internal condensate removal (ICR)

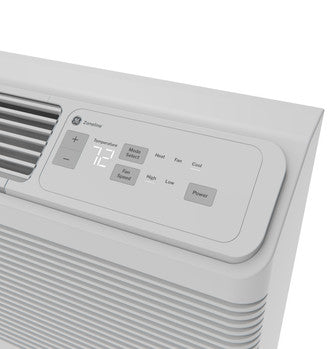

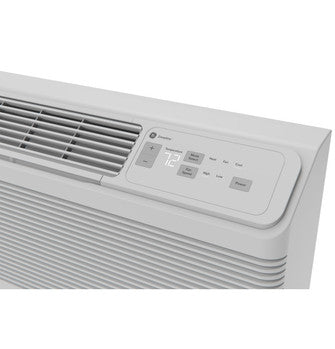

- Operates with electronic touch controls and LED display
Product Highlights
This GE Zoneline heat pump offers efficient heating and cooling with user-friendly controls and robust construction.
Product Information
Standard Information
-
Brand: GENERAL ELECTRIC
-
Manufacturer Part Number: AZHS07DRXXA
-
Country of Origin: US
Technical Specifications
-
Accessories: Accessories Required for Installation
RAB42 - Wall Case
Outdoor Grille
-
CFM Indoor Fan High: 335
-
CFM Indoor Fan Low: 240
-
Cooling BTUH (MAX): 7200
-
Cooling BTUH (MIN): 7100 Btu
-
Cooling EER (BTUH / Watt): 13.0 / 13.1
-
Dehumidification: 0.9 Pints/Hour
-
Vent CFM: 36.8
-
Central Desk Control Compatibility: Yes
-
Chassis Type: Slide-In
-
Control Type: Touch
-
Corrosion Treated: Yes
-
Discharge Grille: 2-position
-
Electronic Micro Computer Control: Yes
-
Fan Cycle Switch: Yes
-
Fan Motor: 2
-
Fan Speed Control: Yes
-
Fan Speed Selections: Hi/Low Cooling
Hi/Low Heating
Hi/Low Fan Only
-
Filter Type: Rigid Frame
Slide-Out
-
Freeze Sentinel: Yes
-
Heat - Cool: Yes
-
Heat Pump: Yes
-
Heat Sentinel: Yes
-
Heating - Reverse Cycle - COP: 4.1/4.2
-
Heating System: Heat Pump With Backup Resistance Heat
-
Internal Condensate Removal (ICR): Yes
-
Louver Style: Reversible
-
Manual Vent Control: Hidden
-
Power Factor: 95
-
Product Type: Packaged Terminal Air Conditioners (PTAC)
-
Refrigerant Charge: 26.8 oz
-
Refrigerant Type: R454B
-
Rotary Compressor: Yes
-
Sensible Heat Ratio: 0.75
-
Temperature Limiting: Electronic 24-Step
-
Temperature Range: 60 - 85 F
-
Vent Control: 3-position
-
Venting Features: Concealed Manual Vent Control
Vent Air Filter
Outdoor Vent Control - 3 Positions
-
Zoneline Features: "Smart Fan" Fan Cycle Control
Heat Sentinel
Freeze Sentinel
Automatic Indoor Frost Control
Universal Heaters
Auto Power Recovery
Remote Thermostat Compatibility
Central Desk Control Compatibility
Random Twist/Length Segment Tangential Blower
-
Cooling - Amperes: 2.6/2.8
-
Cooling - Amperes; F.L. - Cooling: 2.5/2.7
-
Cooling - Amperes; L.R.: 13.5
-
Cooling - Watts: 550/540
-
Heating BTUH: 6500 / 6400
-
Heating - Electric - Heater Amps: 2.3/2.5
-
Heating - Reverse Cycle - Watts: 450/435
-
Voltage (MAX): 230 V
-
Voltage (MIN): 208 V
-
Overall Depth: 20.8125 in
-
Overall Height: 16 in
-
Overall Width: 42 in
-
Maximum Amperage: 2.2 Amp
-
Maximum Voltage: 230V
-
BTU Cooling: 7,000
-
EER: 13
-
Voltage: 208, 230
-
Frequency: 60 Hz
-
Electrical Phases: 1
-
Amperage: 2.8 A
-
Height: 16"
-
Width: 42"
-
Depth: 21"
-
Product Weight: 100 lbs
-
Certifications: AHRI
-
Heater Included: Yes
-
Includes Remote: No
-
Includes Thermostat: No
-
Display Type: Digital
-
Heater Type: Heat Pump
-
Installation Type: PTAC
-
Programmable: No
-
BTU Heating: 6500
-
Coefficient of Performance: 4.1
-
Fan Speeds: 2
-
Heating BTU Capacity: 6500
-
Nominal Cooling Capacity: 7200
-
DOE Regional Compliance: Nationwide
