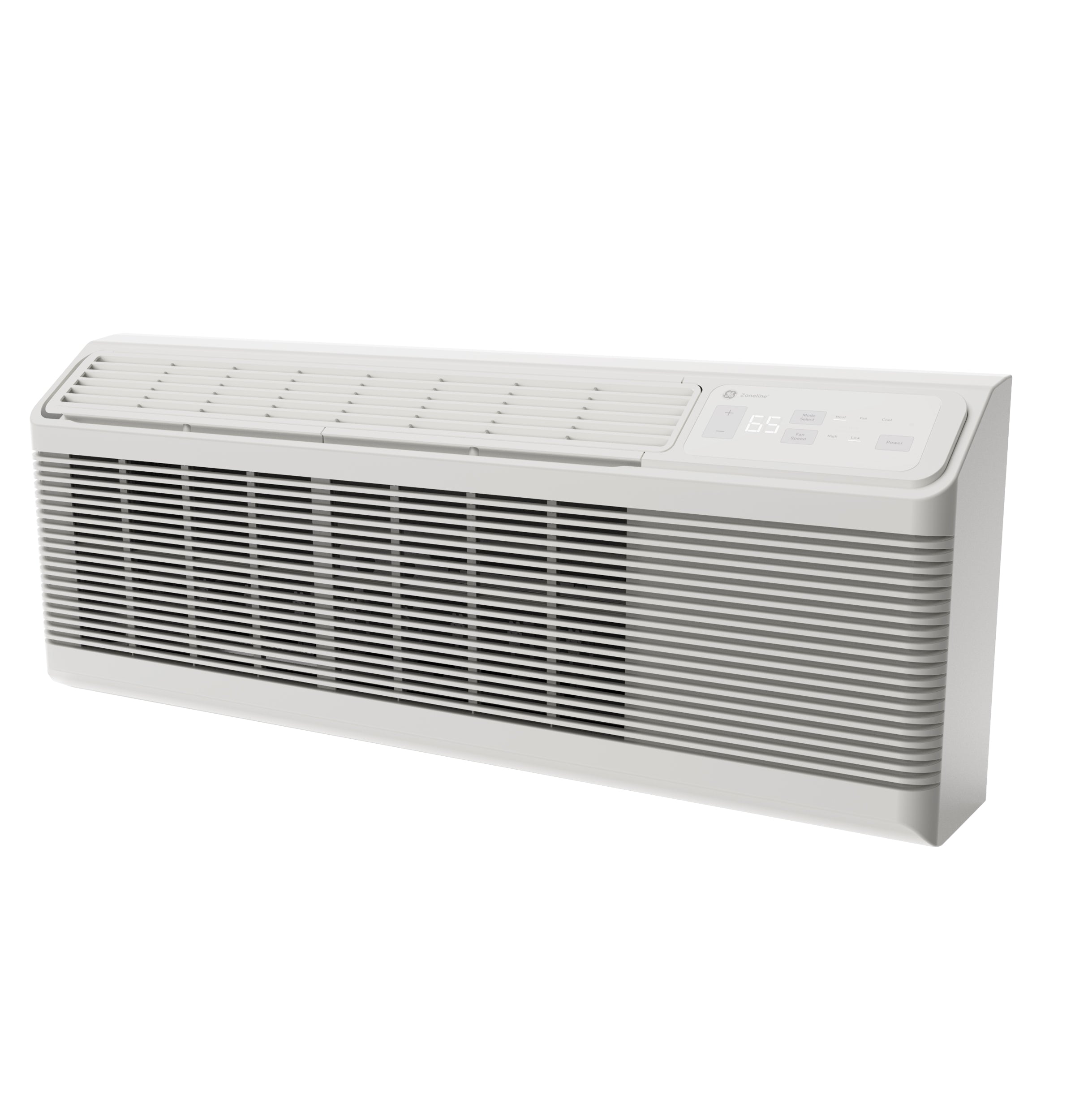

GE AZES12DCXXA Zoneline Cooling and Electric Heat Fixed Speed Unit 12,000 BTU 230/208 Volt

Product Description

The GE AZES12DCXXA Zoneline Cooling and Electric Heat Fixed Speed Unit with Corrosion Protection is a 12,000 BTU, 230/208 Volt PTAC unit. It features electronic touch controls with LED display and quiet operation due to a baked-on mastic sound barrier. Designed with a corrosion protection package and SMC basepan and bulkhead, this unit also offers electronic temperature limiting and a fresh air vent.

• Utilizes R454B refrigerant
• Features electronic touch controls with LED display
• Offers corrosion protection package

Product Highlights

The GE Zoneline unit provides efficient cooling and electric heat with user-friendly controls and robust construction.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: AZES12DCXXA
• Country of Origin: America

Technical Specifications

• ACCESSORIES: Accessories Required for Installation Outdoor Grille, RAB42 - Wall Case
• APPEARANCE: Color Appearance Grey White
• Cooling BTUH (MAX): 12100 Btu
• CFM Indoor Fan Low: 275
• CFM Indoor Fan High: 410
• Cooling EER (BTUH / Watt): 11.6/11.7
• Dehumidification (pts./hr.): 3.3 (High Speed)
• Vent CFM (high fan at zero ESP): 41.5
• Cooling BTUH (MIN): 12000 Btu
• FEATURES: Zoneline Features "Smart Fan" Fan Cycle Control, Auto Power Recovery, Automatic Indoor Frost Control, Central Desk Control Compatibility, Freeze Sentinel, Heat Sentinel, Random Twist/Length Segment Tangential Blower, Remote Thermostat Compatibility, Universal Heaters
• Louver Style: Reversible
• Refrigerant Charge (oz.): 32
• Control Type: Standard Microcomputer, Tactile touch pad with LED Display
• Discharge Grille: 2-position
• Fan Speed Selections: Hi/Low Cooling, Hi/Low Fan Only, Hi/Low Heating
• Sensible Heat Ratio: 0.75
• Power Factor: 95
• Refrigerant Type: R454B
• Product Type: Packaged Terminal Air Conditioners (PTAC)
• Filter Type: Rigid Frame, Slide-Out
• Manual Vent Control: Hidden
• Chassis Type: Slide-In
• Fan Motor: 2
• Temperature Limiting: Electronic 24-Step
• Heat Sentinel: Yes
• Fan Speed Control: Yes
• Freeze Sentinel: Yes
• Temperature Range: 60 - 85 F
• Corrosion Treated: Yes
• Heat - Cool: Yes
• Electronic Micro Computer Control: Yes
• Fan Cycle Switch: Yes
• Central Desk Control Compatibility: Yes
• Rotary Compressor: Yes
• Vent Control: 3-position
• Venting Features: Concealed Manual Vent Control, Outdoor Vent Control - 3 Positions, Vent Air Filter
• Heating System: Resistance only
• Cooling - Amperes; L.R.: 29.5
• Hertz: 60
• Cooling - Amperes; F.L. - Cooling: 4.4/4.7
• Cooling - Amperes: 4.7/5.1
• Cooling - Watts: 1035/1020
• Voltage (MIN): 208 V
• Voltage (MAX): 230 V
• Overall Width: 42 in
• Approximate Shipping Weight: 116 lb
• Overall Height: 16 in
• Overall Depth: 20.8125 in
• Net Weight: 106 lb
• Air Conditioner Type: PTAC
• Cooling BTU: 12,000 BTU
• Machine Volts: 208/230
• Machine Amps: Universal
• Cord Included: No
• Plug Type: Universal
• Controls: Electronic
• Heat: Electric Heat
• Heater Size (KW): Universal
• Fits Standard 42" x 16" Sleeve: Yes
• Product Length: 42
• Product Width: 20.5
• Product Height: 16
• Energy Star Certified: No
• Wi-Fi Compatible: No
• Remote Control: No
• Automatic Restart: Yes
• Seacoast Protection: Yes
• Freeze Protection: Yes
• Number of Fan Motors: 2
• Fan Speeds: 2
• ADA Compliant: No
• Energy Efficiency Rating (EER): 11.7
• Sleeve Included: No
• Exterior Grille Included: No
• Maximum Cooling Watts: 985
• Maximum Cooling Amps: 4.7
• Actual Cooling BTUs @ 208V: 12000
• Actual Cooling BTUs @ 230V: 12100
• CFM (Cool/Wet Coil) - High: 410
• CFM (Cool/Wet Coil) - Low: 275
• Air Filtration: Air Filtering
• Airflow: 275 cfm; 410 cfm
• Amps: 29.5 A
• Minimum Average Coverage Area: 450 sq ft
• Maximum Average Coverage Area: 550 sq ft
• Compatible Wall Sleeve Manufacturer Model Number: RAB42MG; RAB42PG
• Compressor Technology: Fixed Output (Standard)
• Compressor Type: Rotary
• Control Location: Handheld Remote
• Operation Mode: Cooling/Heating
• Outside Make-Up Air: Not Make-Up Capable
• Phase: Single
• Programming Capability: Programmable with Optional Thermostat
• Refrigerant Precharge: 32 oz
• Remote Control Functions: No Remote Control
• Seacoast Corrosion Protection: Corrosion Protected
• Smart Connectivity: No Connectivity
• Voltage: 208/230V AC
• Series: Zoneline
• Heating Method: Electric Heat
• For Sleeve Depth: 13-3/4 in
• For Sleeve Height: 16 in
• For Sleeve Width: 42 in
• Includes: Power Cord
• Includes Wall Sleeve: Sleeve Included
• Number of Speeds: 1
