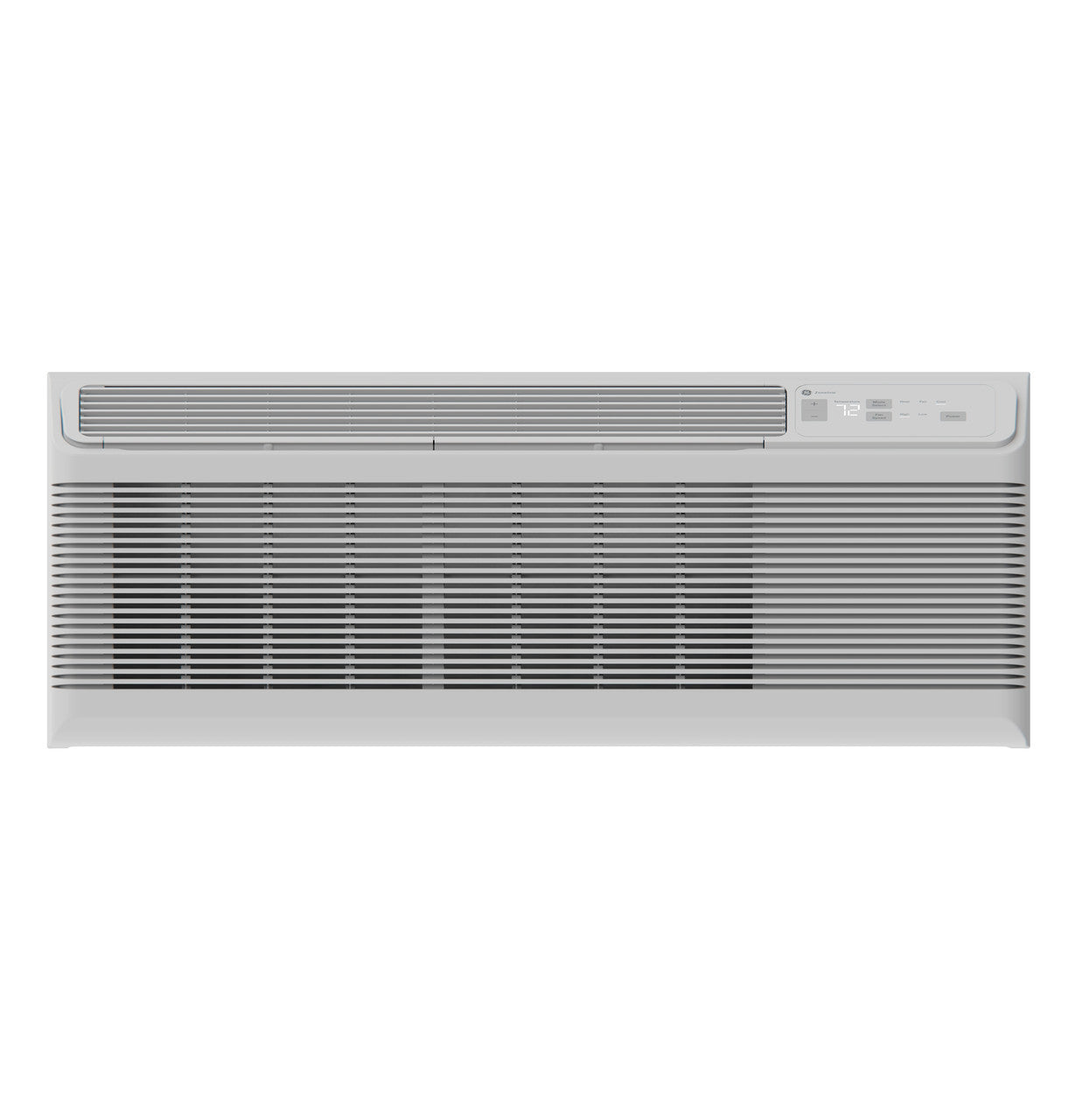

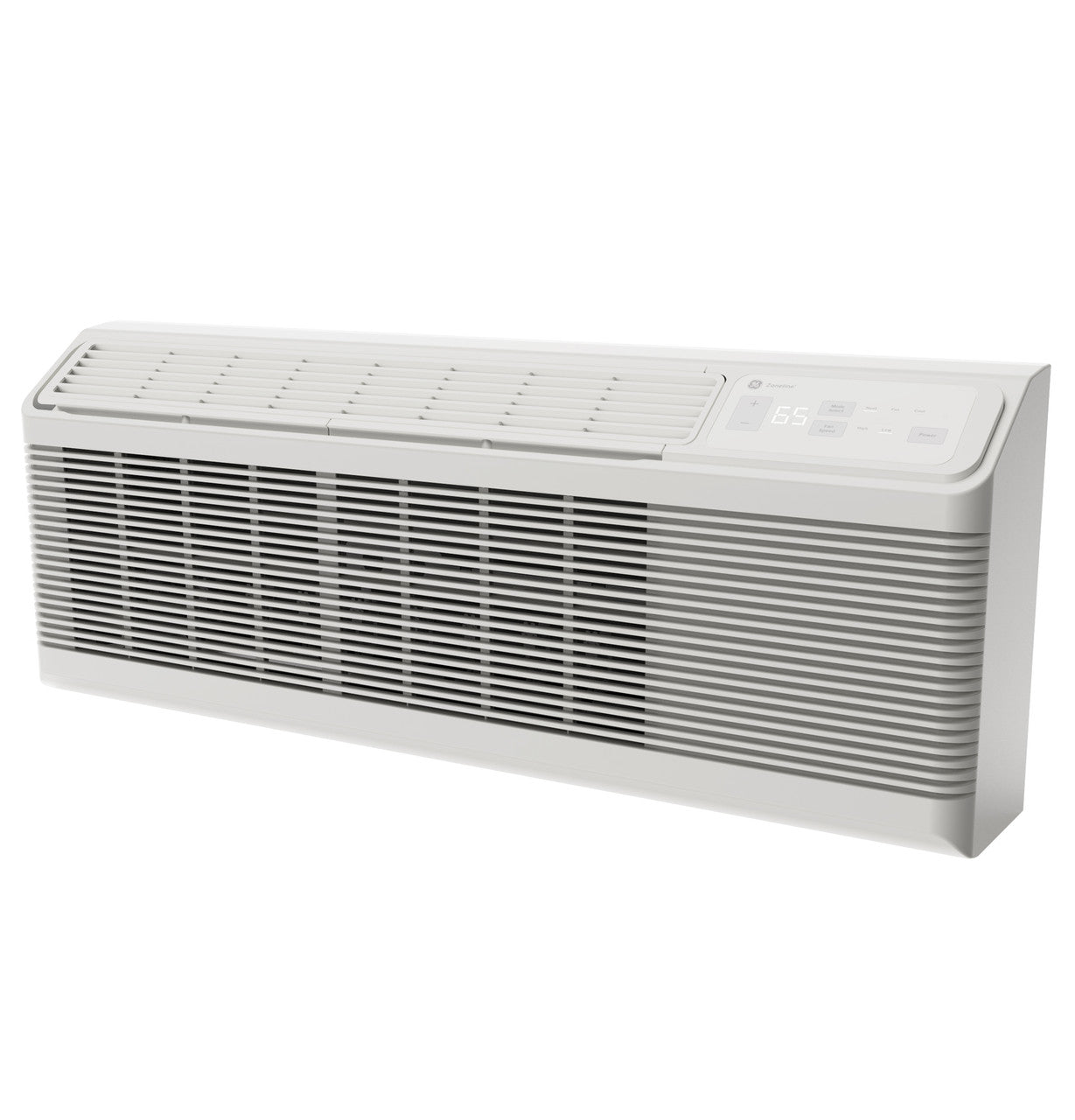

GE AZES09DCXXA Zoneline Heat Pump Fixed Speed Unit with Corrosion Protection 9,000 BTU, 230/208 Volt

Product Description

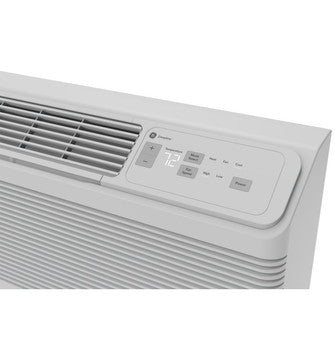

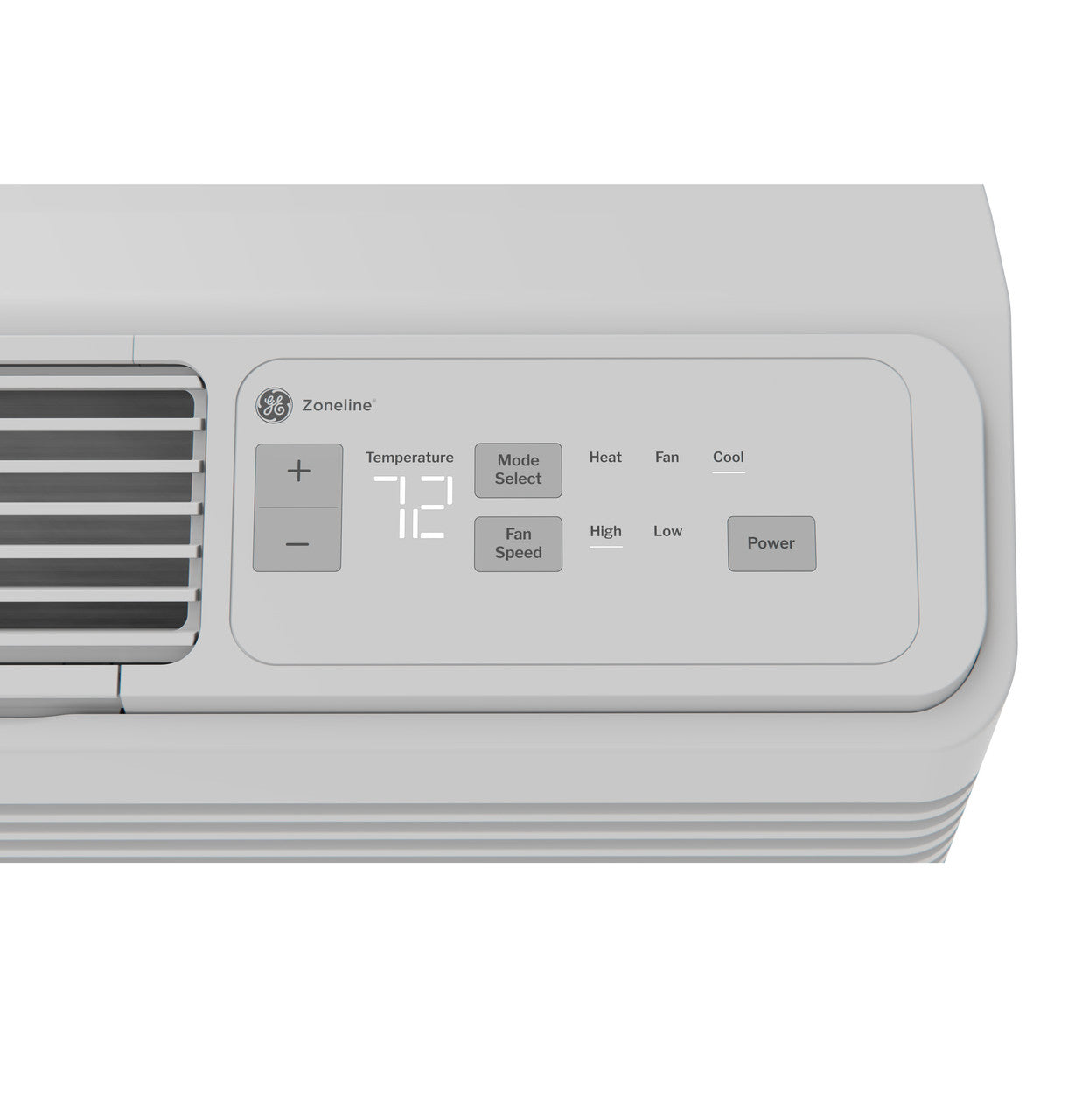

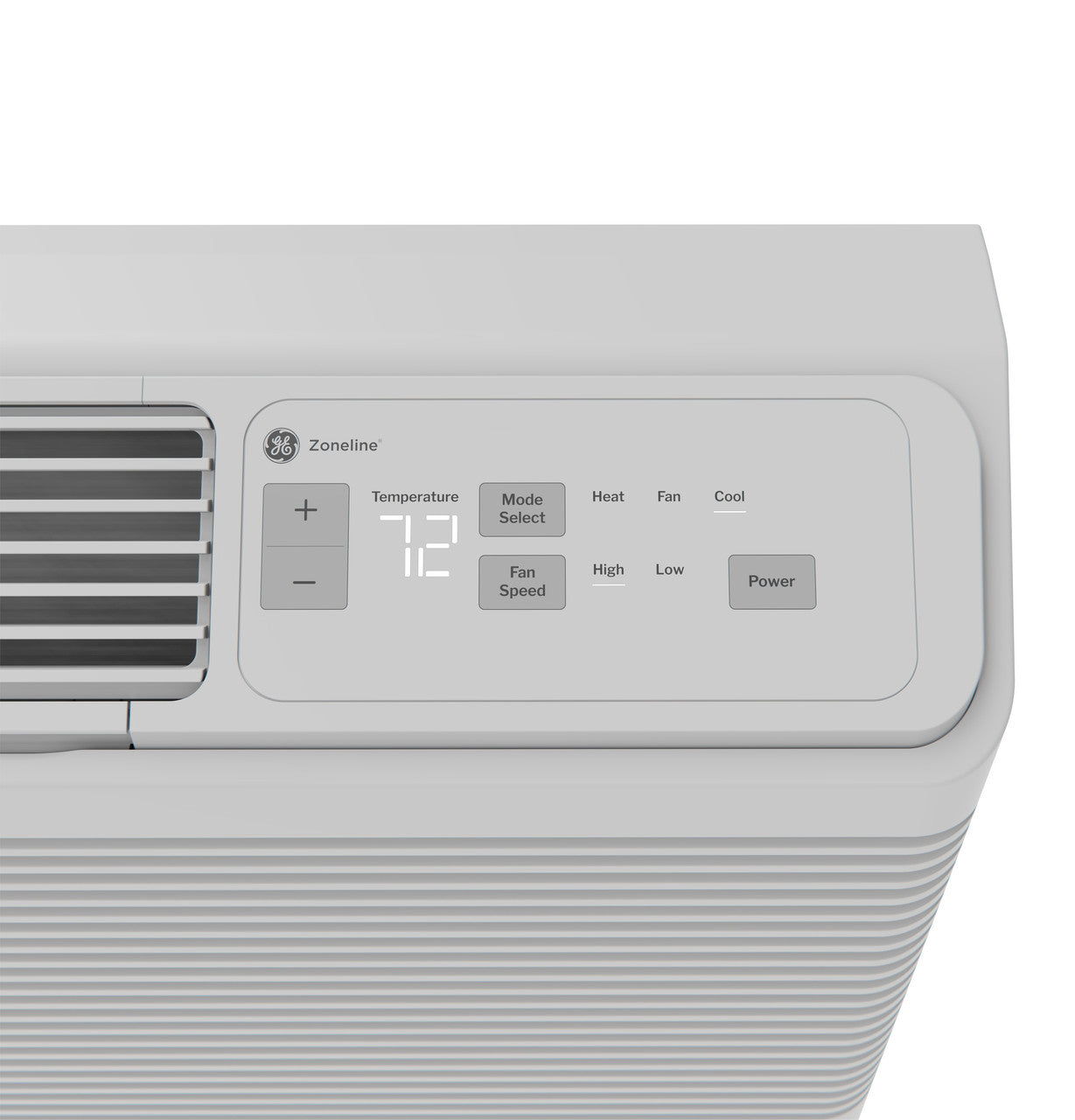

The GE AZES09DCXXA Zoneline Heat Pump Fixed Speed Unit with Corrosion Protection features R454B, an environmentally friendly refrigerant. Designed and assembled in America, this unit includes electronic touch controls with LED display and a quiet operation due to its baked-on mastic sound barrier. It also features a corrosion protection package and SMC basepan and bulkhead.

• Utilizes R454B refrigerant, the most environmentally friendly option available.
• Features a heat pump that operates effectively down to 25°F.
• Includes electronic temperature limiting and a fresh air vent.

Product Highlights

This GE Zoneline unit offers efficient heating and cooling with advanced features like corrosion protection and quiet operation, making it ideal for various applications.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: AZES09DCXXA
• Country of Origin: US

Technical Specifications

• Accessories: Accessories Required for Installation RAB42 - Wall Case Outdoor Grille
• Color Appearance: Grey White
• CFM Indoor Fan High: 400
• CFM Indoor Fan Low: 290
• Cooling BTUH (MAX): 9700
• Cooling BTUH (MIN): 9600 Btu
• Cooling EER (BTUH / Watt): 12.4 / 12.4
• Dehumidification (pts./hr.): 2.0 (High Speed)
• Vent CFM (high fan at zero ESP): 41.3
• Central Desk Control Compatibility: Yes
• Chassis Type: Slide-In
• Control Type: Standard Microcomputer
• Tactile touch pad with LED Display: Yes
• Corrosion Treated: Yes
• Discharge Grille: 2-position
• Electronic Micro Computer Control: Yes
• Fan Cycle Switch: Yes
• Fan Motor: 2
• Fan Speed Control: Yes
• Fan Speed Selections: Hi/Low Cooling Hi/Low Heating Hi/Low Fan Only
• Filter Type: Rigid Frame Slide-Out
• Freeze Sentinel: Yes
• Heat - Cool: Yes
• Heat Pump: Yes
• Heat Sentinel: Yes
• Heating - Reverse Cycle - COP: 3.7/3.8
• Heating System: Heat Pump With Backup Resistance Heat
• Louver Style: Reversible
• Manual Vent Control: Hidden
• Power Factor: 95
• Product Type: Packaged Terminal Air Conditioners (PTAC)
• Refrigerant Charge (oz.): 28
• Refrigerant Type: R454B
• Rotary Compressor: Yes
• Sensible Heat Ratio: 0.75
• Temperature Limiting: Electronic 24-Step
• Temperature Range: 60 - 85 F
• Vent Control: 3-position
• Venting Features: Concealed Manual Vent Control Vent Air Filter Outdoor Vent Control - 3 Positions
• Zoneline Features: "Smart Fan" Fan Cycle Control Heat Sentinel Freeze Sentinel Automatic Indoor Frost Control Universal Heaters Auto Power Recovery Remote Thermostat Compatibility Central Desk Control Compatibility Random Twist/Length Segment Tangential Blower
• Cooling - Amperes: 3.6/3.9
• Cooling - Amperes; F.L. - Cooling: 3.6/3.9
• Cooling - Amperes; L.R.: 21.0
• Cooling - Watts: 780/770
• Heating BTUH: 8000 / 7900
• Heating - Electric - Heater Amps: 3.0/3.2
• Heating - Reverse Cycle - Watts: 645/630
• Voltage (MAX): 230 V
• Voltage (MIN): 208 V
• Net Weight: 106 lb
• Overall Depth: 20.8125 in
• Overall Height: 16 in
• Overall Width: 42 in
