GE AZES07DCXXA Zoneline Cooling and Fixed Speed Unit 7,000 BTU 230/208 Volt

Product Description

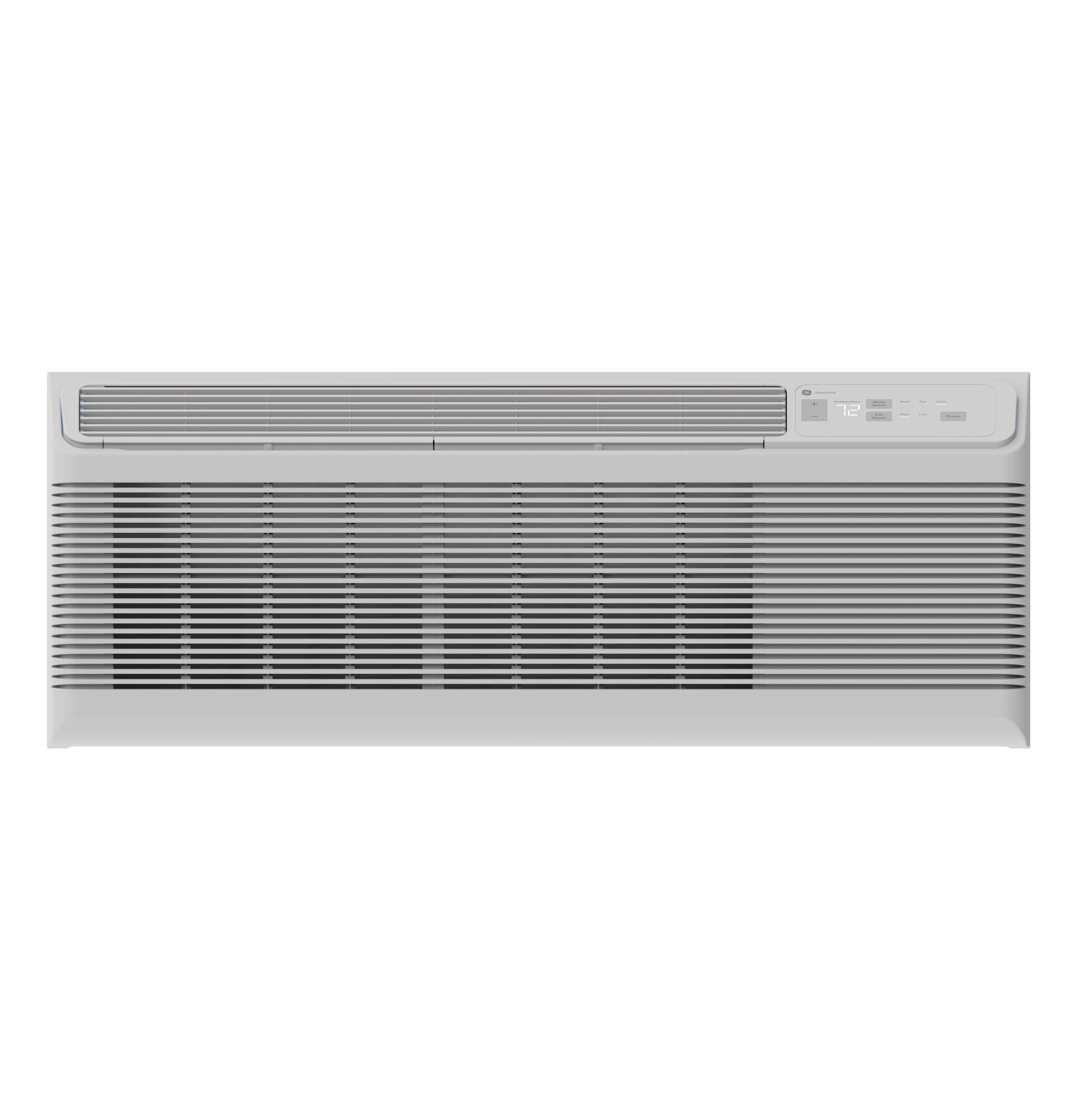

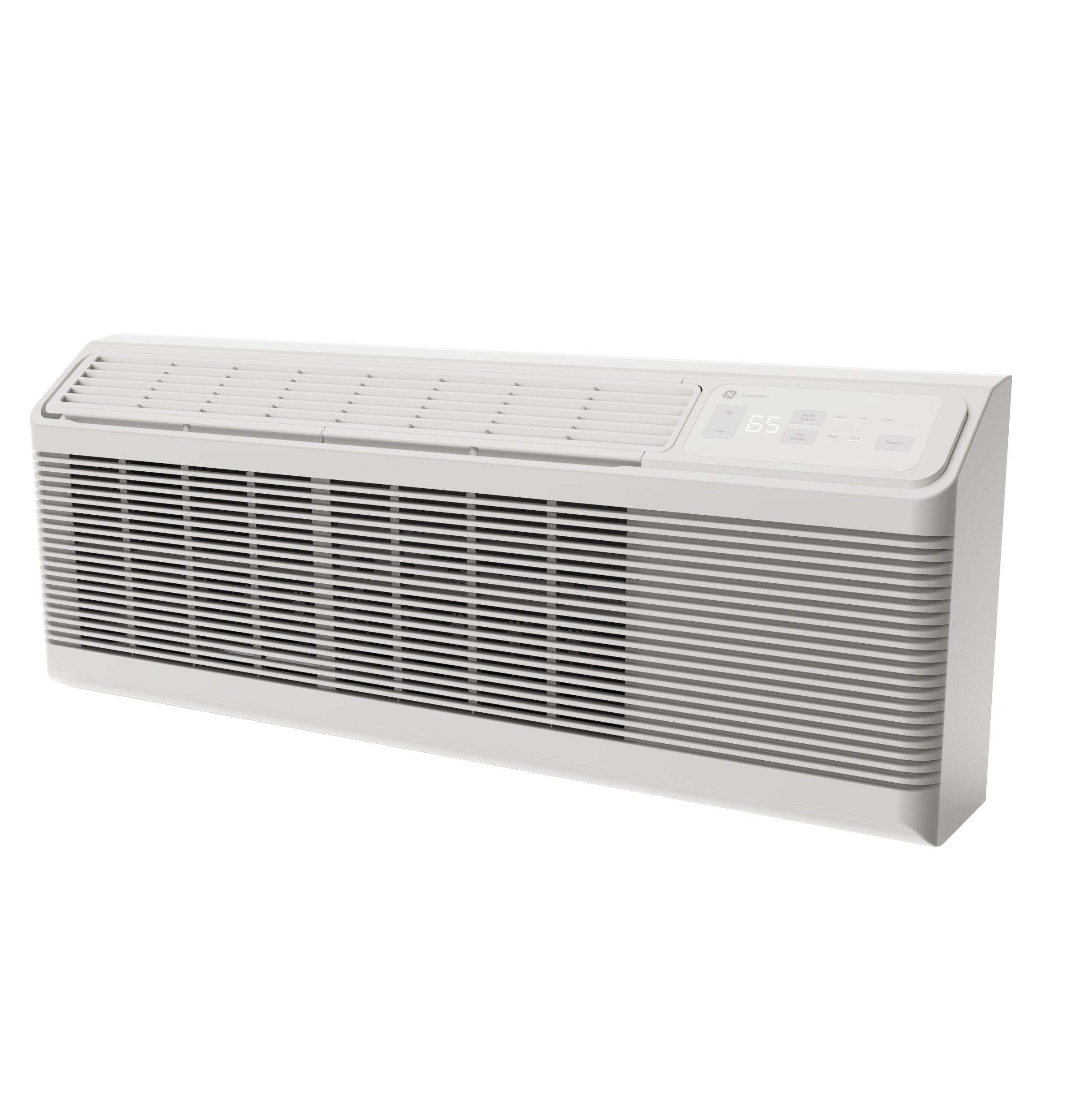

The GE AZES07DCXXA Zoneline cooling and fixed speed unit with corrosion protection features R454B refrigerant. This 7,000 BTU PTAC unit operates at 230/208 Volts. It features electronic touch controls with LED display and quiet operation due to a baked-on mastic sound barrier. Dimensions are 16 H x 42 W x 20.8125 D.

• R454B refrigerant
• Electronic touch controls with LED display
• Quiet operation with baked-on mastic sound barrier

Product Highlights

The GE Zoneline PTAC unit provides efficient cooling and heating with user-friendly controls and quiet operation.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: AZES07DCXXA
• Country of Origin: America

Technical Specifications

• ACCESSORIES: Accessories Required for Installation RAB42 - Wall Case Outdoor Grille
• APPEARANCE: Grey White
• CFM Indoor Fan High: 335
• CFM Indoor Fan Low: 240
• Cooling BTUH (MAX): 7200 Btu
• Cooling BTUH (MIN): 7,200 Btu
• Cooling EER (BTUH / Watt): 13.2 / 13.4
• Dehumidification (pts./hr.): 1.2 (High Speed)
• Vent CFM (high fan at zero ESP): 36.8
• Central Desk Control Compatibility: Yes
• Chassis Type: Slide-In

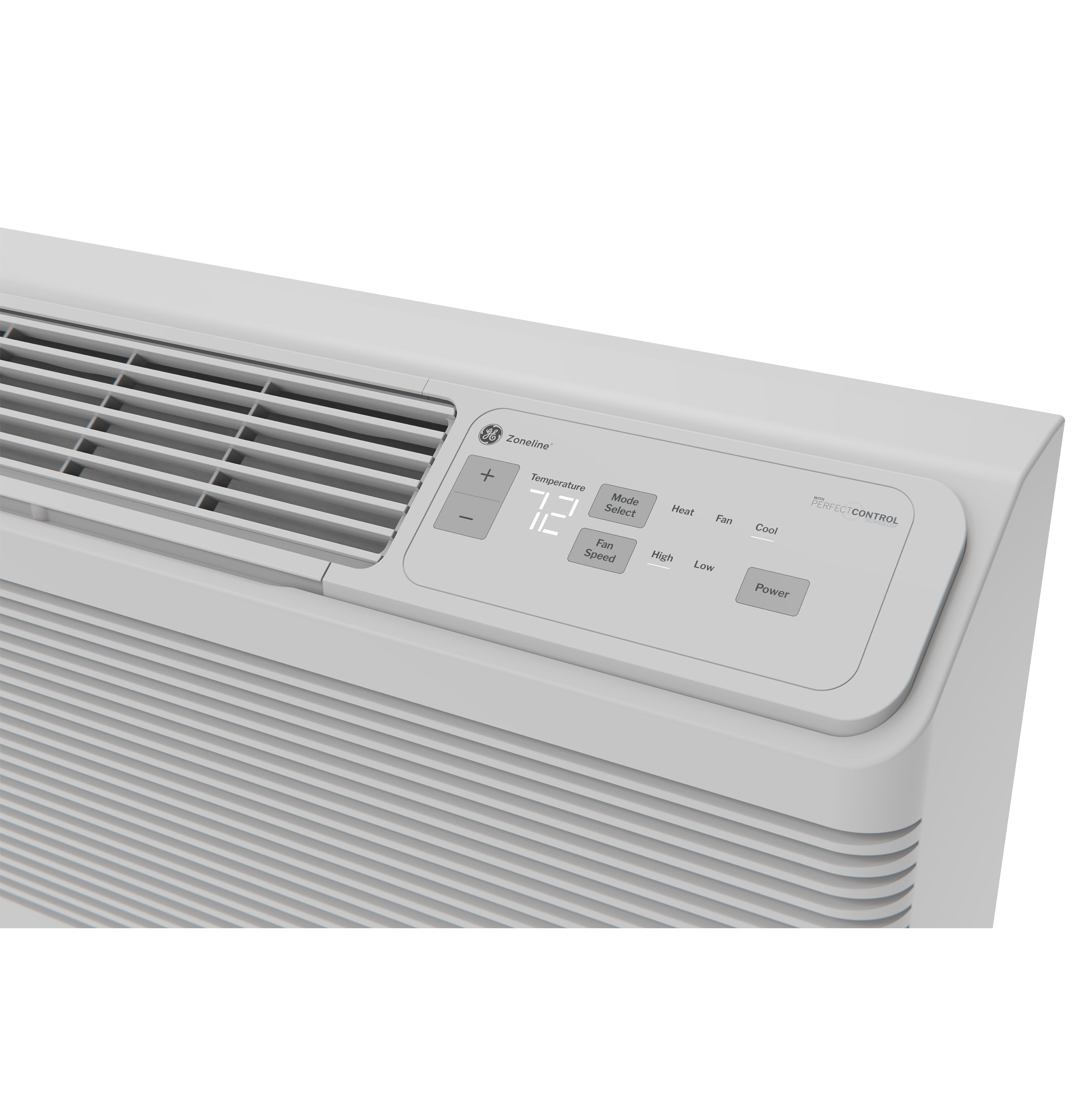

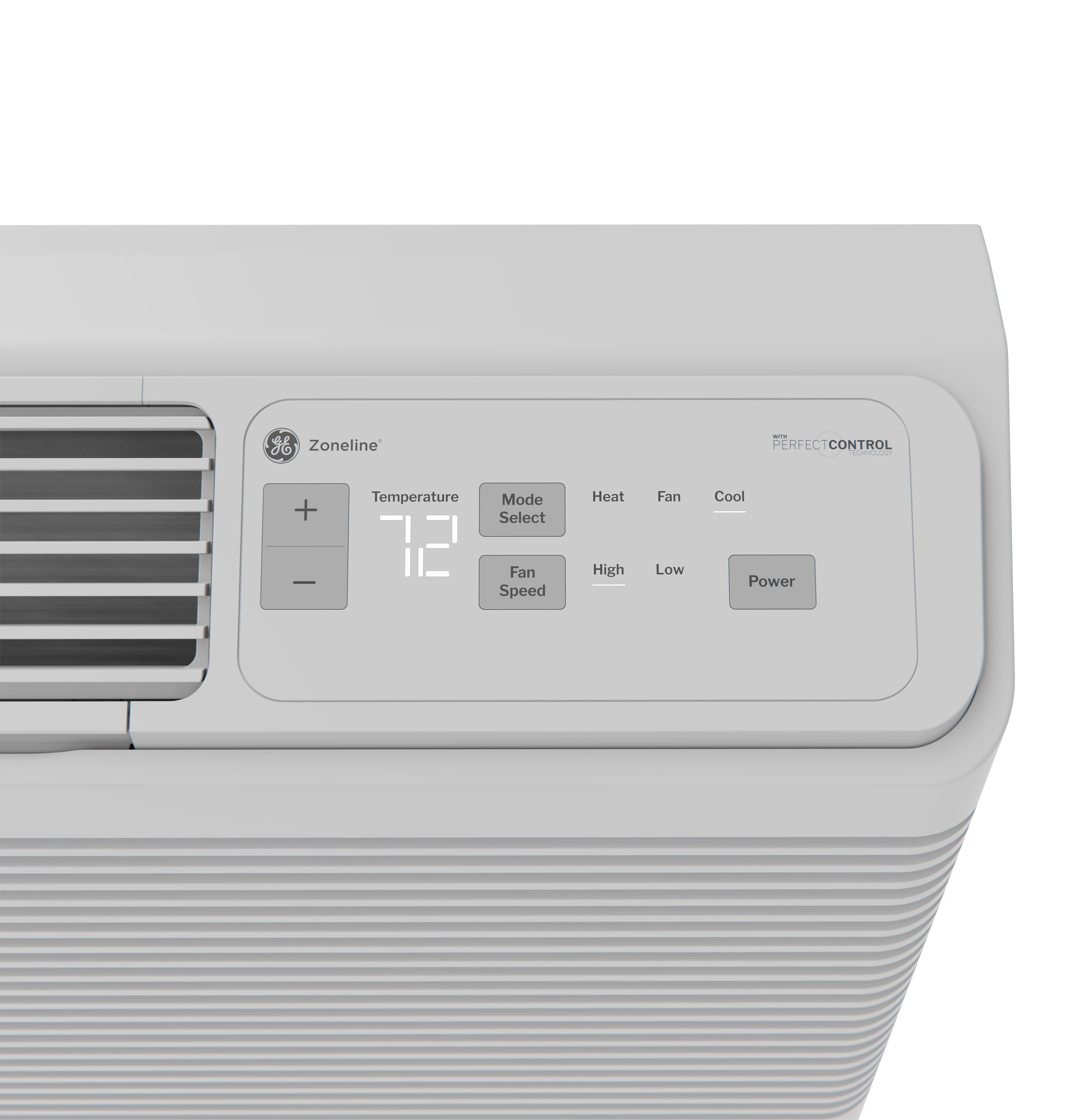

• Control Type: Tactile touch pad with LED Display
• Corrosion Treated: Yes
• Discharge Grille: 2-position
• Electronic Micro Computer Control: Yes
• Fan Cycle Switch: Yes
• Fan Motor: 2
• Fan Speed Control: Yes
• Fan Speed Selections: Hi/Low Cooling Hi/Low Heating Hi/Low Fan Only
• Filter Type: Rigid Frame Slide-Out
• Freeze Sentinel: Yes
• Heat - Cool: Yes
• Heat Sentinel: Yes
• Heating System: Electric Resistance only
• Louver Style: Reversible
• Manual Vent Control: Hidden
• Power Factor: 95
• Product Type: Packaged Terminal Air Conditioners (PTAC)
• Refrigerant Charge (oz.): 26
• Refrigerant Type: R454B
• Rotary Compressor: Yes
• Sensible Heat Ratio: 0.75
• Temperature Limiting: Electronic 7-Step
• Temperature Range: 60 - 85 F
• Vent Control: 3-position
• Venting Features: Concealed Manual Vent Control Vent Air Filter Outdoor Vent Control - 3 Positions
• Zoneline Features: "Smart Fan" Fan Cycle Control Heat Sentinel Freeze Sentinel Automatic Indoor Frost Control Universal Heaters Auto Power Recovery Remote Thermostat Compatibility Central Desk Control Compatibility Random Twist/Length Segment Tangential Blower
• Cooling - Amperes: 2.6/2.8
• Cooling - Amperes; F.L. - Cooling: 2.5/2.6
• Cooling - Amperes; L.R.: 13.5
• Cooling - Watts: 545/535
• Hertz: 60
• Voltage (MAX): 230 V
• Voltage (MIN): 208 V
• Overall Depth: 20.8125 in
• Overall Height: 16 in
• Overall Width: 42 in
• Air Conditioner Type: PTAC
• Manufacturer: GE
• Manufacturer Sku: AZES07DCXXA
• Condition: New
• Cooling BTU: 7,000 BTU
• Machine Volts: 208/230
• Machine Amps: Universal
• Cord Included: No
• Controls: Electronic
• Heat: Electric Heat
• Heater Size (KW): Universal
• Fits Standard 42" x 16" Sleeve: Yes
• Automatic Restart: Yes
• Seacoast Protection: Yes
• Number of Fan Motors: 2
• Fan Speeds: 2
• ADA Compliant: No
• Energy Efficiency Rating (EER): 13.4
• Sleeve Included: No
• Exterior Grille Included: No
• Maximum Cooling Watts: 535
• Maximum Cooling Amps: 2.6
• Actual Cooling BTUs @ 208V: 7200
• Actual Cooling BTUs @ 230V: 7200
• CFM (Cool/Wet Coil) - High: 335
• CFM (Cool/Wet Coil) - Low: 240
• 4Less California Compliance: Yes
• Air Filtration: Air Filtering
• Airflow: 240 cfm; 335 cfm
• Amps: 13.5 A
• Minimum Average Coverage Area: 250 sq ft
• Maximum Average Coverage Area: 300 sq ft
• Compatible Wall Sleeve Manufacturer Model Number: RAB42MG; RAB42PG
• Compressor Technology: Fixed Output (Standard)
• Compressor Type: Rotary
• Control Location: Handheld Remote
• Maximum Cooling Capacity: 7,200 BtuH
• EER: 13.2/13.4
• For Sleeve Depth: 13-3/4 in
• For Sleeve Height: 16 in
• For Sleeve Width: 42 in
• Heating Method: Electric Heat
• Hz: 60 Hz
• Includes: Power Cord
• Number of Speeds: 1
• Operation Mode: Cooling/Heating
• Outside Make-Up Air: Not Make-Up Capable
• Phase: Single
• Programming Capability: Programmable with Optional Thermostat
• Refrigerant Precharge: 26 oz
• Remote Control Functions: No Remote Control
• Smart Connectivity: No Connectivity
• Voltage: 208/230V AC
• Series: Zoneline
• Heating BTUH: N/A
• Internal Condensate Removal (ICR): Yes
• Cooling capacity: 7200 / 7200 BTU
• Dehumidification: 1.2 Pints/Hour
• Indoor Fan CFM (High/Low): 335/240
• Plug Face (NEMA): 6-15P / 6-20P / 6-30P
• Circuit Breaker Size (Amps): 15 / 20 / 30
• Cord Length: 5'
• Type of Through-the-Wall: 42" PTAC
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 42
• Compressor: Standard
• Energy Star: No
• Dehumidification (pts/hr): 1.2 (H)
• CFMs: 240 / 335 (L / H)
• Includes Heat Mode: Yes
• Heat Type: Electric Resistance Only
• Cooling BTUs (@208V): 7200
• EER (@208V): 13.4
• Cooling Amps (@208V): 2.6
• Cooling Watts (@208V): 520
• Electric Heat Strip Size (kW @208V): 1.9 @15 amps / 2.8 @20 amps / 3.9 @30 amps
• Electric Heating BTUs (@208V): 6600 / 9400 / 13400
• Electric Heating Amps (@208V): 9.6 / 13.6 / 19.2
• Electric Heating Watts (@208V): 1960 / 2780 / 3930
• Cooling BTUs (@230V): 7200
• EER (@230V): 13.4
• Cooling Amps (@230V): 2.5
• Cooling Watts (@230V): 535
• Electric Heat Strip Size (kW - @230V): 2.4 @15 amps / 3.4 @20 amps / 4.8 @30 amps
• Electric Heating BTUs (@230V): 8100 / 11600 / 16300
• Electric Heating Amps (@230V): 10.5 / 14.9 / 21.0
• Electric Heating Watts (@230V): 2400 / 3400 / 4800
• Vent Location: Front Top
• Make-Up Air: No
• Energy Saver Mode: No
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: No
• Remote Control: No
• Fresh Air Intake: Yes
• Sleep Mode: Yes
• Overall Width (in.): 42
• Overall Depth (in.): 20.375
• Wall Cut-Out Width (in.): 42.25
• Wall Cut-Out Height (in.): 16.25
• Certifications: UL / cUL / AHRI / NRCAN
