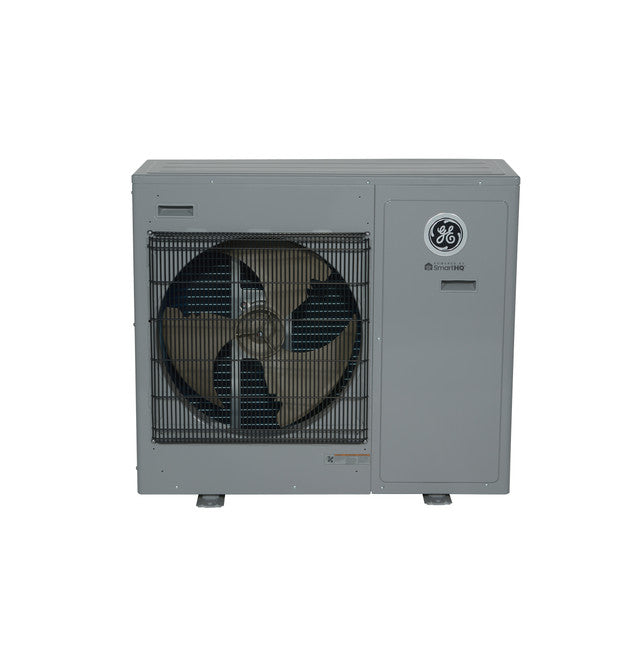

Ge ash220ncdda 18000 Btu 2-zone Mini-split Outdoor Heat Pump

Product Description

The GENERAL ELECTRIC ash220ncdda is an 18,000 BTU/h multi-zone ductless mini-split outdoor heat pump unit from the Endure Multi series, designed for two-zone residential or light-commercial applications. Powered by a DC inverter-driven rotary compressor, it operates on 208-230 volts, 60 Hz, single phase and delivers reliable heating performance down to -15 degrees F ambient outdoor temperature. The unit ships from the factory pre-charged with 69 ounces of refrigerant and features a blue fin coil coating and a standard base pan heater for cold-climate operation. Licensed HVAC technicians install and commission this unit as the outdoor section of a matched split system.

The ash220ncdda serves as the outdoor condensing unit in a two-zone ductless mini-split configuration. It is suited for residential or small-commercial installations where two separate indoor zones require independent temperature control without ductwork. Maximum line length is 164 feet (50 meters) and maximum vertical height separation is 50 feet (15 meters). Compatible indoor units are select GE multi-zone indoor units as designated in the Endure Multi system documentation. The cooling operating range is 14 to 115 degrees F and the heating range is -15 to 75 degrees F.

Key Features

• DC inverter-driven rotary compressor for variable-capacity operation and reduced energy consumption
• Low-ambient heating capability down to -15 degrees F outdoor temperature
• Blue fin coil coating provides corrosion resistance in coastal or humid environments
• Standard base pan heater prevents ice buildup during cold-climate heating operation
• Factory refrigerant charge of 69 ounces simplifies initial startup after line-set connection
• Flare-type refrigerant connections on both liquid and suction lines
• Outdoor noise level rated at 58 dBA

Compatibility

The ash220ncdda is compatible with select GE Endure Multi-zone indoor units as part of the 20K Endure Multi Zone system. Consult the GE Endure Multi series compatibility guide to confirm which indoor unit models are approved for pairing with this outdoor section.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 refrigerant handling certification. Disconnect and lock out all electrical power before making any wiring or refrigerant connections. Refrigerant line connections are flare-type and must be leak-tested after connection before system startup. Follow local mechanical codes and the manufacturer installation instructions for line-set sizing, clearances, and electrical circuit requirements including the 20-amp minimum circuit ampacity and 25-amp maximum fuse size.

Technical Specifications

• Cooling Rated Capacity: 18,000 BTU/h
• Voltage / Hertz / Phase: 208-230V / 60 Hz / 1-phase
• Minimum Circuit Ampacity: 20 amps
• Maximum Fuse Size: 25 amps
• Compressor Type: DC Inverter Driven Rotary
• Number of Zones: 2
• Temperature Range - Cooling Mode: 14 to 115 degrees F
• Temperature Range - Heating Mode: -15 to 75 degrees F
• Factory Refrigerant Charge: 69 ounces
• Outdoor Noise Level: 58 dBA
• Maximum Line Length: 164 feet (50 meters)
• Maximum Height Separation: 50 feet (15 meters)
• Refrigerant Connection Type: Flare
• Liquid Line O.D.: 1/4 inch, 1/4 inch
• Suction Line O.D.: 3/8 inch, 3/8 inch
• Overall Width: 37.375 inches
• Overall Height: 33.125 inches
• Overall Depth: 13.5 inches
• Net Weight: 185 pounds
• Approximate Shipping Weight: 202 pounds
• Color: Gray
• Parts Warranty: 5-year limited parts warranty; 10-year registered limited parts warranty

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: ash220ncdda
