Ge ash112prdwa Ductless Highwall Indoor Unit 12000 Btu/h

Product Description

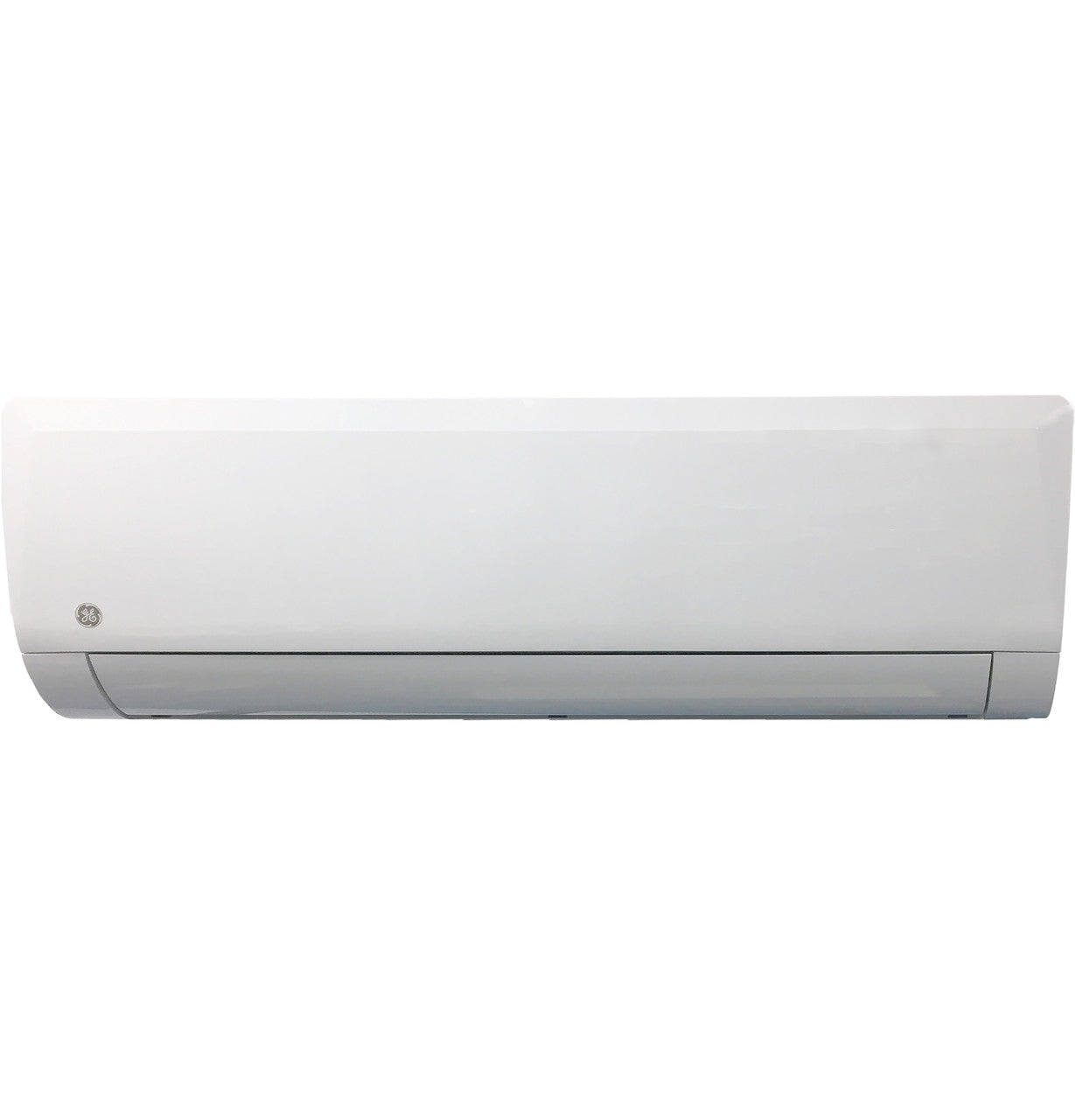

The GENERAL ELECTRIC ash112prdwa is a wall-mounted ductless indoor unit rated at 12,000 BTU/h, designed for single-zone mini-split cooling systems. Part of the Altitude Series, it operates on a 208-230V, 60 Hz, single-phase power supply and delivers 3-D airflow with an auto louver for directional air distribution. The unit produces indoor sound levels as low as 23 dBA at its quietest fan speed, making it suitable for noise-sensitive environments. It measures 35.4375 inches wide, 12.25 inches tall, and 8.4375 inches deep, with a net weight of 25.4 pounds. Licensed HVAC technicians install this unit as part of a complete ductless system.

The ash112prdwa is intended for residential single-zone ductless applications requiring a highwall-style indoor air handler. It pairs with a dedicated outdoor condensing unit to form a complete mini-split system. The unit supports five fan speed selections plus an auto mode, allowing precise airflow control across a range of load conditions. Its long-distance air supply capability makes it effective in rooms where even air distribution across the full space is required.

Key Features

• 12,000 BTU/h cooling capacity for single-zone residential installations
• 3-D airflow with auto louver for multi-directional air distribution
• Five fan speed stages plus auto mode for flexible airflow control
• Indoor sound level as low as 23 dBA at minimum fan speed
• Long-distance air supply for effective room coverage
• White finish integrates with standard residential interior aesthetics

Compatibility

This unit is rated for single-zone systems only and pairs with the ASH112PRDWA outdoor model to form a complete Altitude Series mini-split system.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer's installation instructions. Disconnect all power to the system before beginning any work on the indoor or outdoor unit. The liquid refrigerant line connection is 1/4 inch O.D. and the suction line is 3/8 inch O.D. — verify line set sizing before installation. Refrigerant handling requires EPA Section 608 certification.

Technical Specifications

• Cooling Rated Capacity: 12,000 BTU/h
• Voltage / Hertz / Phase: 208-230V / 60 Hz / 1-Phase
• Indoor Sound Level: 45 / 41 / 36 / 32 / 23 dBA
• Fan Speed Selections: 5 + Auto
• Overall Width: 35.4375 inches
• Overall Height: 12.25 inches
• Overall Depth: 8.4375 inches
• Net Weight: 25.4 pounds
• Approximate Shipping Weight: 30.86 pounds
• Liquid Refrigerant Line O.D.: 1/4 inch
• Suction Refrigerant Line O.D.: 3/8 inch
• Color: White
• Unit Type: Indoor
• Style: Highwall
• Parts Warranty: 5-Year limited; 10-Year registered limited

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: ash112prdwa
