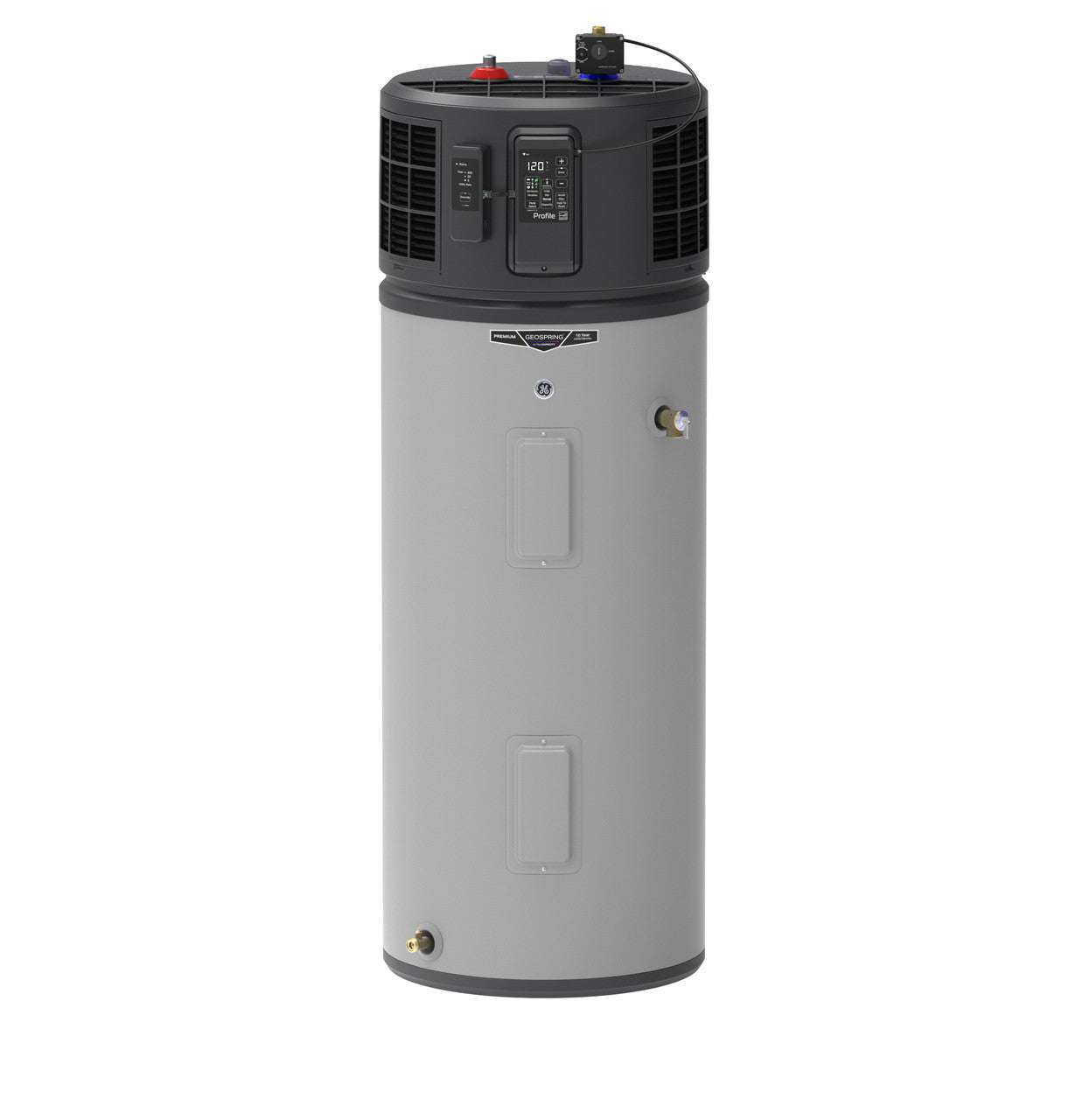

Ge Appliances PH50S10BPY Profile Geospring Smart Hybrid Heat Pump Water Heater 240V (50 Gallon) PH50S10BPY

Product Description

GE Appliances PH50S10BPY is a 50-gallon Profile GEOSPRING smart hybrid heat pump water heater with FlexCAPACITY electronic mixing valve and built-in WiFi for remote monitoring. The unit uses a variable speed compressor and heat pump technology to increase efficiency up to 4.7x versus standard electric tanks, offers five operating modes, a 77 gallon first hour rating, UEF 4.3, and requires a 240/208VAC 30A, 60Hz electrical circuit.

• 50-gallon capacity with 77 gallon first hour rating and UEF 4.3
• FlexCAPACITY electronic mixing valve, built-in WiFi, wireless leak sensor with automatic shutoff
• 240/208VAC 30A circuit requirement, variable speed compressor, quiet operation down to 41 dBA

Product Highlights

Smart hybrid heat pump water heater with FlexCAPACITY mixing, built-in WiFi, five operating modes, 77 FHR, ENERGY STAR qualified

Product Information

Standard Information

• Brand: GE APPLIANCES
• Manufacturer Part Number: PH50S10BPY

Technical Specifications

• Brand: GE Appliances
• Model Number: PH50S10BPY
• Product Type: Electric heat pump water heater
• Unit Capacity: 50 Gallons
• First Hour Rating (FHR): 77 Gallons
• UEF: 4.3
• Energy Consumption (kWh/year): 1154
• Input Voltage: 240/208VAC, 60Hz
• Electrical Circuit Required: 240/208VAC 30A, 60Hz
• Volts/Amps: 240V, 60Hz
• Hertz: 60
• Operating Modes: Heat Pump, Hybrid (default), High Demand/Boost, Standard Electric, Vacation
• Integrated Mixing Valve: FlexCAPACITY electronic mixing valve (integrated)
• WiFi Connectivity: Built-in (SmartHQ compatible)
• Leak Sensor Included: SPLK10N01A (wireless leak sensor with automatic shutoff)
• Compressor Type: Variable speed compressor
• Operating Sound Level: As low as 41 dBA
• Temperature Setting Range: 100-140 F (factory default 120 F)
• Anode Rod: Sensing magnesium anode rod
• Installation: Free-standing

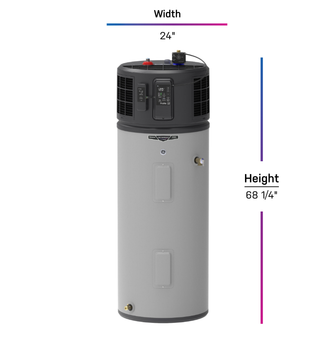

• Overall Height: 68.25 in
• Product Height (to top of unit): 66.5 in
• Product Height (to top of water inlet/outlet connections): 68.25 in
• Overall Width: 24 in
• Overall Depth: 24 in
• Product Diameter: 24 in
• Net Weight: 179 lb
• Connection Size - Water Inlet (MNPT): 3/4"
• Connection Size - Hot Water Outlet (MNPT): 3/4"
• Drain Valve Type: Left side brass drain valve
• Operating Water Pressure: 20-125 PSI (30-80 PSI recommended)
• Electrical Consumption - Lower Element: 3600W
• Electrical Consumption - Upper Element: 5500W
• Service Diagnostics: Integrated service diagnostics
• Control Type: Electronic with LED
• Demand Response Capable: Yes
• Renewable Air Filter Location: Top of unit
• Temp & Pressure Relief Valve Location: Right side
• Claims & Certifications: ENERGY STAR qualified; California Prop 65; RoHS compliant
• Leak Sensor Model: SPLK10N01A
