Ge Appliances GS24WB2BEA 208-230V 24,000 BTU Standard Highwall Indoor Unit

Product Description

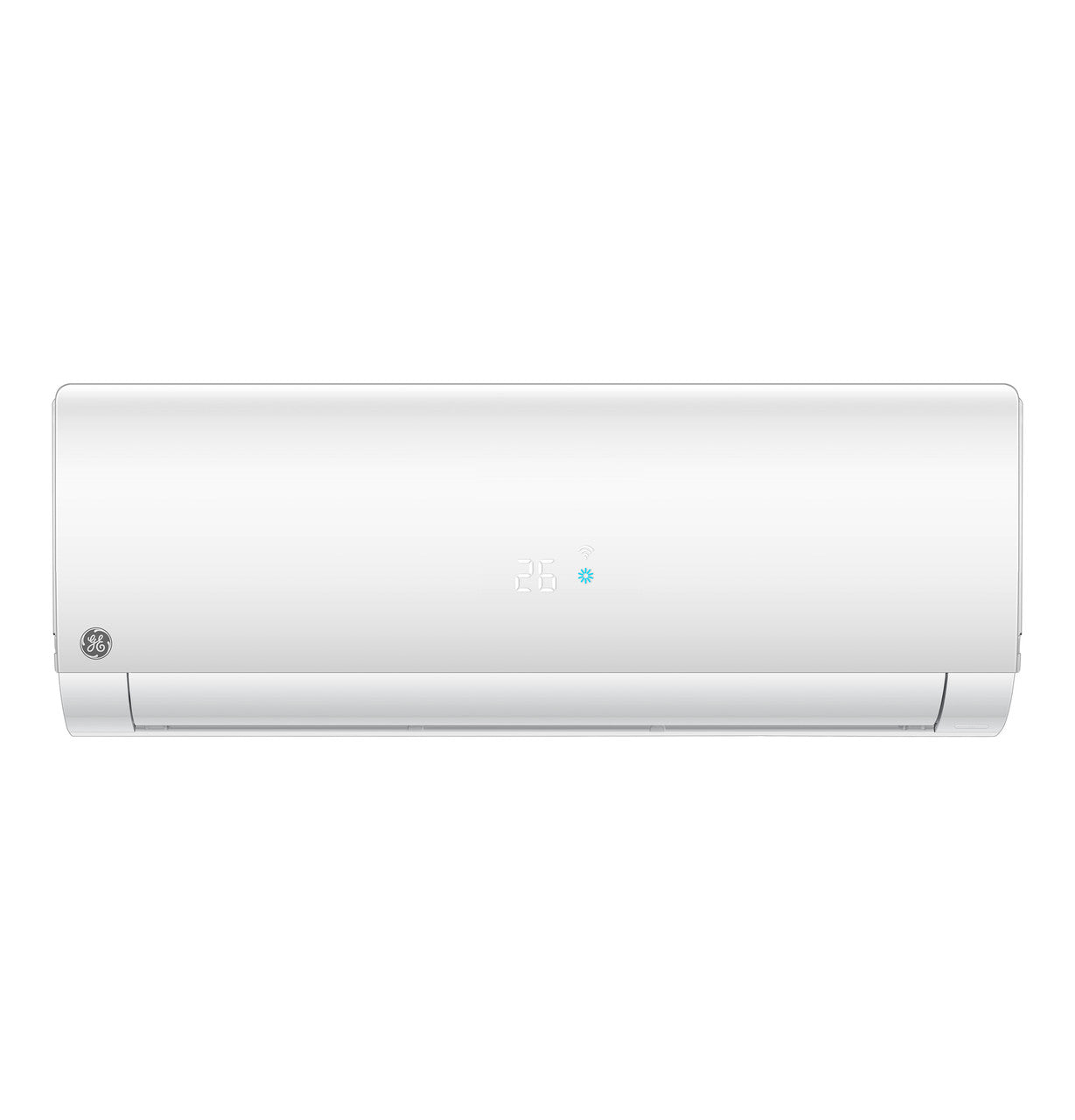

The GE Appliances GS24WB2BEA is a 208-230V 24,000 BTU standard highwall indoor unit. It features R454B refrigerant, a lower Global Warming Potential (GWP) eco-friendly option. Built-In WiFi allows users to monitor status, adjust temperature, and set cooling and heating schedules from anywhere using your smartphone.

• R454B Refrigerant
• SmartHQ Home
• Mounting Template/Plate

Product Highlights

This indoor unit offers convenient features like a mounting template, easy installation clip, and auto louver for optimal air distribution.

Product Information

Standard Information

• Brand: GE APPLIANCES
• Manufacturer Part Number: GS24WB2BEA

Technical Specifications

• Color Appearance: White
• Connected Capabilities: Amazon Alexa, Google Home
• Drainpipe Size (in): 5/8
• Fan Speed Stages: 5 + Auto
• Fan Speeds CFM: 800/730/630/535/440
• Indoor Sound Level: 54/50/47/44/38
• Product Type: Single Zone, Multi Zone
• Refrigerant Type: R454B
• Style: Highwall
• Unit Type: Indoor
• WiFi Connect: Built-In
• SmartHQ Home Built-In: Built-In
• Cooling Rated Capacity BTU/Hr: 24,000
• Voltage/Hertz/Phase: 208-230/60/1
• Liquid O.D. Refrigerant Line: 1/4"
• Overall Depth: 9.125 in
• Overall Height: 13.5 in
• Overall Width: 44.5 in
• Suction O.D. Refrigerant Line: 1/2"
• Air Flow (CFM): 800
• Certificate: cETLus Listed, AHRI Certified
• Cooling Capacity: 24000 BTU/H
• Fan Speeds: 5-Speed
• Heating Capacity: 24000 BTU/H
• Maximum Amperage: 30 Amp
• Maximum Voltage: 208V-230V
• Mounting: Mounting Template/Plate
• Installation: Easy Installation Clip
• Piping: 2-Way Piping Drain
• Start: Warm Start
• Louver: Auto Louver
• Air Filter: Indoor Air Filter
• Location: Indoor
• Voltage Rating: 208-240 VAC
• HSPF Rating: 9.5
• SEER Rating: 18
• EER Rating: 12
• Flow Rate: 800/730/630/535/440 cfm
• Power Source: 208/230 V AC, 1 ph, 60 Hz
• Sound Level: 54/50/47/44/38 dBA
• Suction Line Size: 1/2 in
• Type: Standard
• Brand: GE Appliances
• Manufacturer: GE Appliances
