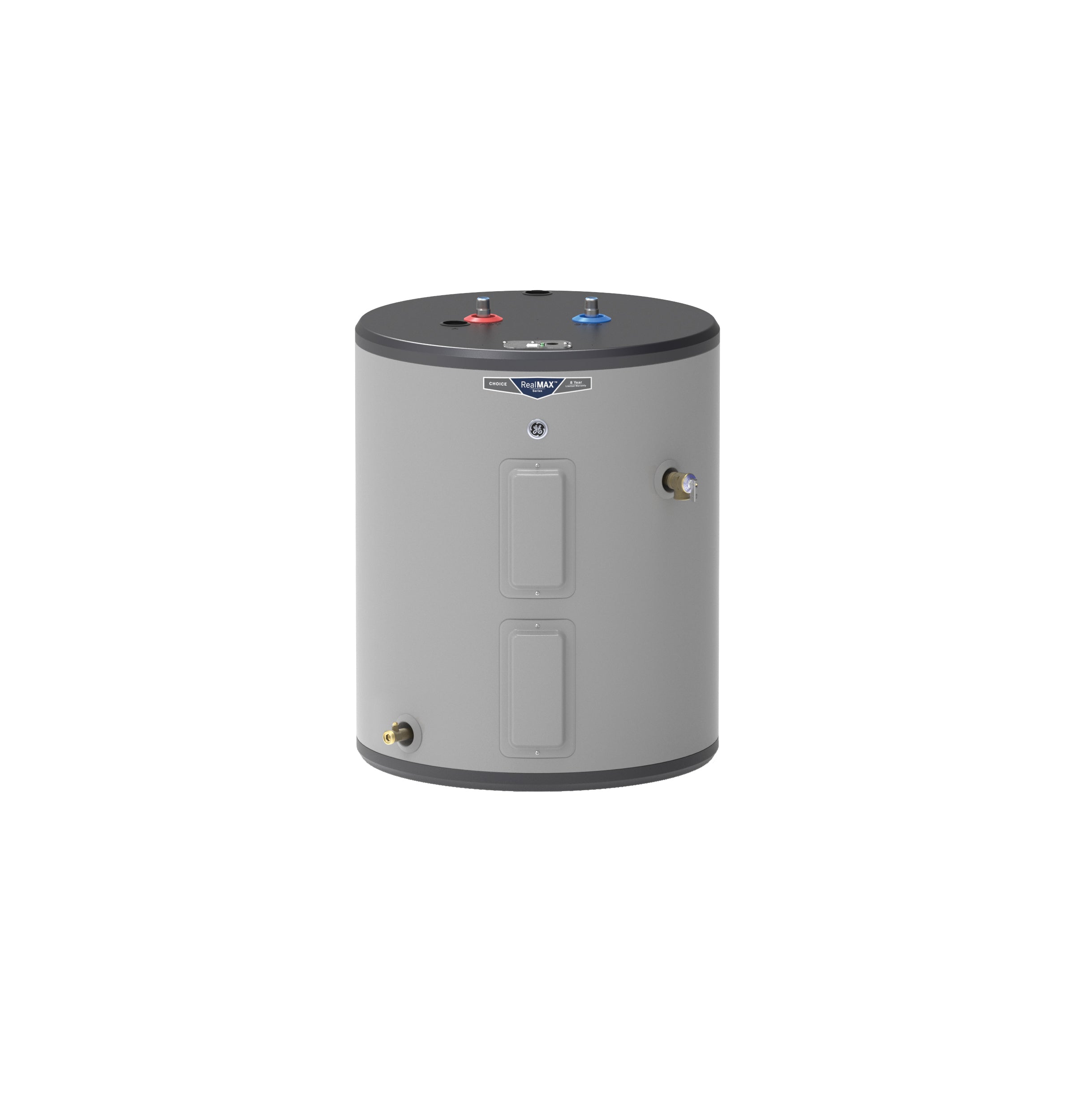

Ge Appliances GE40L08BAM 36 Gallon Top Port Lowboy Electric Water Heater

Product Description

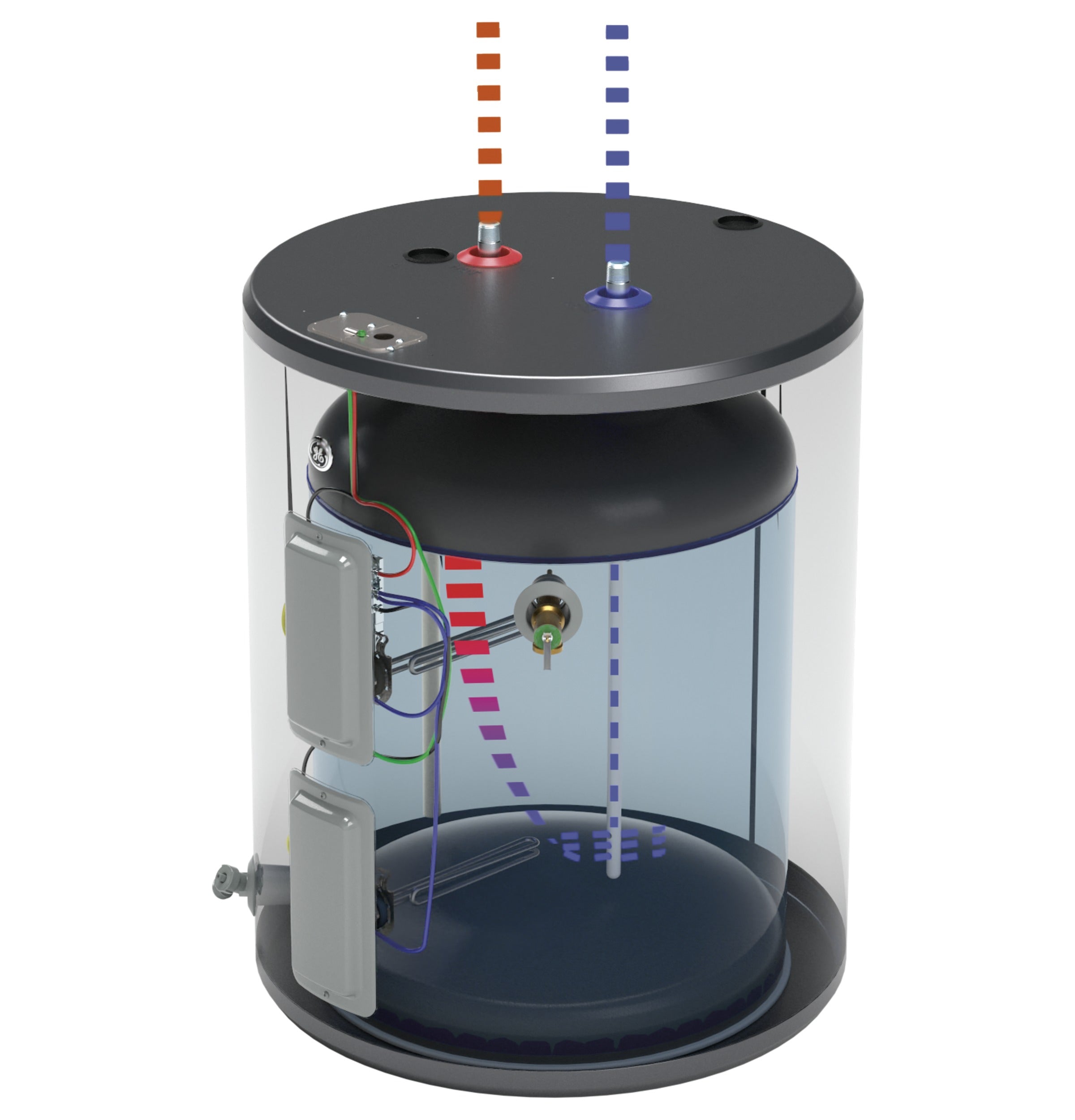

The GE APPLIANCES GE40L08BAM is a water heater that fits where height is a concern. It provides hot water for a family of 2 to 4 people. Two 5500W heating elements quickly increase water temperature. It replenishes water from the bottom of the tank to maximize hot water delivery.

• Lowboy design
• Easy set up with standard water and electrical connections
• Adjustable thermostat

Product Highlights

This electric thermostat water heater features a rust-proof construction and a brass drain valve for long-lasting service. It has a temperature setting range of 90-150 ° F.

Product Information

Standard Information

• Brand: GE APPLIANCES
• Manufacturer Part Number: GE40L08BAM

Technical Specifications

• Color Appearance: Gray
• Unit Capacity: 40 Gallons
• Configuration: Lowboy
• Control Type: Thermostat
• Drain Valve Type: Brass
• Family Size: 2-4 People
• Foam Insulation: Yes
• Fuel Type: Electric
• GPH Recovery @ 90 Degrees F: 25.1
• Height Description: Low Boy with Top Port
• Installation Location: Indoor
• Insulation Thickness: 2.75 in
• Mobile Home Compatible: No
• Operating Modes: Standard Electric
• Point of Use: No
• Product Type: Electric Thermostat
• Rated Capacity: 36.0 gal
• Rated Storage Capacity: 36
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 90-150 ° F Range Factory Default 120 ° F

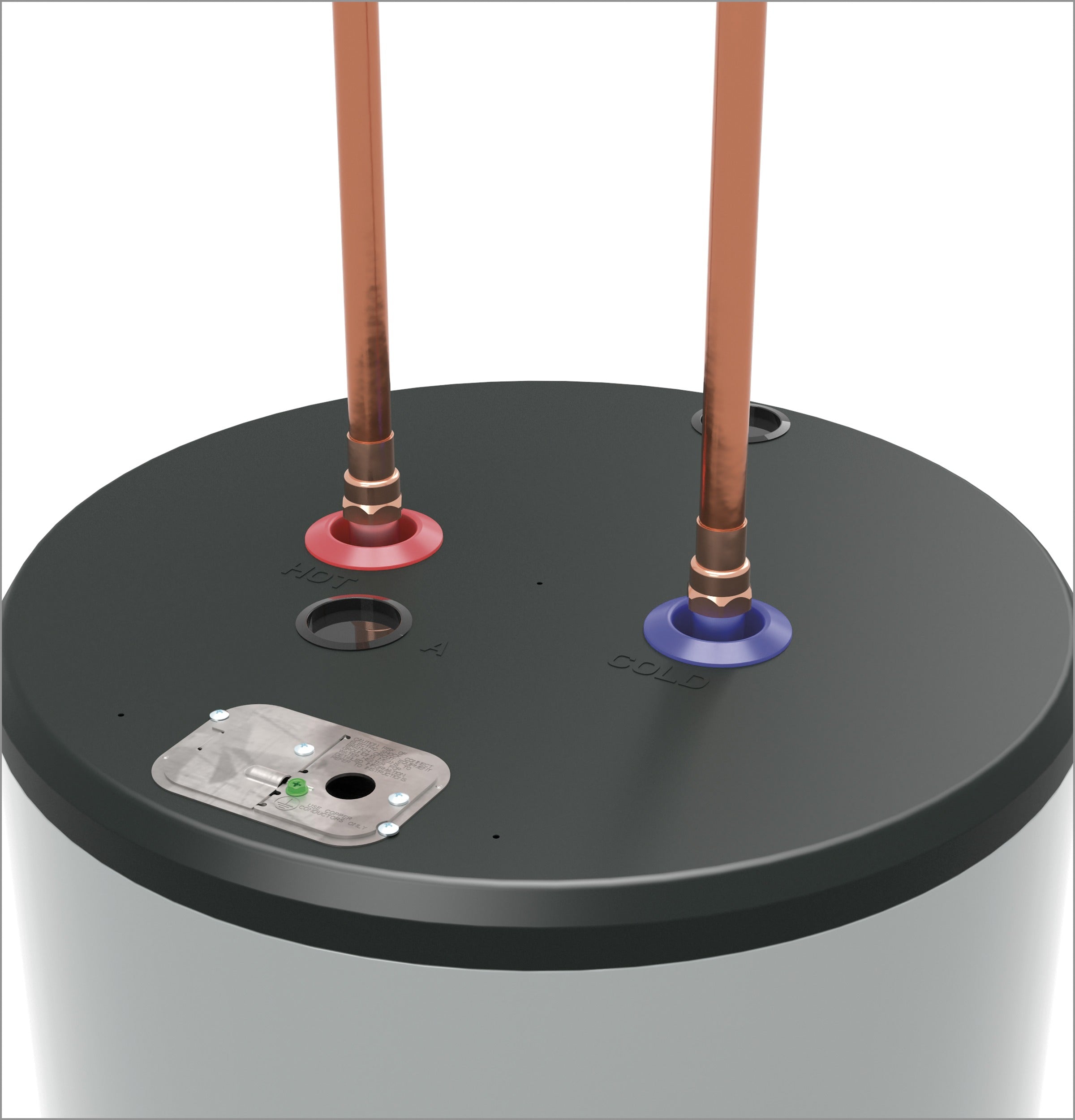

• Water Connection Location: Top
• Electrical Circuit Required: 208V/240V 60 Hz Dedicated 30 Amp Min.
• Electrical Connection: Direct-Wire
• Energy Consumption (kWh/year): 3531
• First Hour Rate (FHR): 61 Gallons
• Heating - Electric - Heater Watts: 5500/5500
• Integrated Energy Factor: 0.92
• Operating Water Pressure: 20-125 PSI
• Voltage (MAX): 240 V
• Volts/Hertz: 240V; 60Hz
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Net Weight: 135 lb
• Overall Depth: 27 in
• Overall Height: 32.75 in
• Overall Width: 27 in
• Product Diameter: 27 in
• Product Height (to top of unit): 32.75 in
• Product Height (to top of water inlet/outlet connections): 34.25 in
• Power Rating: 5500 W
• Tank Capacity: 40 Gal
• Type: Upright
• Voltage Rating: 240V
