Product Description
The GE APPLIANCES CDD420P2TS1 CAFÉ™ Dishwasher features double drawers that can be used independently with separate cycles. Its customizable design allows for a unique appearance. This energy efficient dishwasher has two special settings for conserving resources, including a guilt-free small load setting and an Eco-Cycle designed to consume less energy and water.

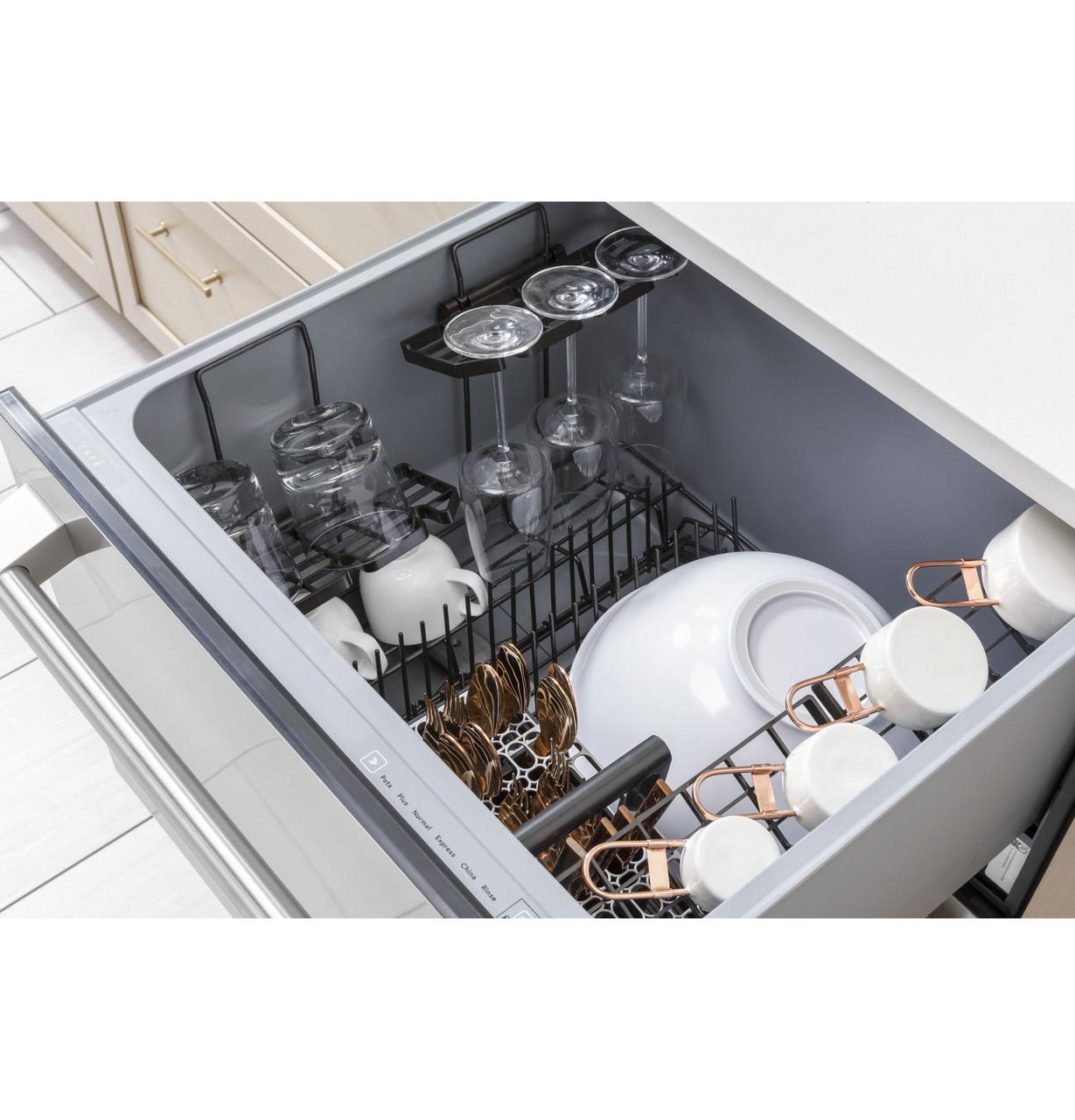

Double Drawer
Create a Look That Matches Your Personal Style
Small Load Setting
Product Highlights
This dishwasher offers convenience with its double drawer design, customizable appearance, and energy-saving features.
Product Information
Standard Information
Brand : GE APPLIANCES
Manufacturer Part Number : CDD420P2TS1
Technical Specifications
Accessories
Optional Kits
CXQD2H2PNBT - Brushed Black
CXQD2H2PNBZ - Brushed Bronze
CXQD2H2PNCU - Brushed Copper
CXQD2H2PNSS - Brushed Stainless
CXQD2H2PNCG - Brushed Brass
CXQD2H2PNFB - Flat Black
Color Appearance
Stainless Steel
Door Appearance
2 Drawer Fronts
Door Style
2 Drawer Fronts
Handle Color
Brushed Stainless
Handle Design
Customizable
Installation
Side Installation or Top Installation Included
Built-Up Floor Capable
Flush Cabinet Installation
Motor Type
Variable Speed, BLDC
Outer Wrap
Full Steel Inclosure
Quiet Package
46 dBA Single/ 49 dBA Double
Active Flood Protection
Active Flood Protect
Additional Protection
Active Flood Protect
Control Type
Top Controls
Cap Touch Controls
3 Touchpads
Dishwasher Control Features
Delay and Lock capabilities, Audible End-of-Cycle Signal; Last Cycle Memory, Non Sanitization Temp Error
Dishwasher Cycles
Pots
Plus
Normal
Express
China
Rinse
Dishwasher Drying Features
Fan Assist Dry
Dishwasher Options
Ultra Dry; Fast; Sanitize; Lock Controls, Delay
Exterior Style
Traditional
Latch
Pull with Handle; Interior lid closes during cycle
Leveling System
4 Leveling Legs
4 Utility Shelves; 2 with StemSafe
Fold Down Tines
Silverware Basket with cell covers
Lower drawer fits 10-1/2 inch plates
Number of Place Settings
14
Rack Features
Ball-Tipped Tines
Full Extension Slides
2 long and 2 short articulating plastic utility shelves w/Stemsafe; Fold Down and Adjustable Tines; 2 piece Silverware Basket
Racking System
2 Racks with 4 Cup Shelves
Style
Built-In Top Control
Tub and Door Liner
Gray Plastic
Wash Arms
2 Total, 1 per Drawer
Wash System
2 completely independent wash systems
Wash System Features
Single pump per system (identical per drawer); Water and Prime regulator for efficiency
Automatic Temperature Control
Water Filtration System
100% Filtration
WiFi Connect
Built-In
Calrod Heater Watts
503
Electrical Requirements
120V ; 60Hz ; 9.4A
Energy Consumption (kWh/year)
Power Connection
Power Cord - Included
Volts/Hertz/Amps
120V ; 60Hz ; 9.4A
Cutout Depth (in)
22.0625
Depth with Door Open
21.5625 in
Depth Without Handle
22.5625 in
Height w/ Legs Retracted - Minimum Height
34 in
Height w/Legs Extended - Maximum Height
36.375 in
Overall Depth with Handle
25.1875 in
